Basic Inspection

Clean the disassembled parts with a cloth, and check for wear, damage, or any other faults. If necessary, repair or replace faulty parts.

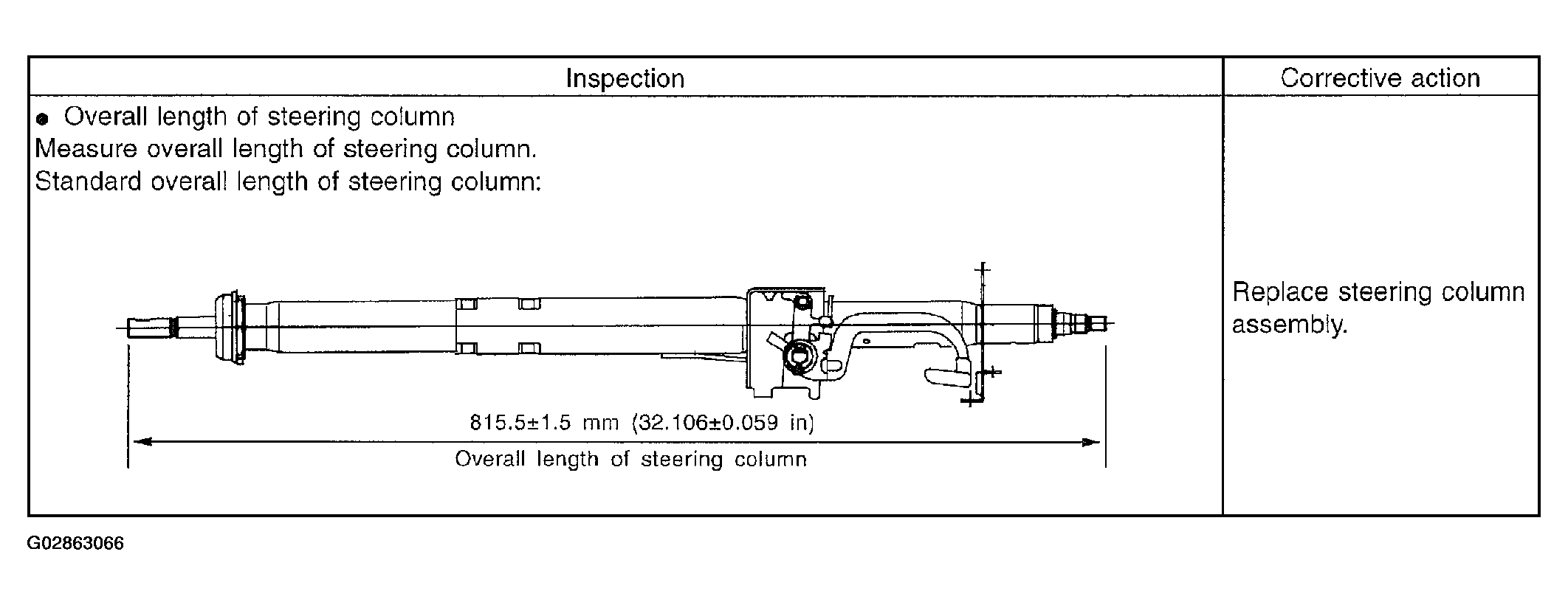

Fig 1: Measuring Overall Length Of Steering Column
G02863066Courtesy of SUBARU OF AMERICA, INC.
