Universal Joint: Inspection

Clean the disassembled parts with a cloth, and check for wear, damage, or any other faults. If necessary, repair or replace faulty parts.

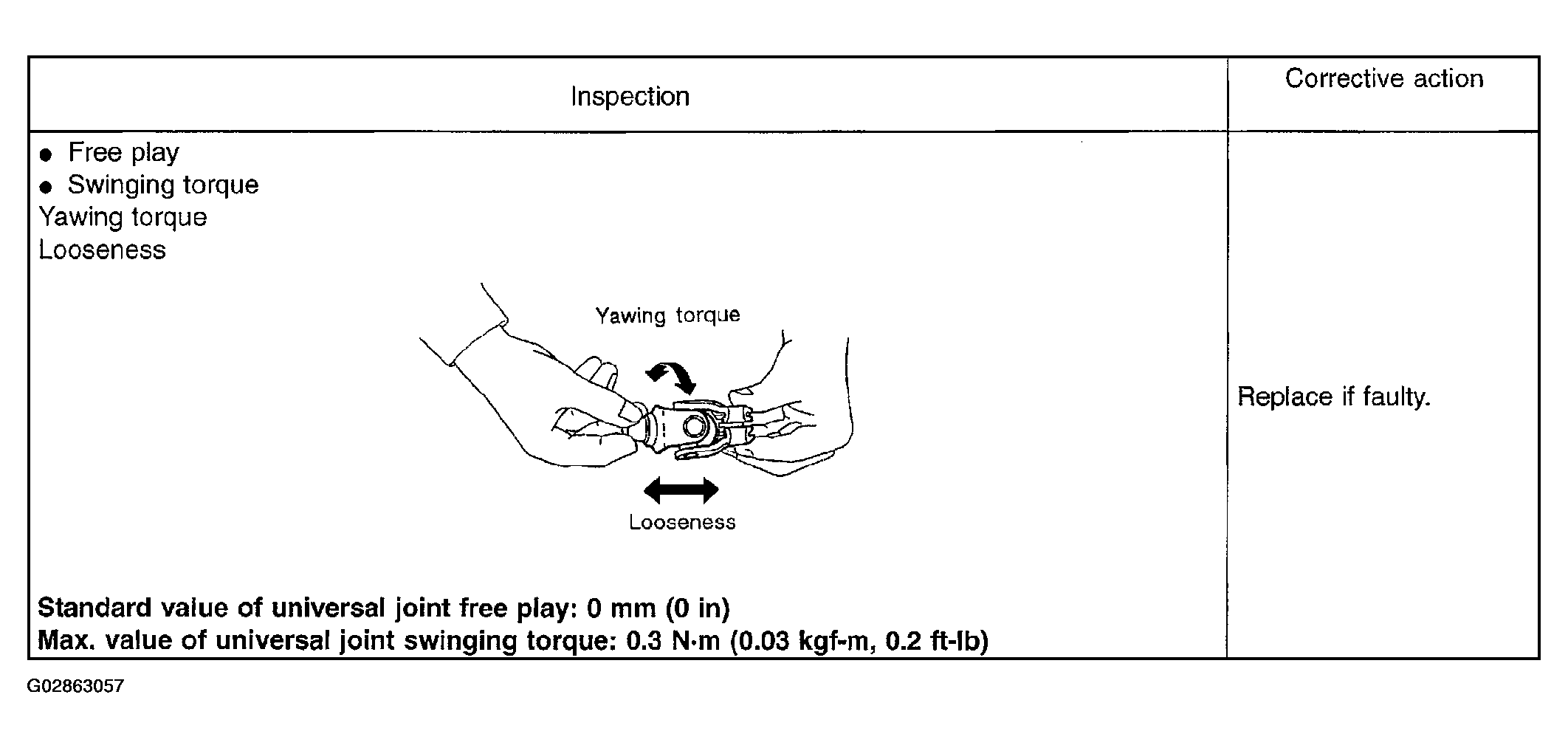

Fig 1: Inspecting Yawing Torque Of Universal Joint

Courtesy of SUBARU OF AMERICA, INC.

Measurement of folding torque of universal joint is as shown in the figures.

Service limit:

1. Maximum load;  5.49 N (0.56 kgf, 1.23 lb) or less

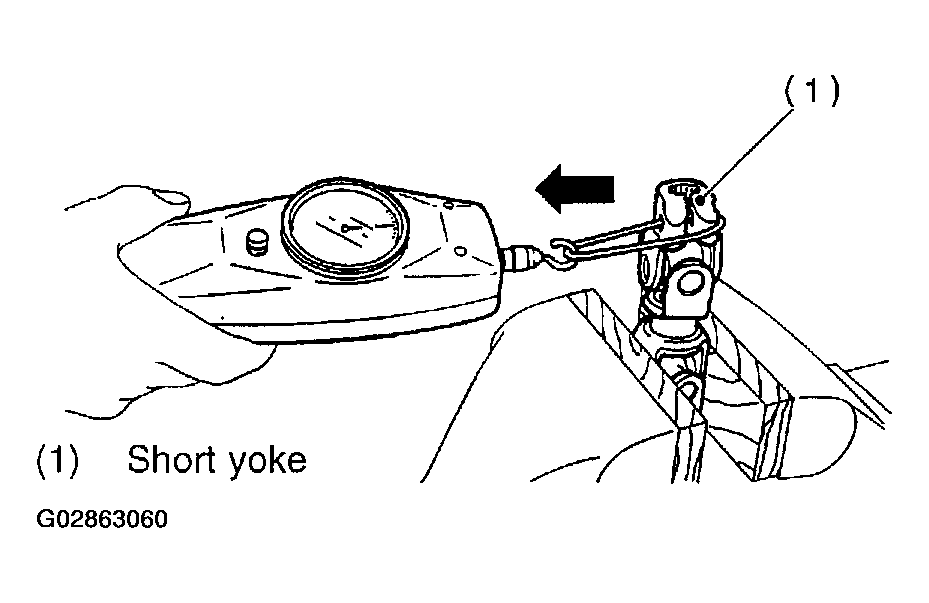

Fig 2: Measuring Of Folding Torque Of Universal Joint

Courtesy of SUBARU OF AMERICA, INC.

Service limit:

1. Maximum load;  5.49 N (0.56 kgf, 1.23 lb) or less

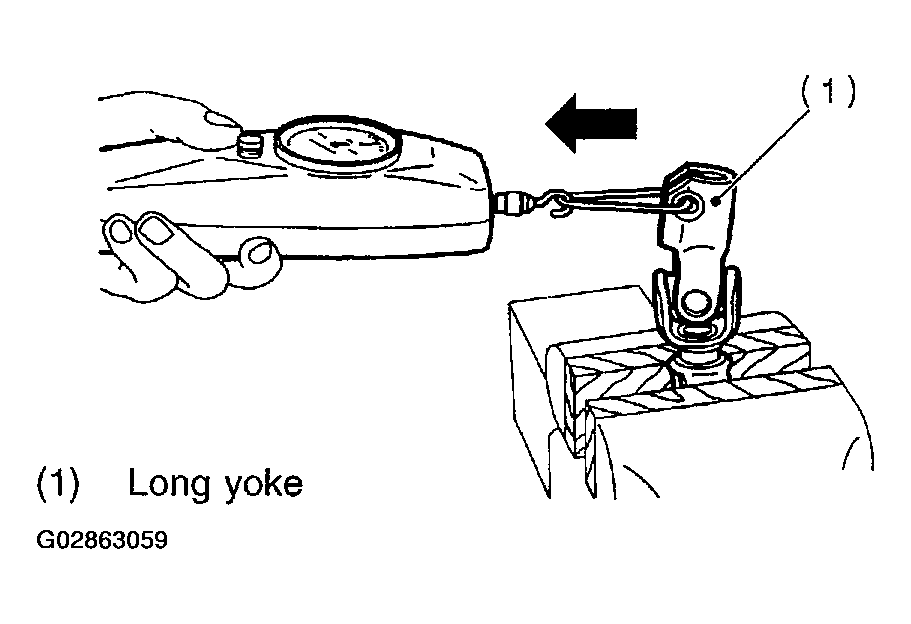

Fig 3: Measuring Of Folding Torque Of Universal Joint

Courtesy of SUBARU OF AMERICA, INC.

Service limit:

1. Maximum load;  8.43 N (0.86 kgf, 1.90 lb) or less

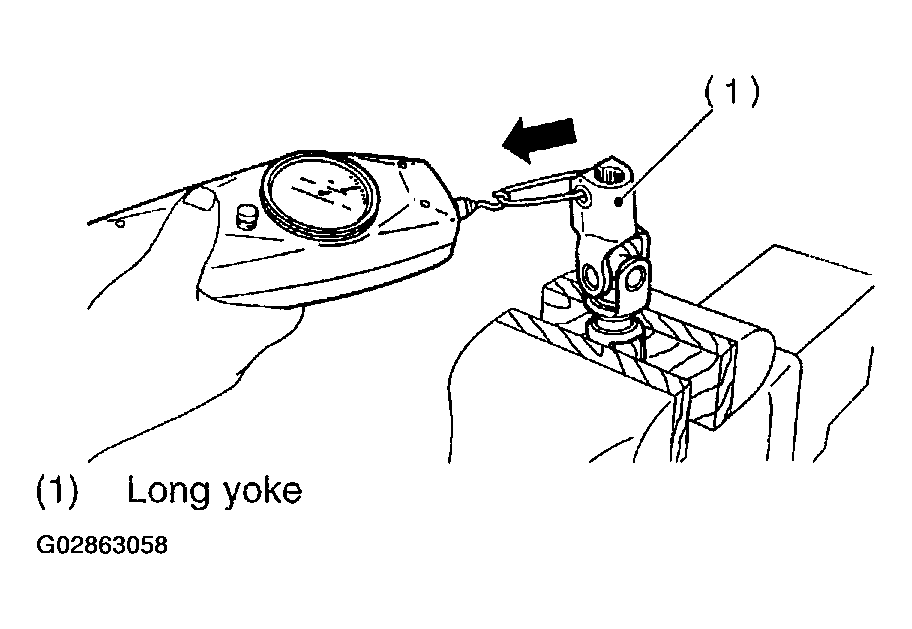

Fig 4: Measuring Of Folding Torque Of Universal Joint

Courtesy of SUBARU OF AMERICA, INC.

Service limit:

1. Maximum load;  8.43 N (0.86 kgf, 1.90 lb) or less

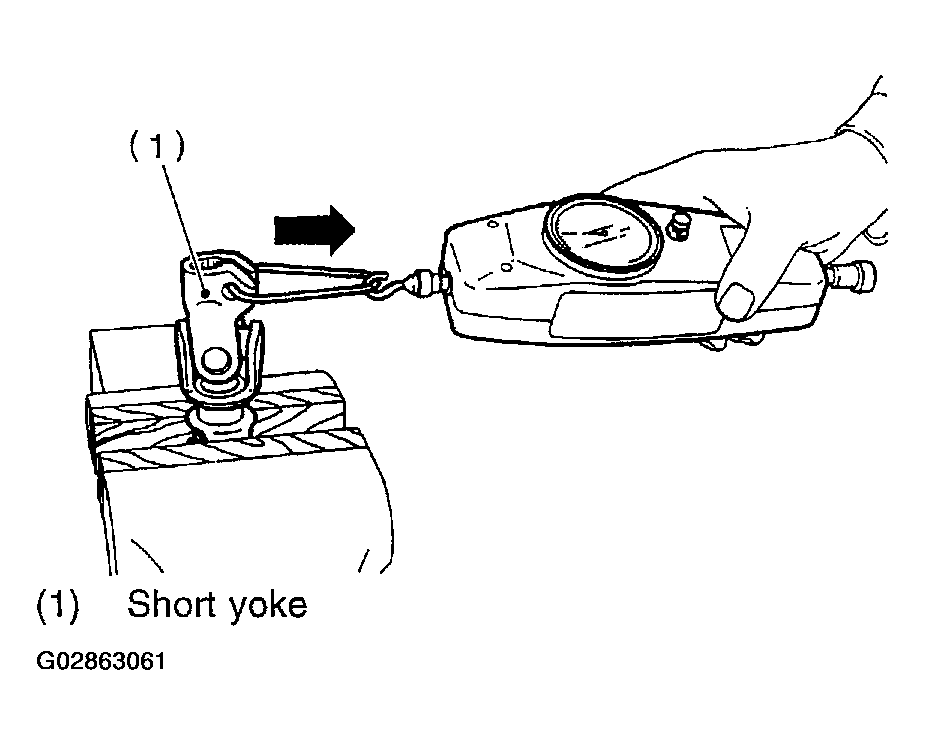

Fig 5: Measuring Of Folding Torque Of Universal Joint

Courtesy of SUBARU OF AMERICA, INC.
