At Select Lever

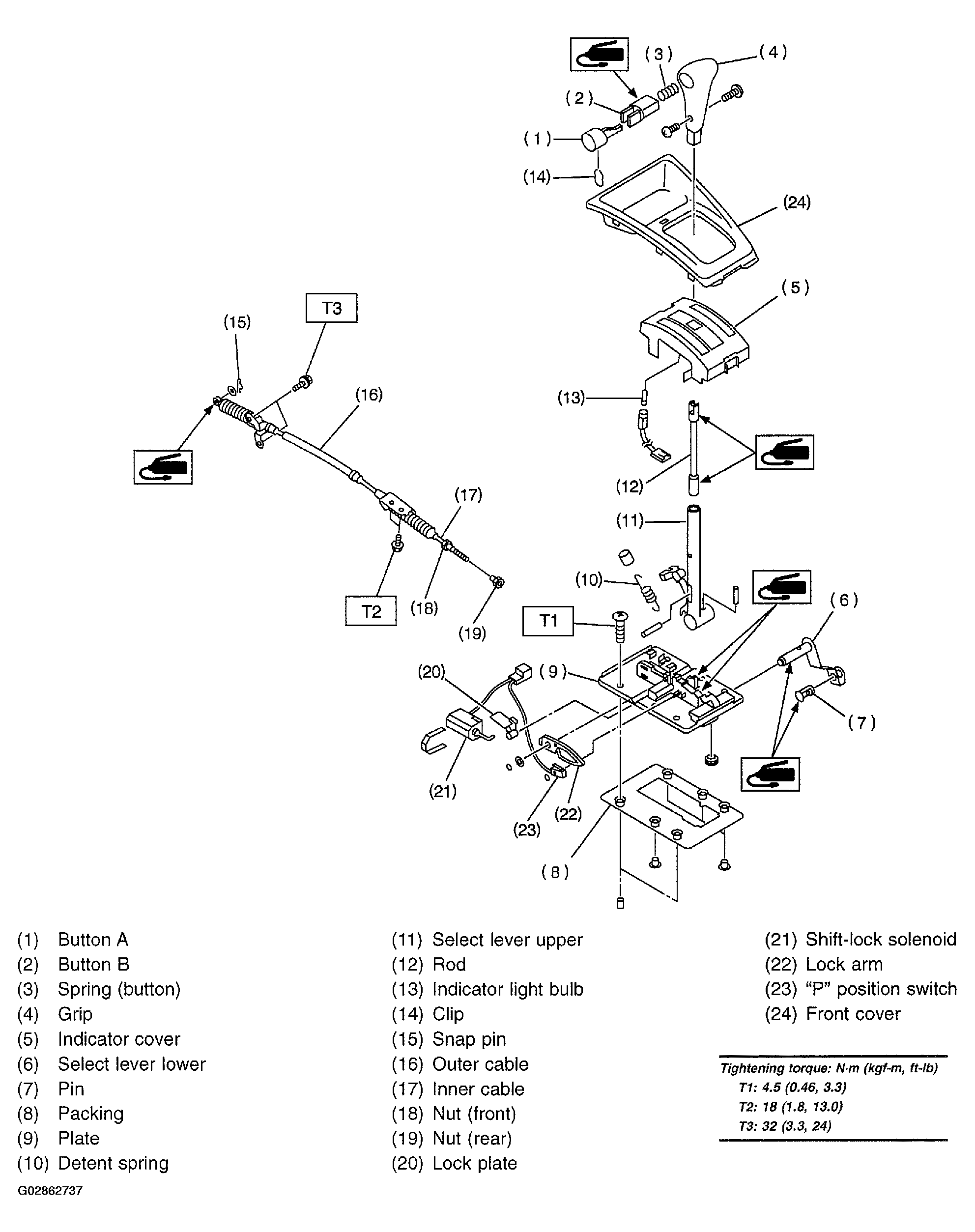

Fig 1: Identifying AT Select Lever Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
