AT Shift Lock Solenoid and "P" Position Switch: Inspection

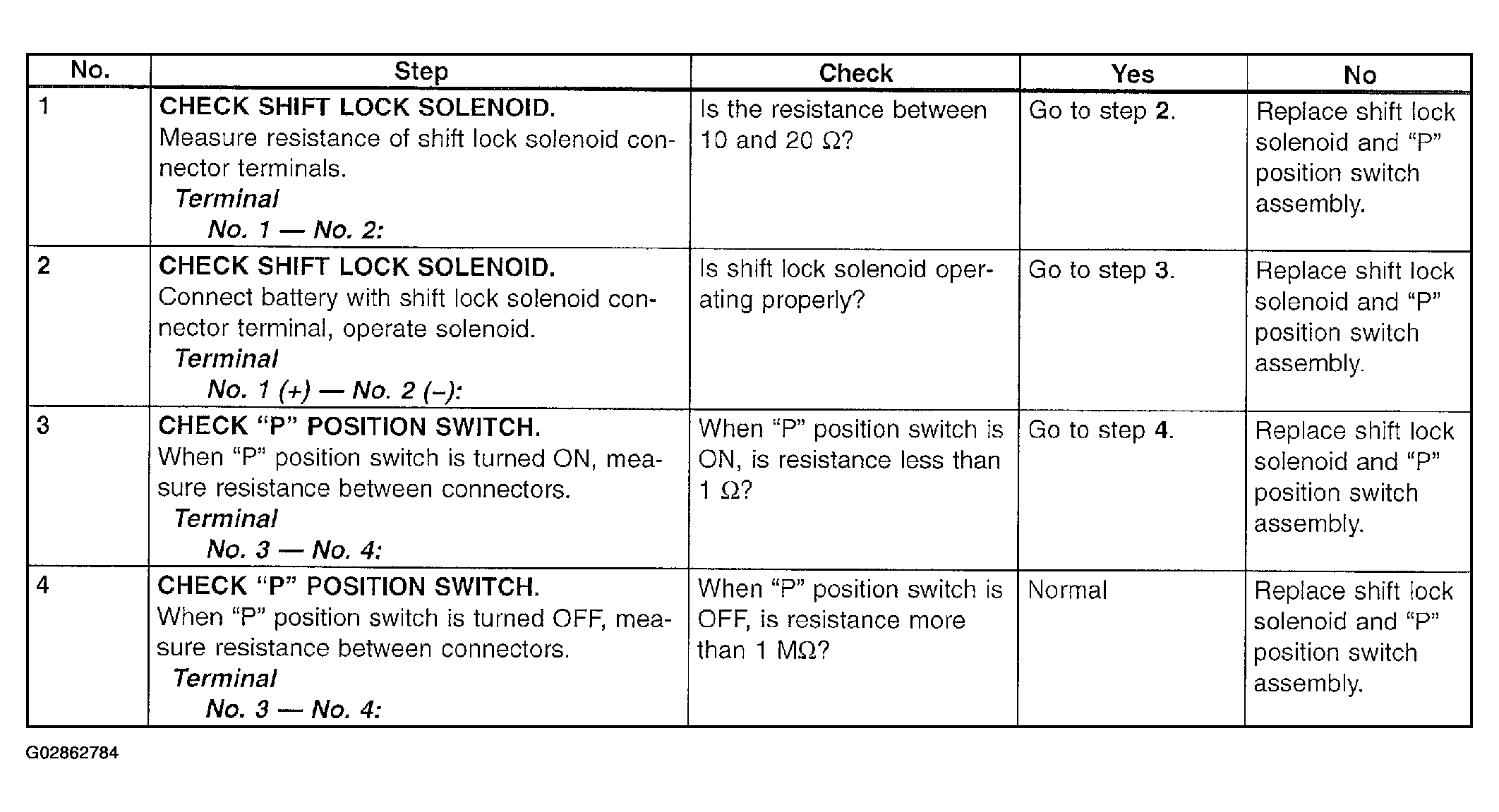

Fig 1: AT Shift Lock Solenoid And "P" Position Switch Inspection Procedure Chart
G02862784Courtesy of SUBARU OF AMERICA, INC.
