Mt Gear Shift Lever

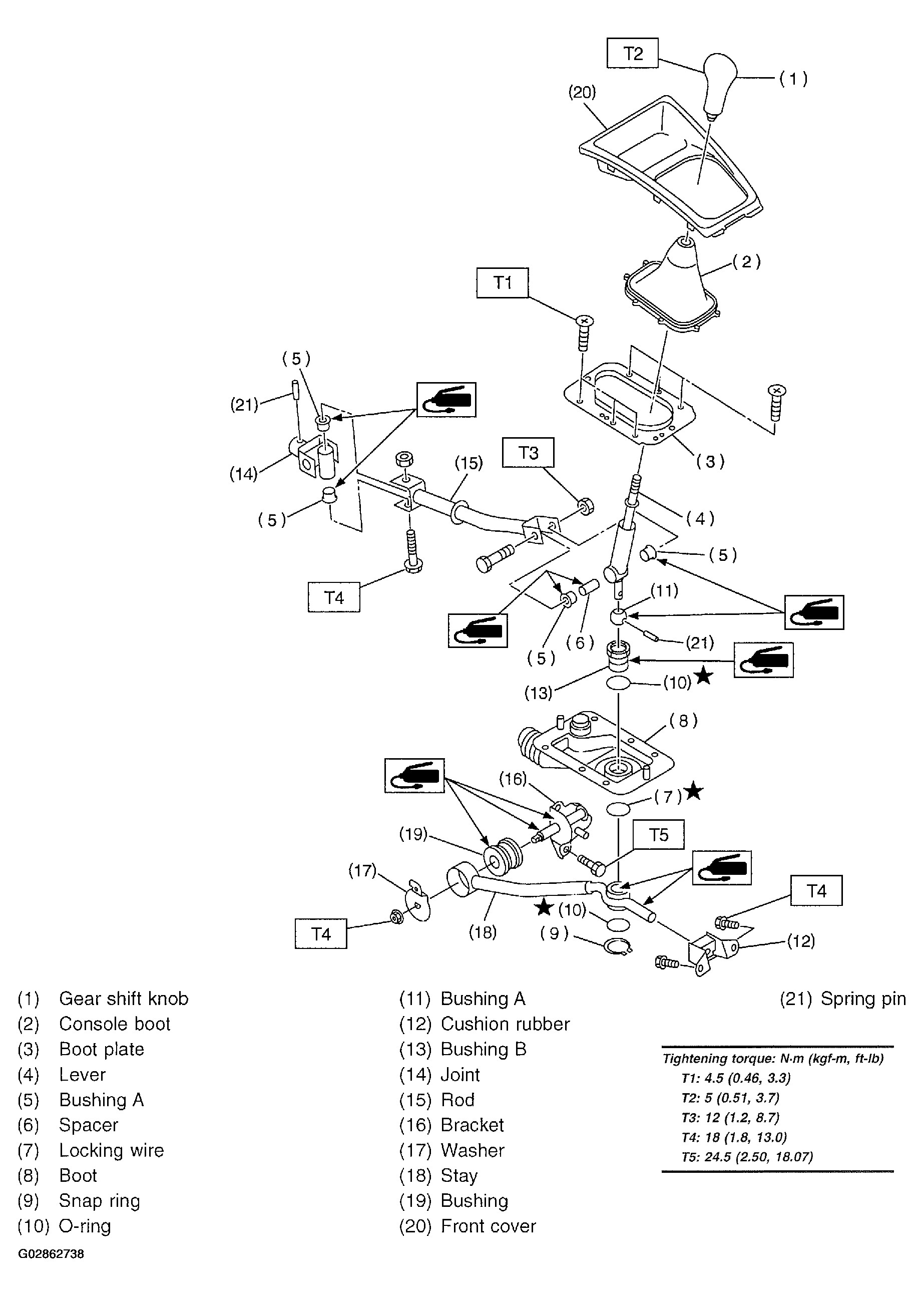

Fig 1: Identifying MT Gear Shift Lever Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
