General Diagnostic: Inspection

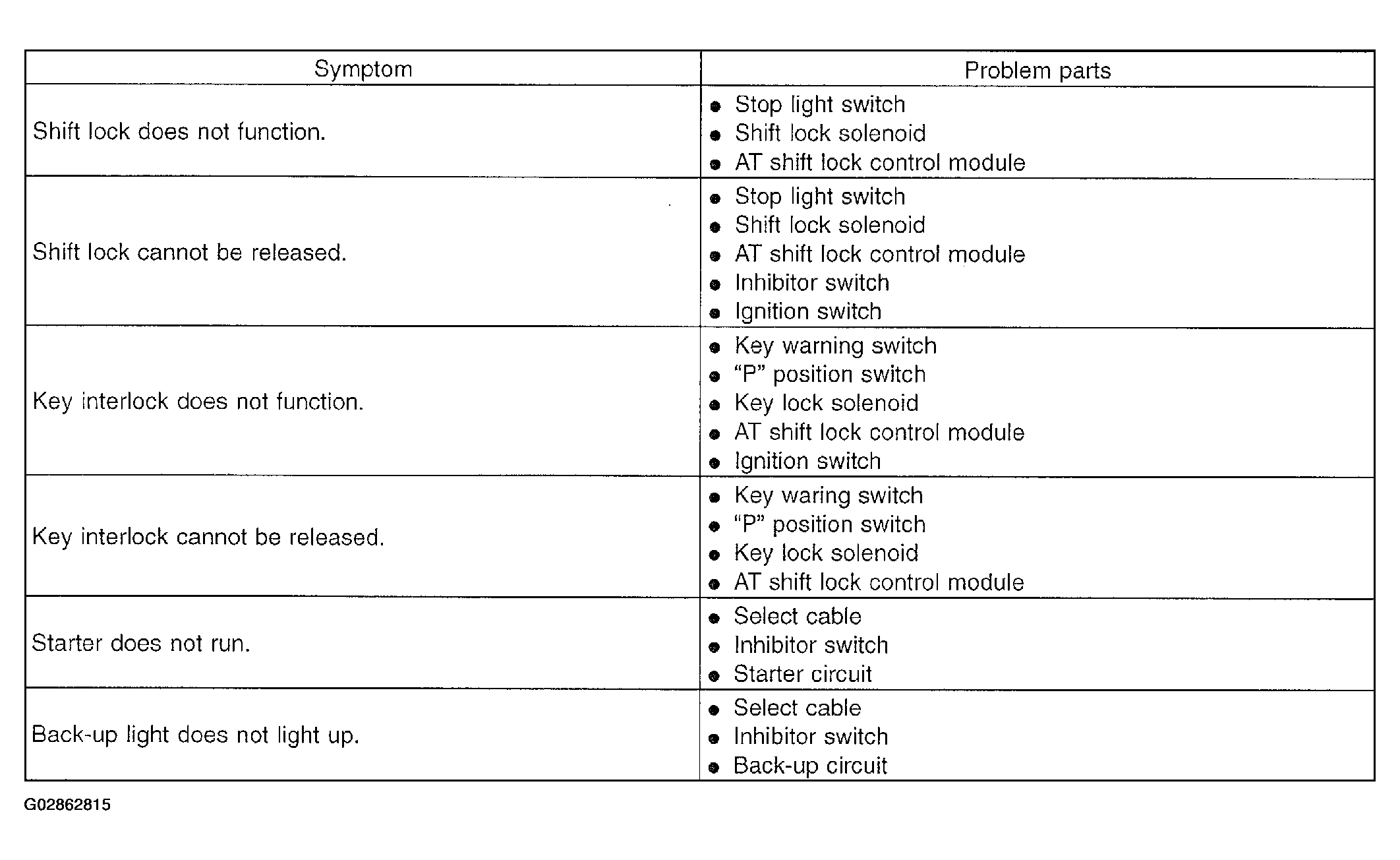

Fig 1: Control System Symptom And Problem Parts Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
