MT Gear Shift Lever: Disassembly

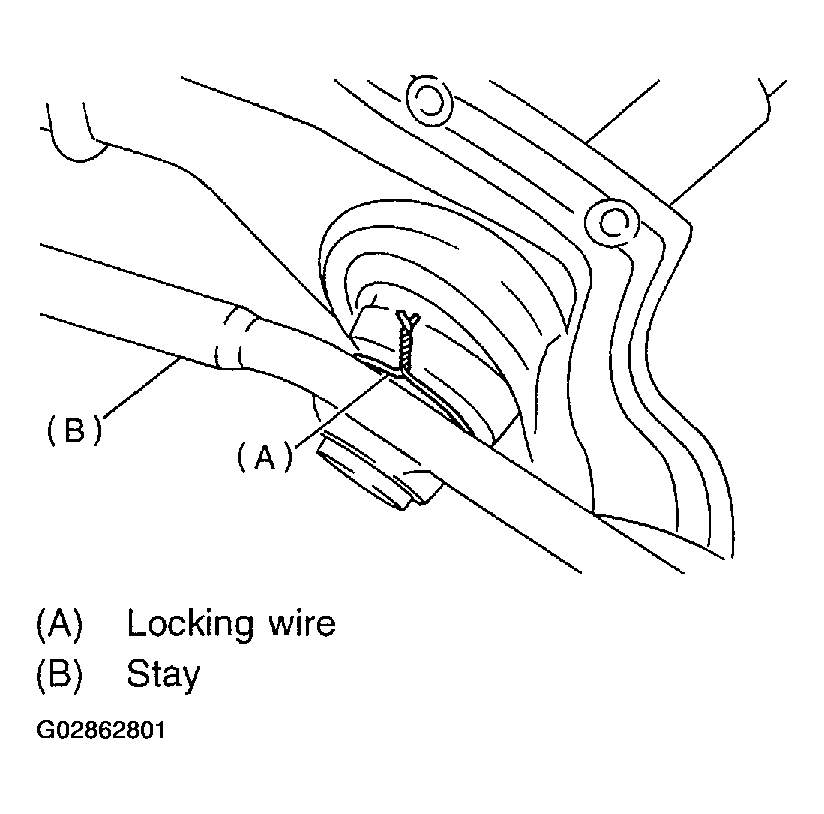

Disassemble locking wire.

Fig 1: Disassembling Locking Wire
Courtesy of SUBARU OF AMERICA, INC.

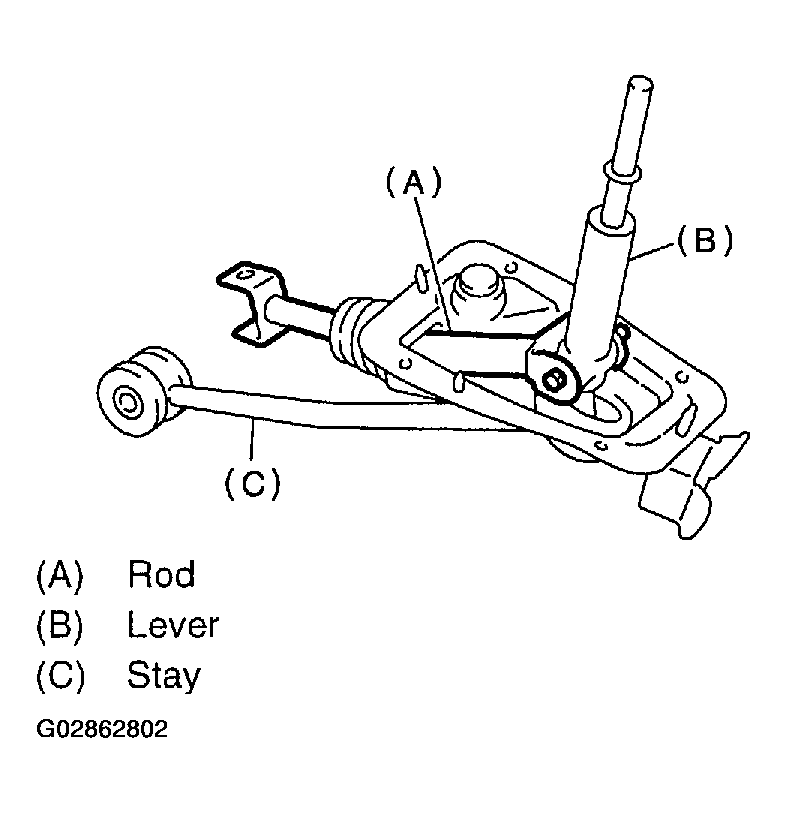

Remove rod from gear shift lever.

Fig 2: Removing Rod From Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.

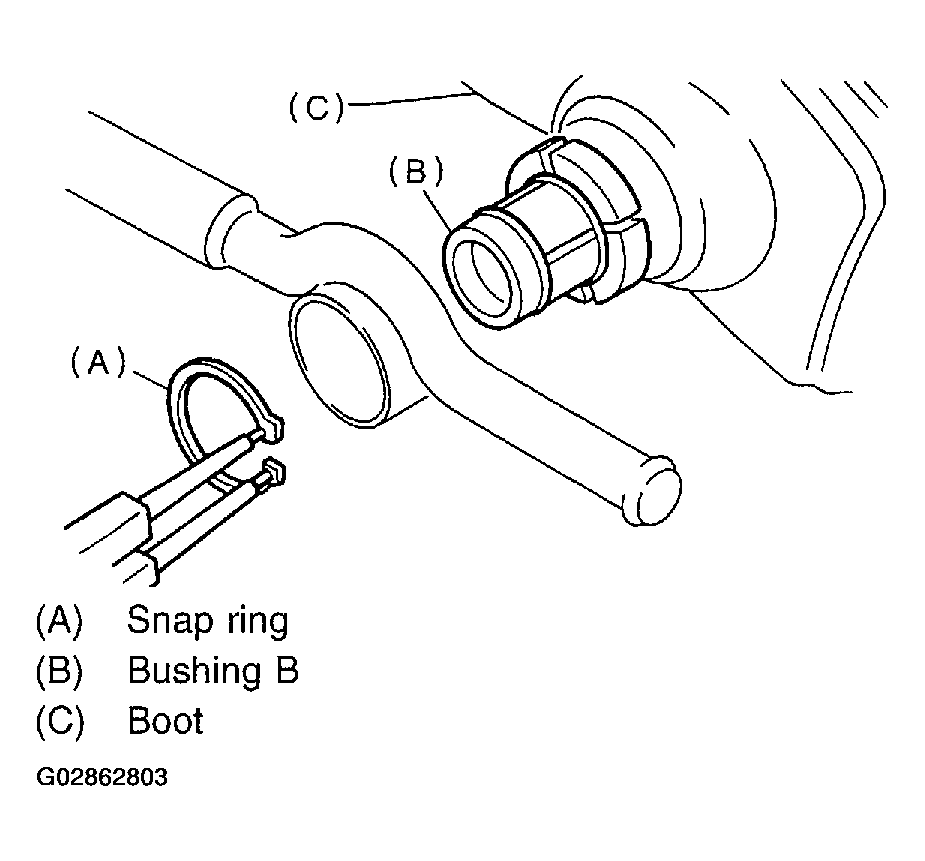

Remove snap ring from bushing D, then disconnect stay.

Fig 3: Removing Snap Ring From Bushing D And disconnecting Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove boot from gear shift lever.

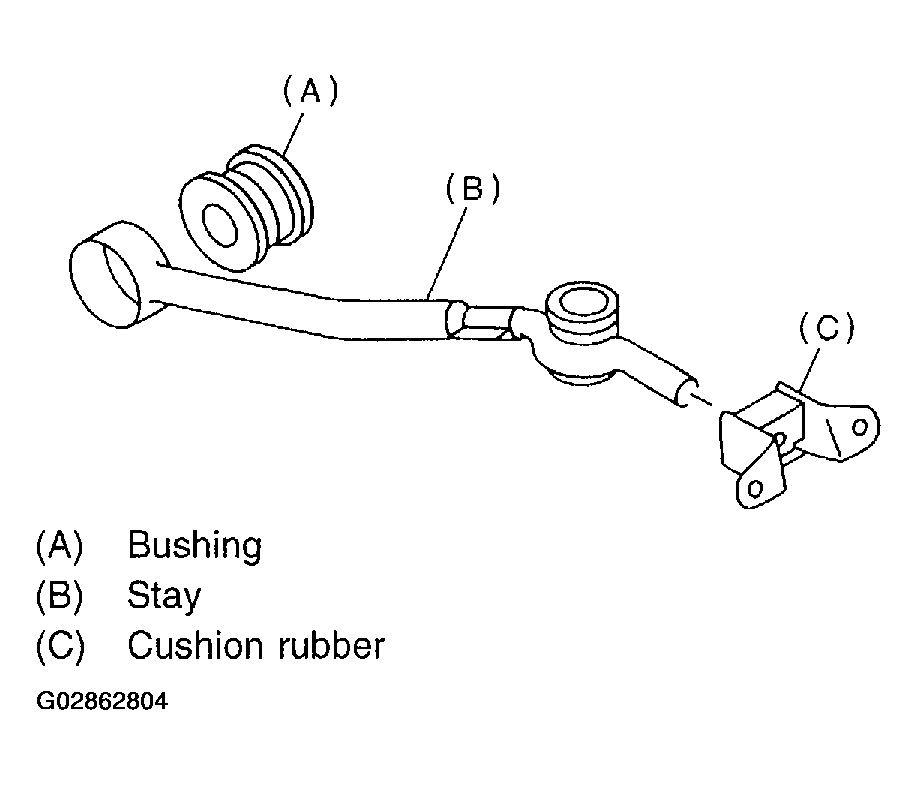

Remove bushing and cushion rubber from stay.

Fig 4: Removing Bushing And Cushion Rubber From Stay
Courtesy of SUBARU OF AMERICA, INC.

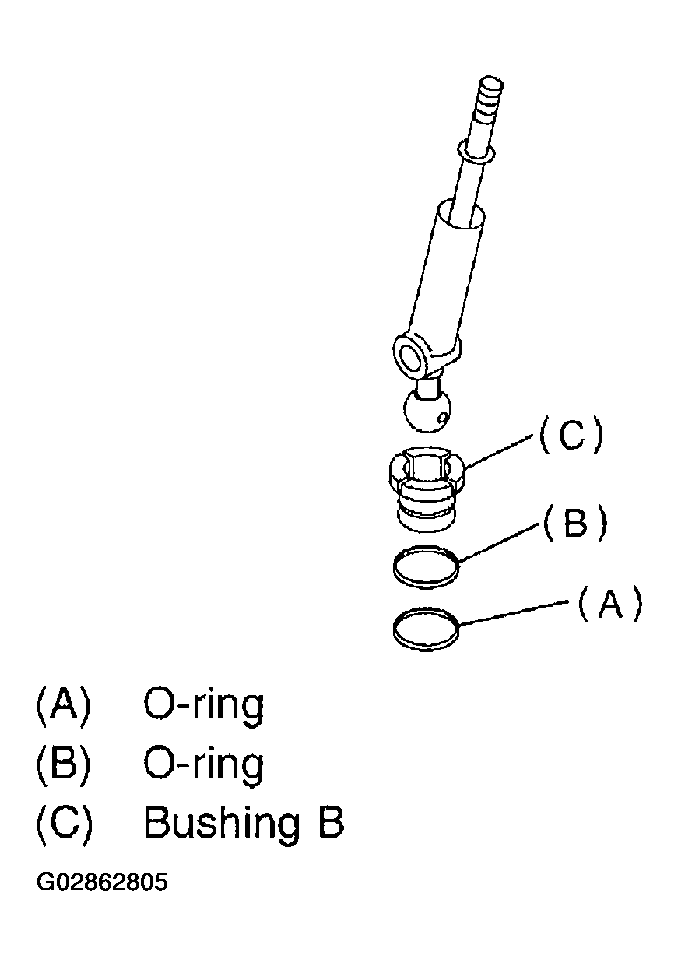

Remove O-ring, then disconnect bushing B.

Fig 5: Removing O-Ring And Disconnecting Bushing B
Courtesy of SUBARU OF AMERICA, INC.

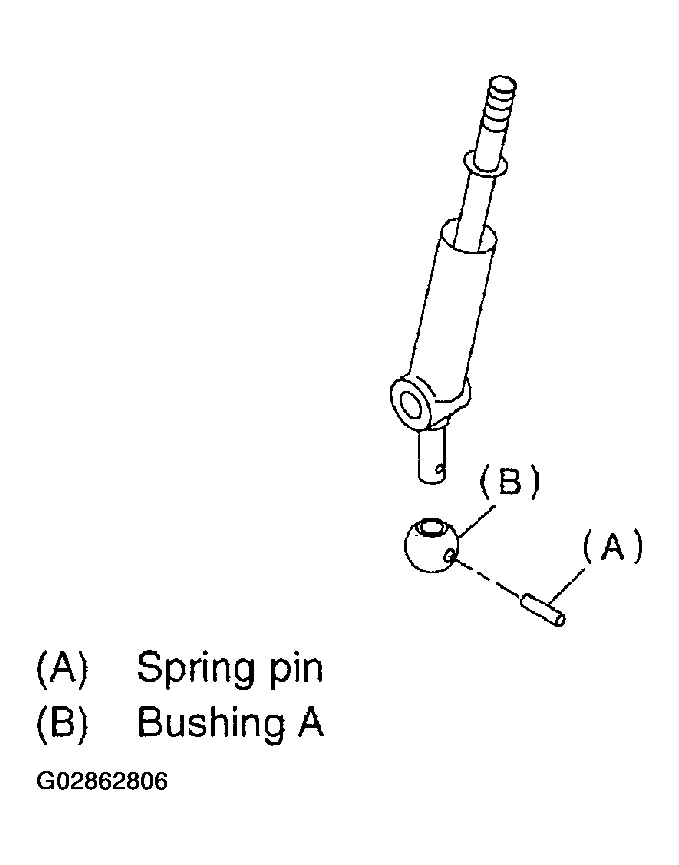

Draw out spring pin, then remove bushing A from gear shift lever.

Fig 6: Drawing Out Spring Pin And Removing Bushing A From Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
