MT Gear Shift Lever: Inspection

Check each part (bushing, cushion rubber, spacer, boot, stay and rod, etc.) for deformation, damage and wear. Repair or replace any defective part. Determine defective parts by comparing with new parts.

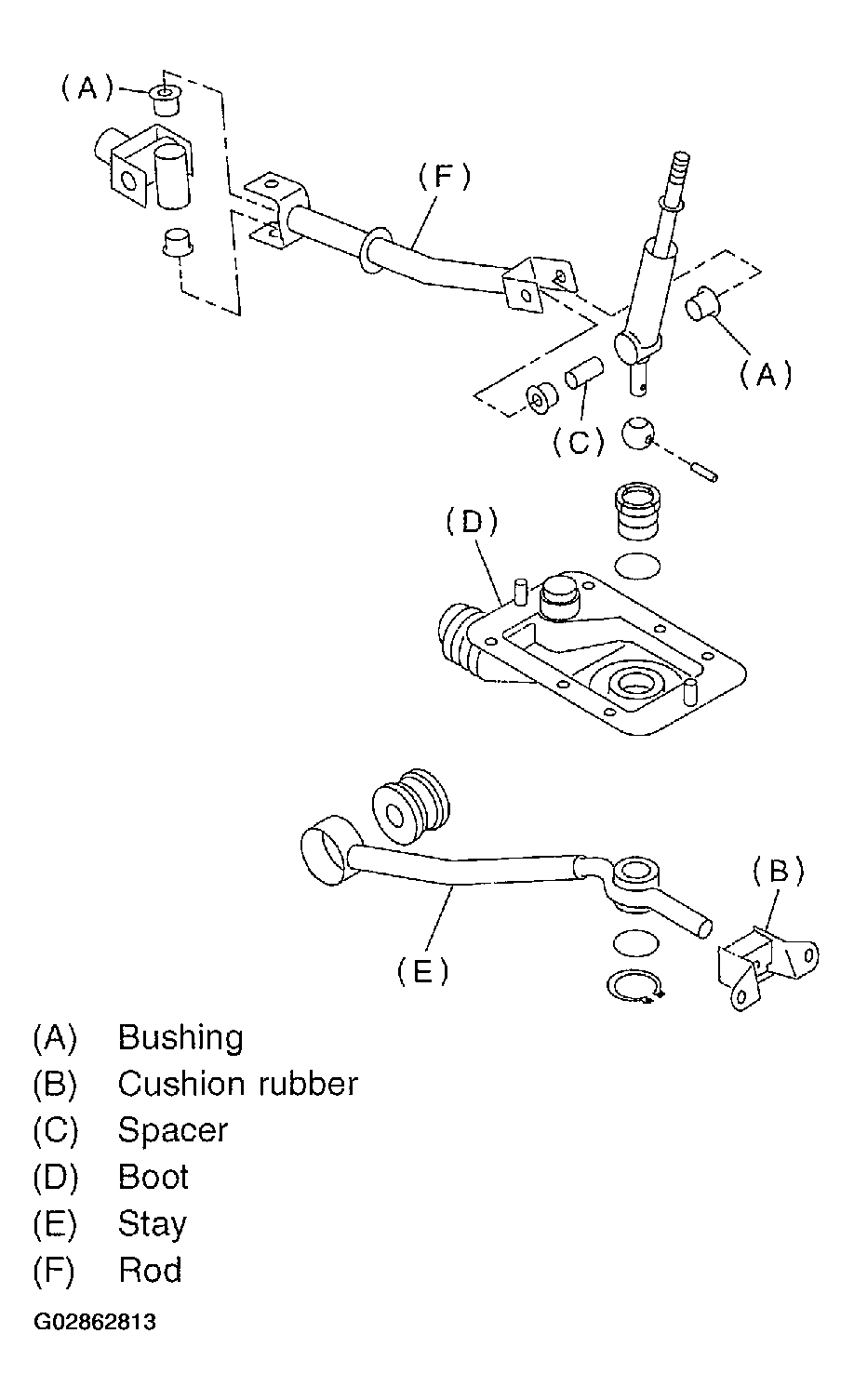

Fig 1: Checking Bushing, Cushion Rubber, Spacer, Boot, Stay And Rod
Courtesy of SUBARU OF AMERICA, INC.
Check the swing torque of the rod in relation of the gear shift lever.
If the torque exceeds the specification, replace bushing or retighten nuts.

Rocking torque: 0.7 N.m (0.07 kgf-m, 0.5 ft-lb) or less

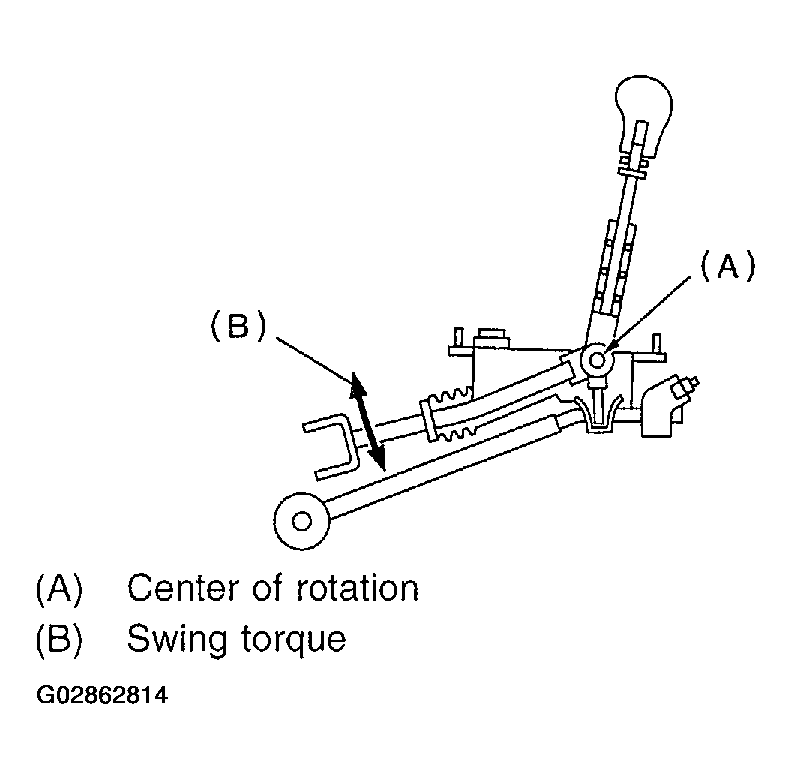

Fig 2: Checking Swing Torque Of Rod In Relation Of Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
