MT Gear Shift Lever: Installation

Install the joint to the transmission and secure with the spring pin.
Insert gear shift lever from room side.
NOTE: After inserting rod and stay, temporarily put them onto transmission mount.

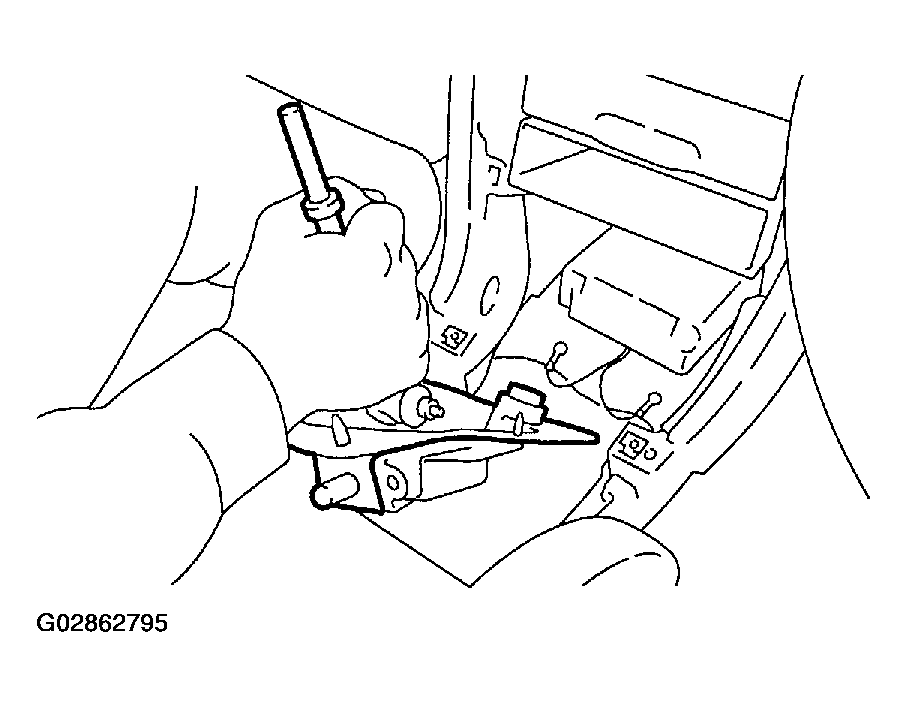

Fig 1: Installing Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Mount cushion rubber on the body.
Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

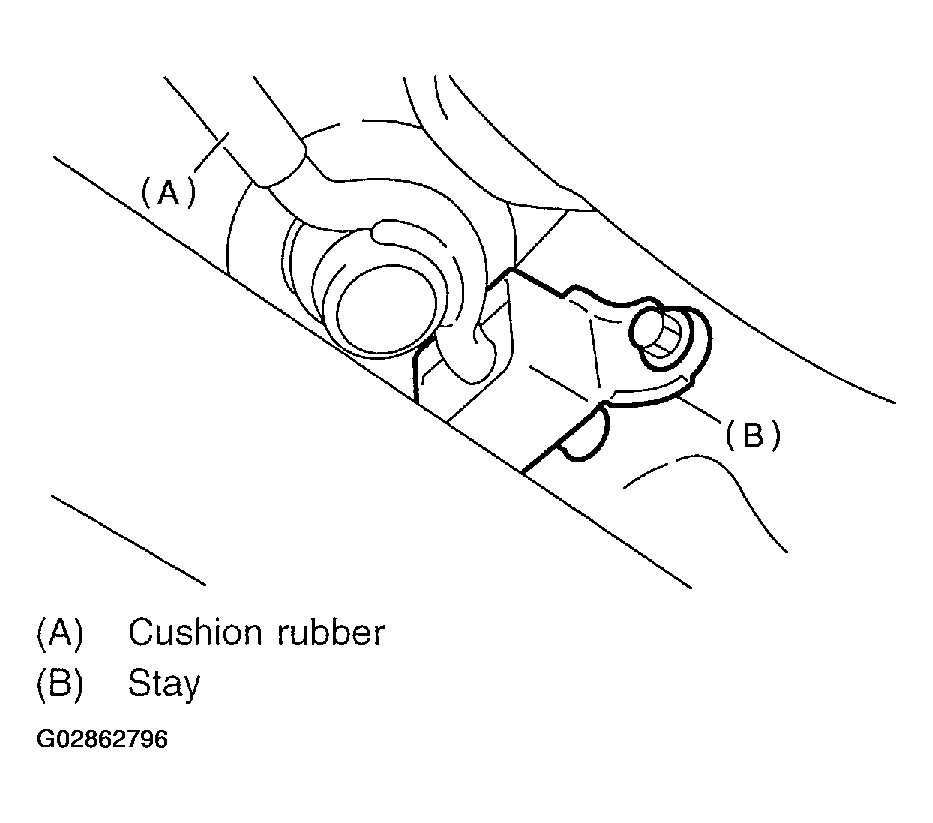

Fig 2: Mounting Cushion Rubber On The Body
Courtesy of SUBARU OF AMERICA, INC.
Connect rod to the joint.
Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

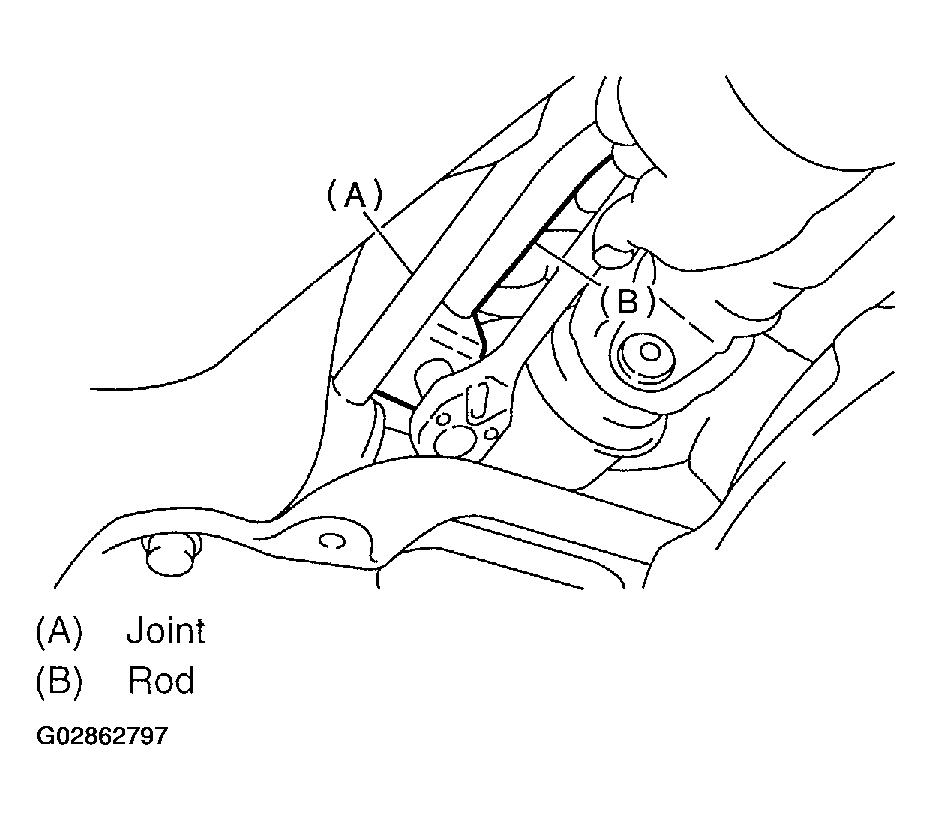

Fig 3: Connecting Rod To Joint
Courtesy of SUBARU OF AMERICA, INC.
Connect stay to transmission bracket.
Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

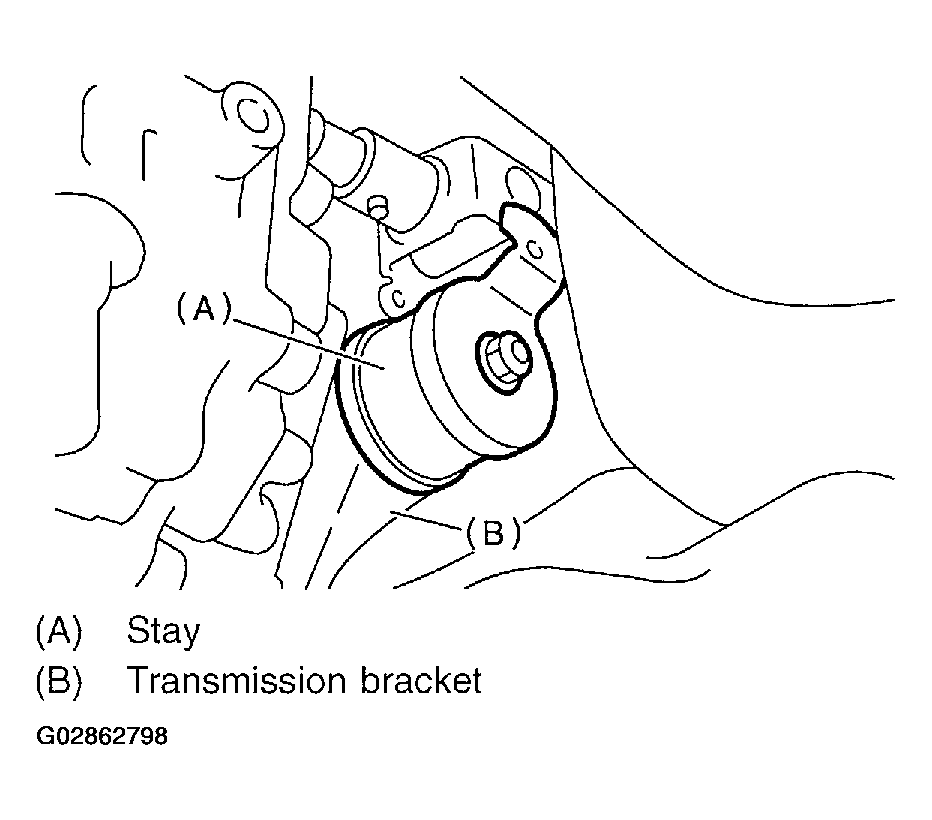

Fig 4: Connecting Stay To Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install heat shield cover.

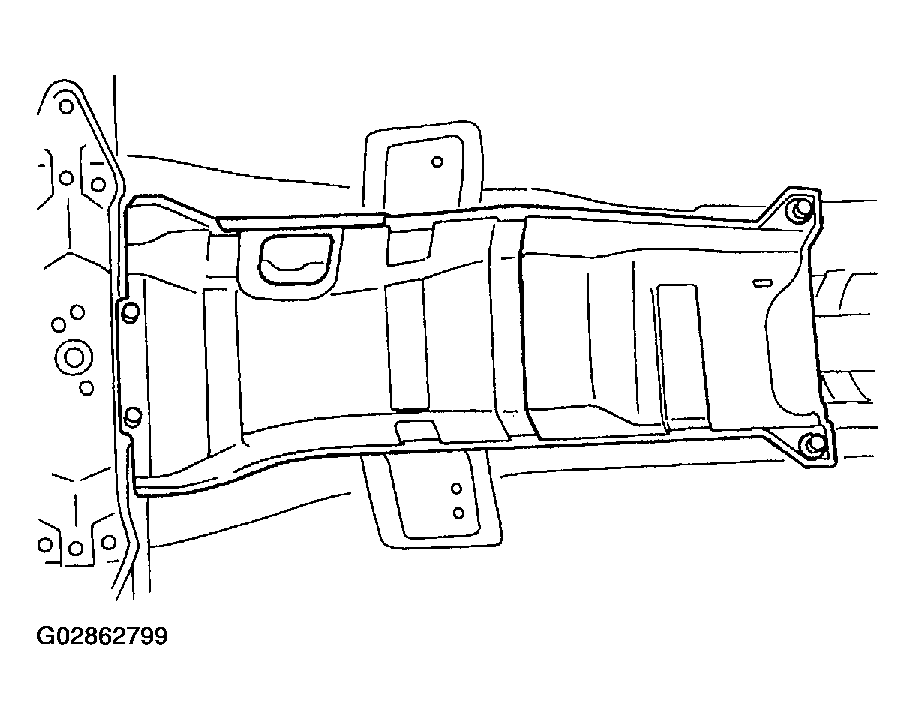

Fig 5: Installing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Install rear exhaust pipe and muffler. Refer to INSTALLATION under REAR EXHAUST PIPE and MUFFLER .
Mount boot plate on body.
Tightening torque: 4.5 N.m (0.46 kgf-m, 3.3 ft-lb)

Fig 6: Installing Boot Plate On Body
Courtesy of SUBARU OF AMERICA, INC.
Install front cover and gear shift knob. Refer to INSTALLATION under CONSOLE BOX .
