MT Gear Shift Lever: Removal

Set the vehicle on the lift.
Remove gear shift knob.
Remove front cover. Refer to REMOVAL under CONSOLE BOX .
Remove boot plate from body.

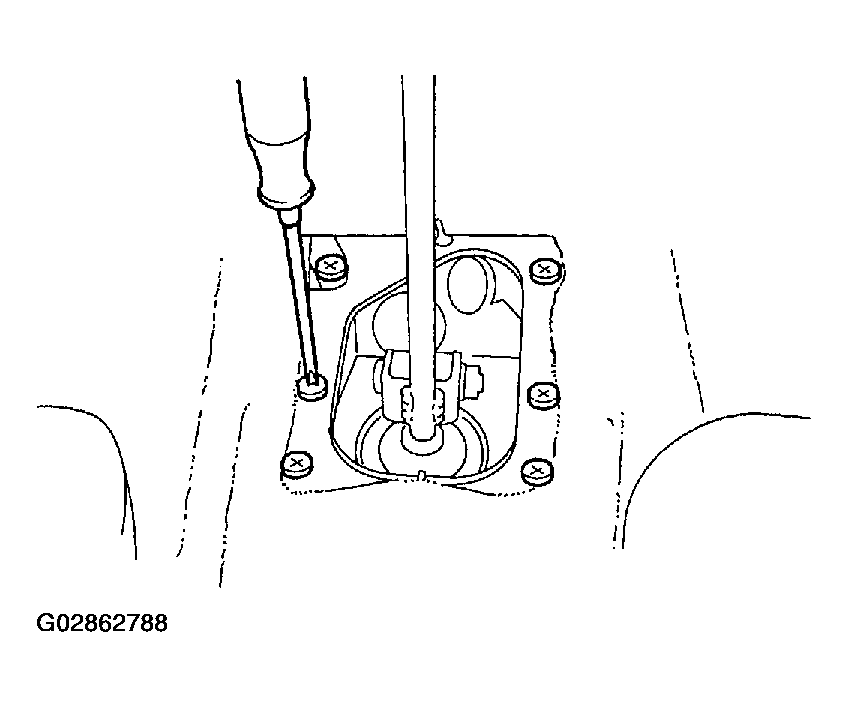

Fig 1: Removing Boot Plate From Body
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove rear exhaust pipe and muffler. Refer to REMOVAL under REAR EXHAUST PIPE and MUFFLER .
Remove heat shield cover.

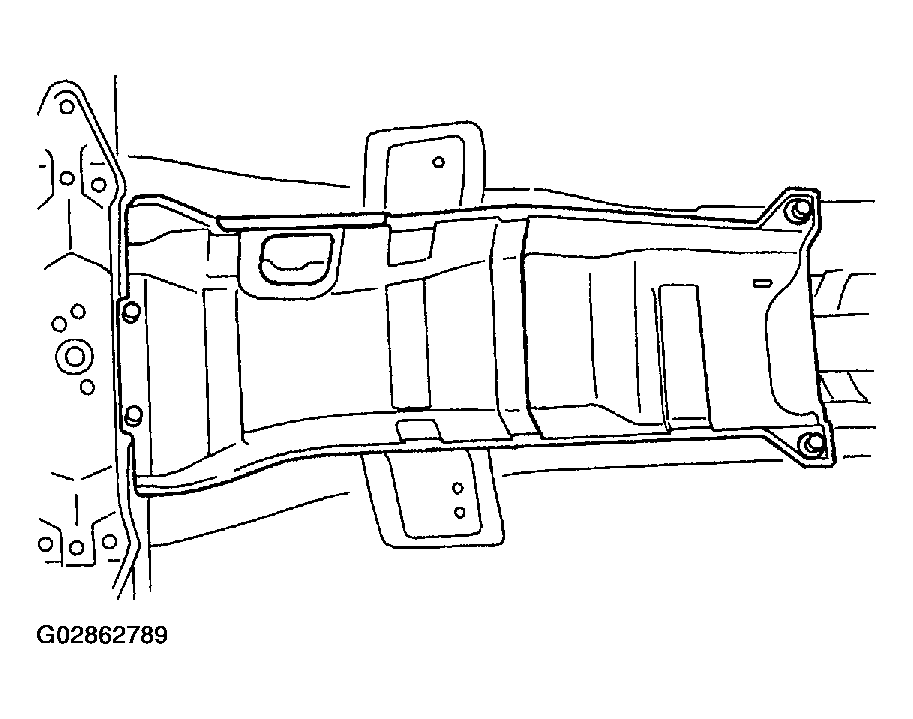

Fig 2: Removing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove stay from transmission bracket.

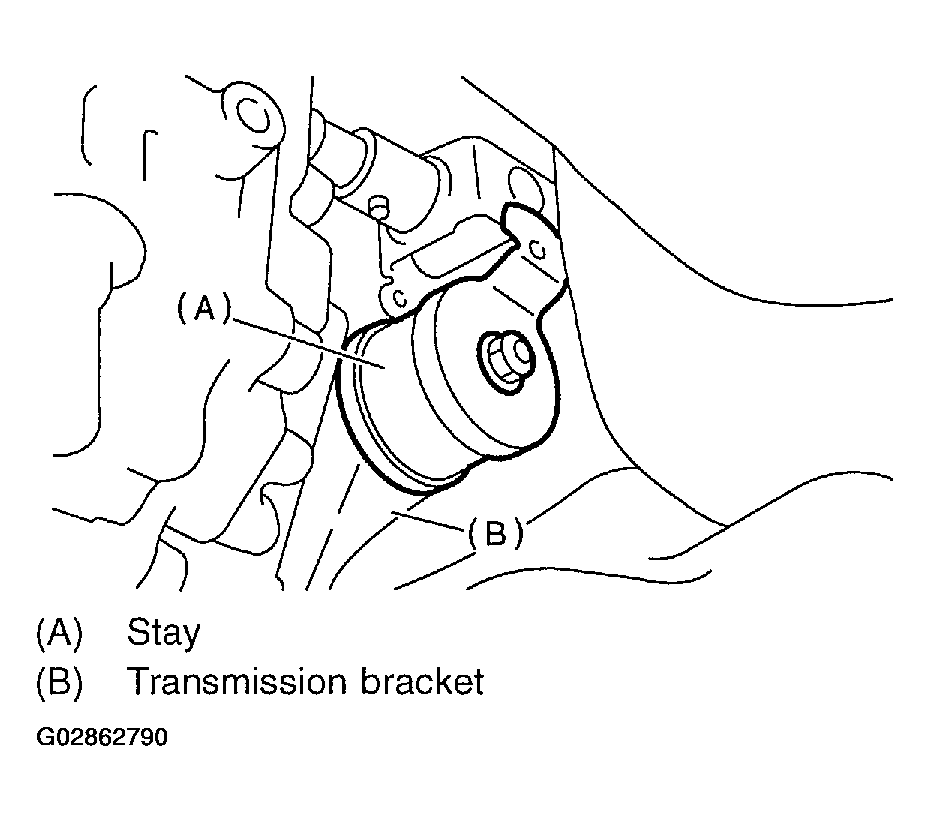

Fig 3: Removing Stay From Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove rod from joint.

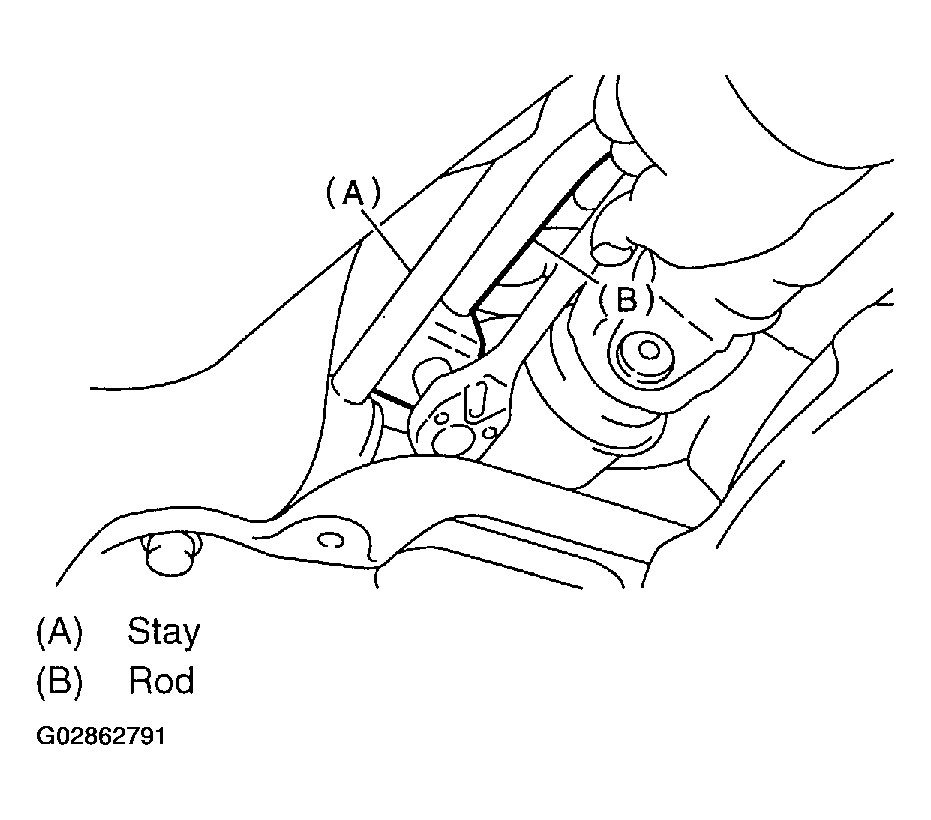

Fig 4: Removing Rod From Joint
Courtesy of SUBARU OF AMERICA, INC.
Remove cushion rubber from body.

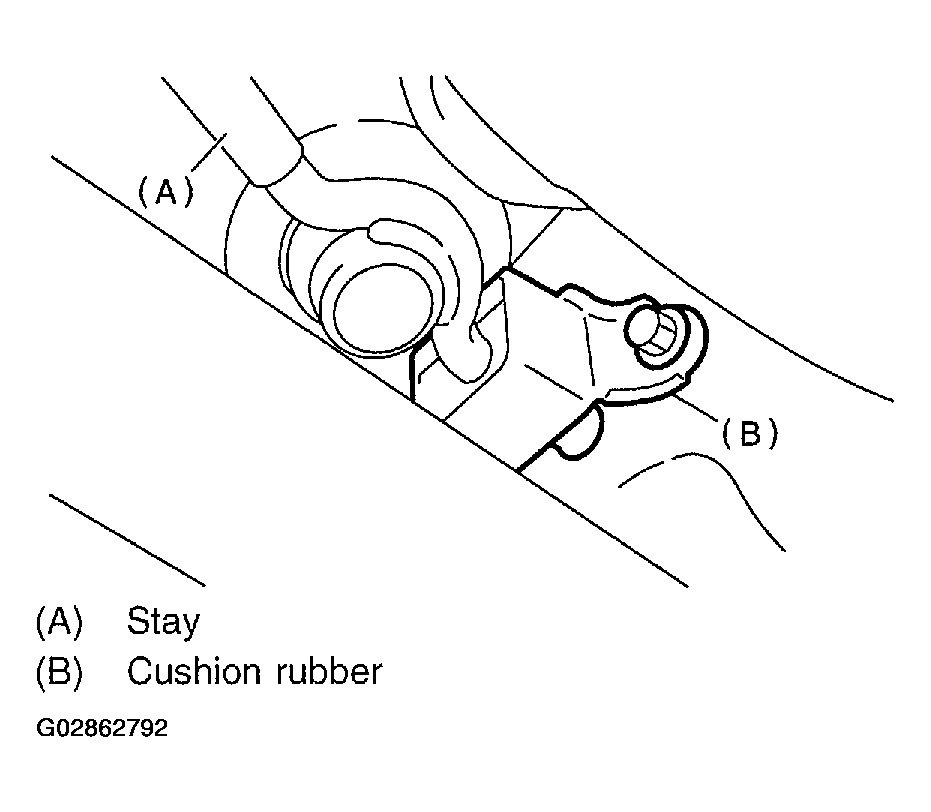

Fig 5: Removing Cushion Rubber From Body
Courtesy of SUBARU OF AMERICA, INC.
Remove joint and then extract spring pin.

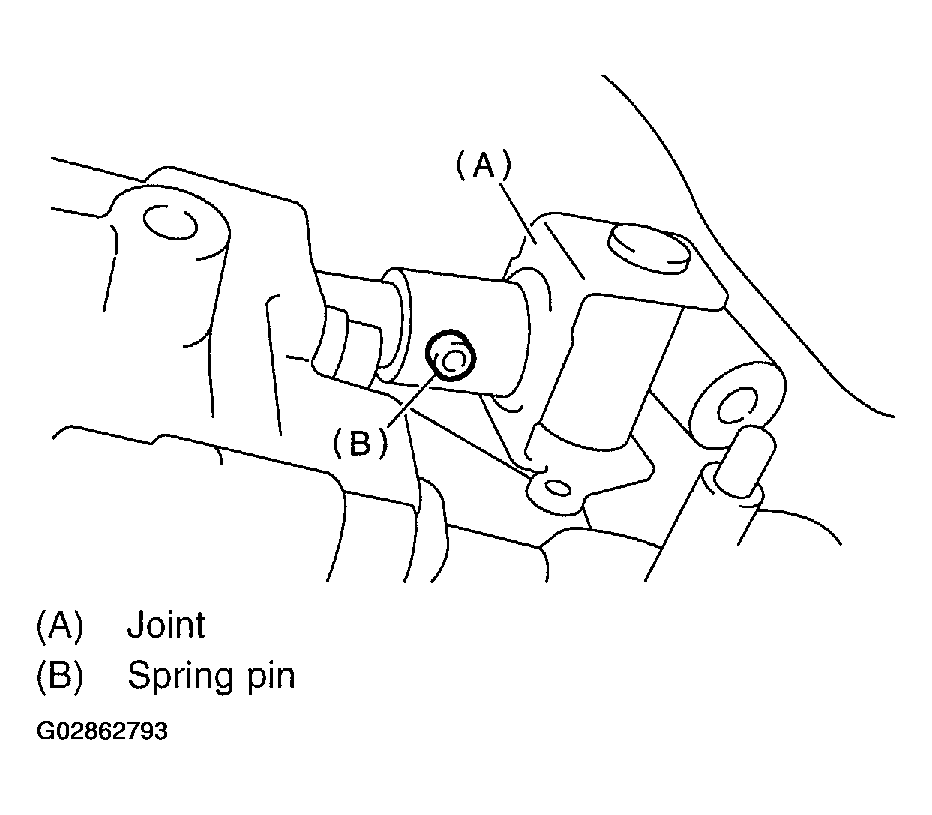

Fig 6: Removing Joint And Extract Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove gear shift lever.

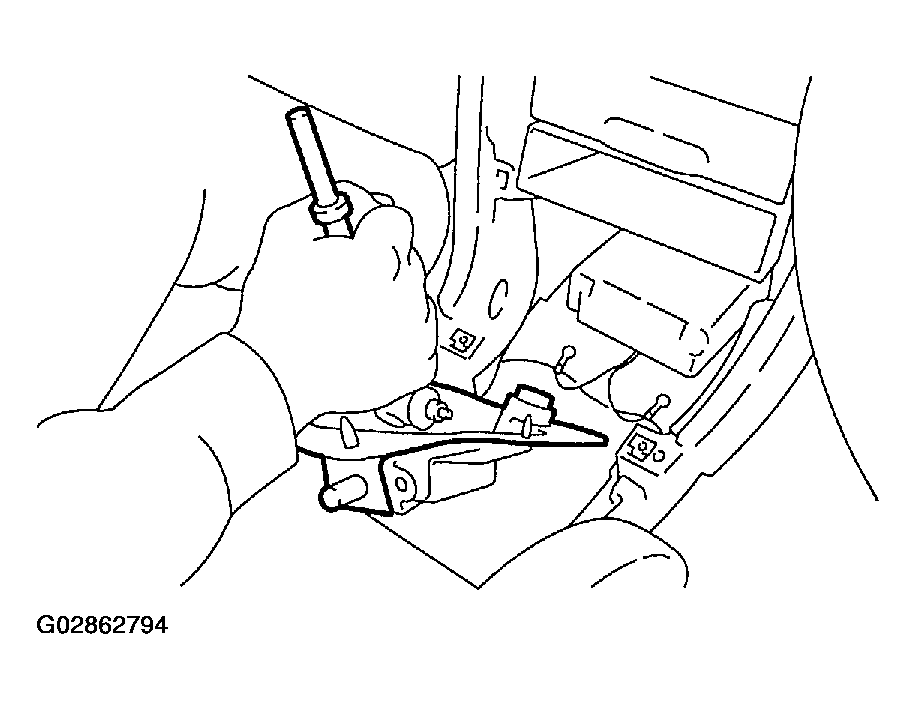

Fig 7: Removing Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
