Select Cable: Adjustment

Prior to removal, set lever to "N" position.
Lift-up the vehicle.

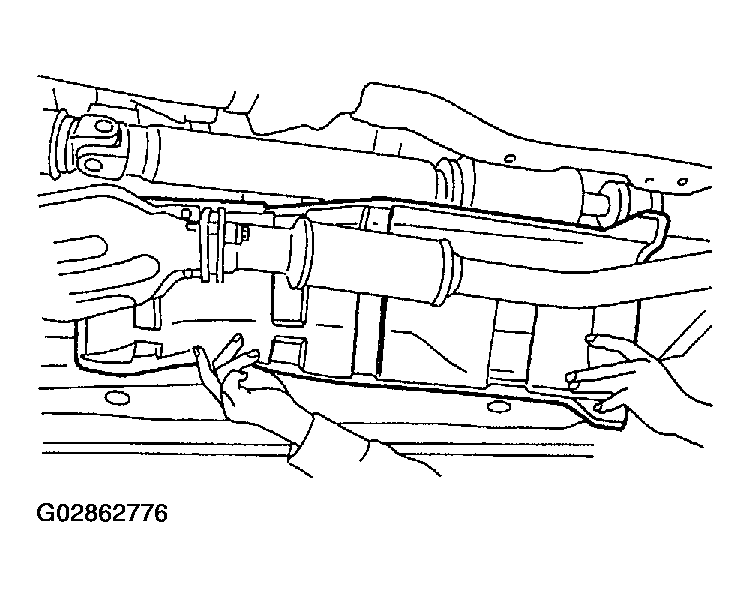

Remove heat shield cover.

Fig 1: Removing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.

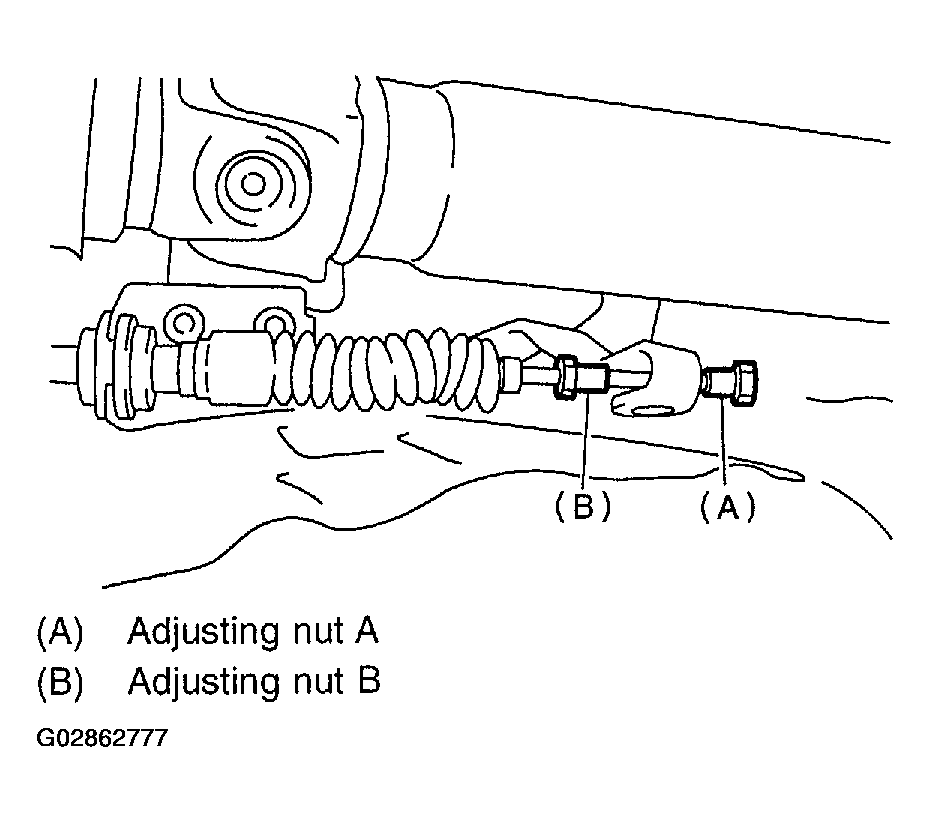

Loosen the adjusting nut on each side.

Fig 2: Loosening Adjusting Nuts
Courtesy of SUBARU OF AMERICA, INC.

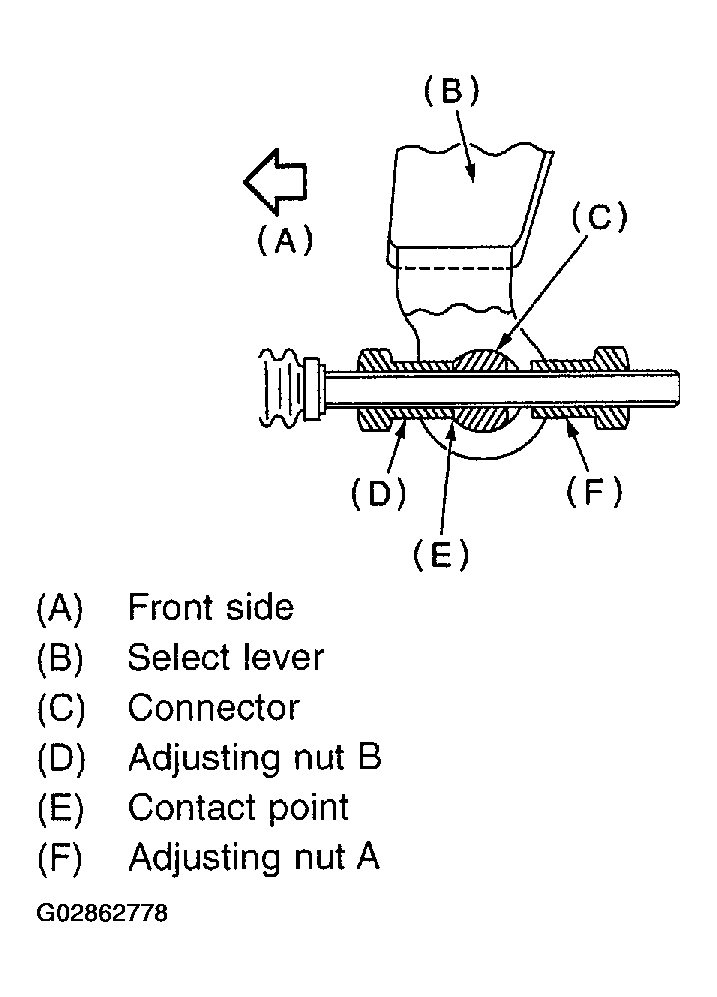

Turn adjusting nut B until it lightly touches the connector.

Fig 3: Turning Adjusting Nut B
Courtesy of SUBARU OF AMERICA, INC.
While preventing adjusting nut B from moving with a wrench, tighten adjusting nut A.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

Fig 4: Tightening Adjusting Nut A
Courtesy of SUBARU OF AMERICA, INC.
After completion of fitting, make sure that the select lever operates smoothly all across the operating range.
