Select Lever: Removal

  1. Set vehicle on a lift.
  2. Disconnect ground cable from battery.
  3. Move the select lever to the "N" position.
  4. Remove heat shield cover.

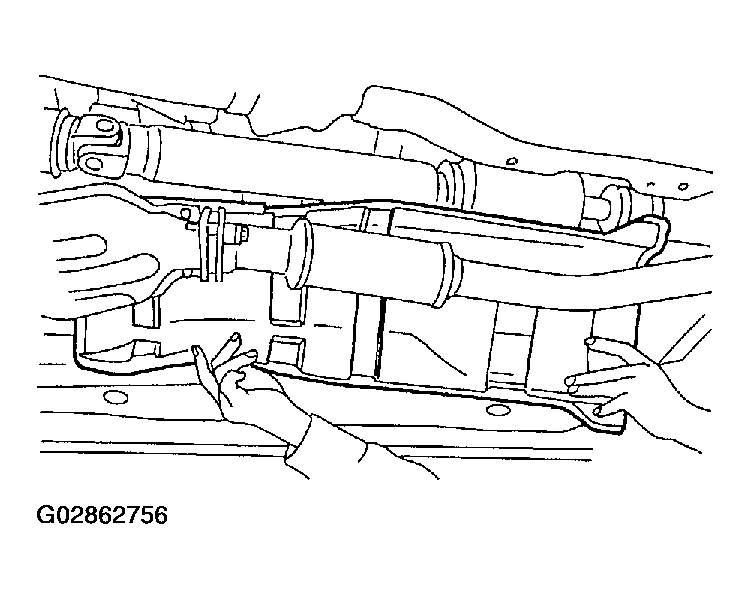

    Fig 1: Removing Heat Shield Cover
    G02862756Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect cable from select lever and then remove cable bracket.

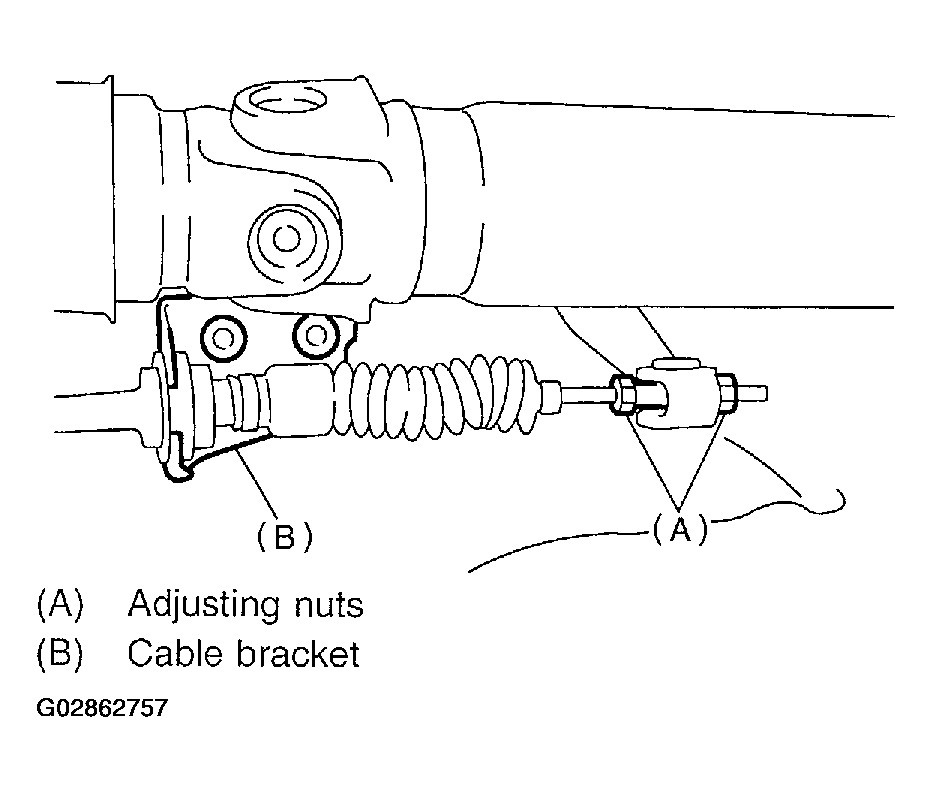

    Fig 2: Disconnecting Cable From Select Lever And Removing Cable Bracket
    G02862757Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the console box. Refer to REMOVAL under CONSOLE BOX .
  7. Disconnect the connectors, then remove the bolts to take out the select lever assembly from the body.

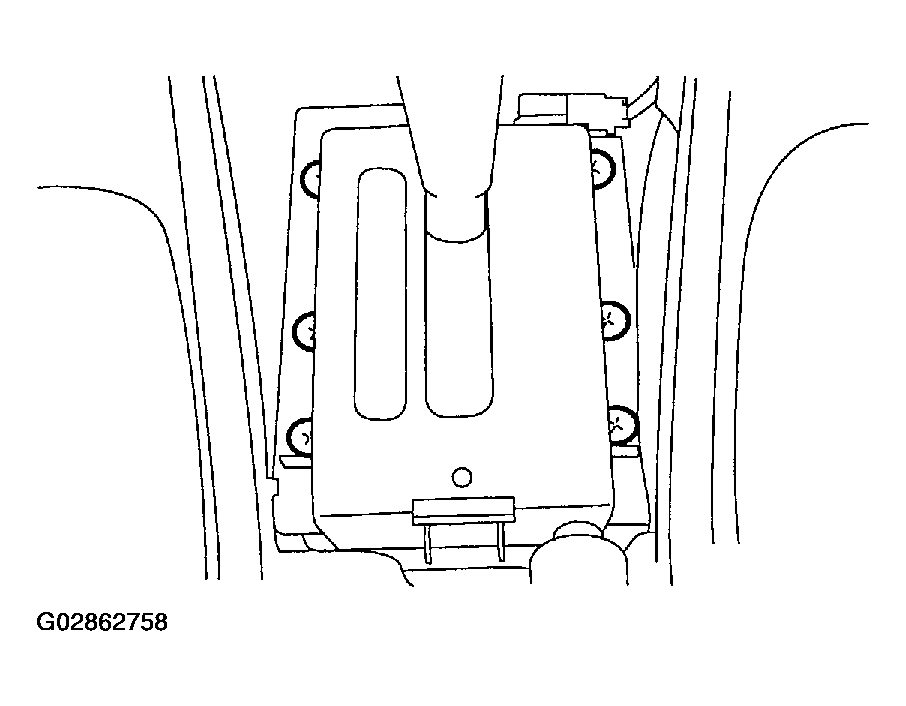

    Fig 3: Taking Out Select Lever Assembly From Body
    G02862758Courtesy of SUBARU OF AMERICA, INC.
