Idle Air Control Solenoid Valve: Removal

  1. Disconnect battery ground cable.

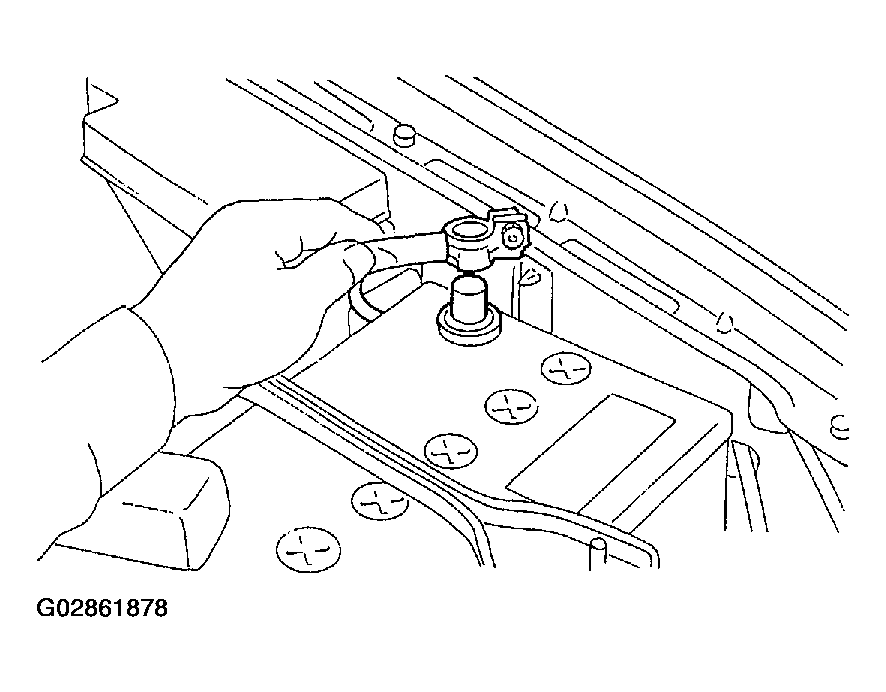

    Fig 1: Disconnecting Battery Ground Cable
    G02861878Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from idle air control solenoid valve.

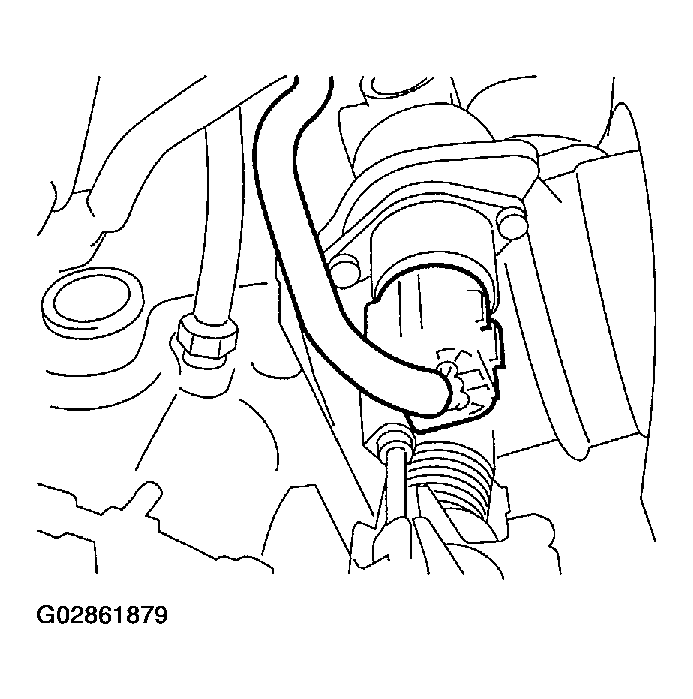

    Fig 2: Disconnecting Connector From Idle Air Control Solenoid Valve
    G02861879Courtesy of SUBARU OF AMERICA, INC.
  3. Remove idle air control solenoid valve from throttle body.

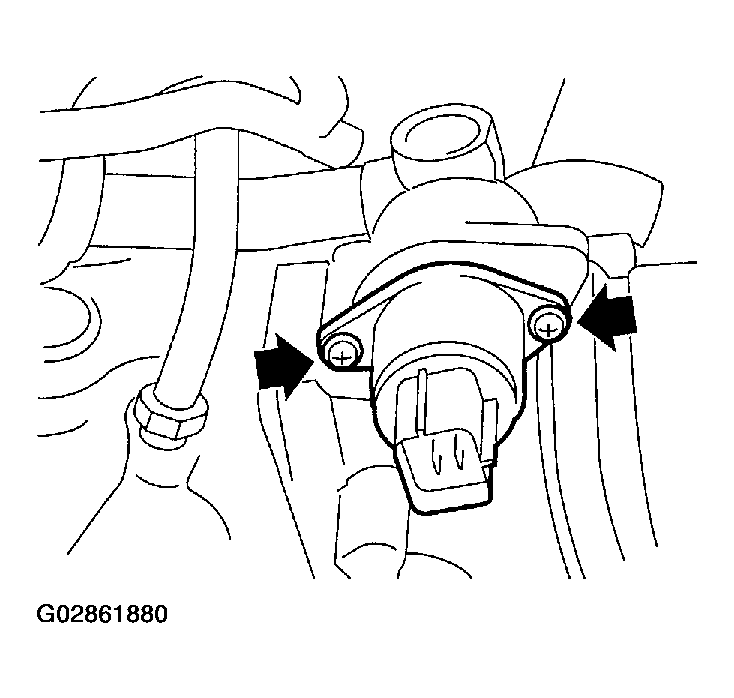

    Fig 3: Removing Idle Air Control Solenoid Valve
    G02861880Courtesy of SUBARU OF AMERICA, INC.
