Intake Manifold: Removal

Release fuel pressure. RELEASING OF FUEL PRESSURE .
Open fuel flap lid, and remove fuel filler cap.

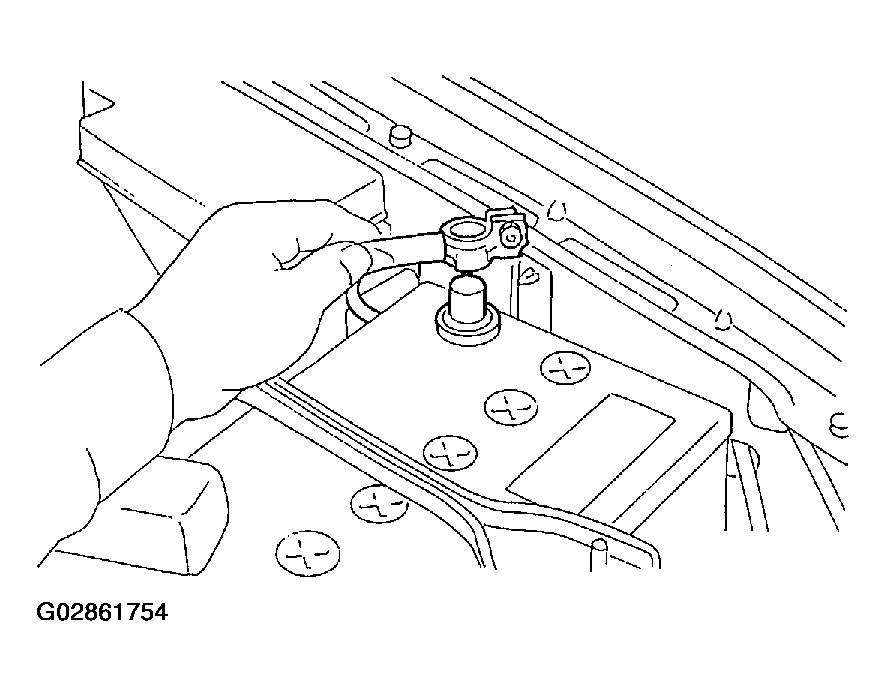

Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air intake duct and air cleaner assembly. Refer to AIR INTAKE DUCT and AIR CLEANER CASE .

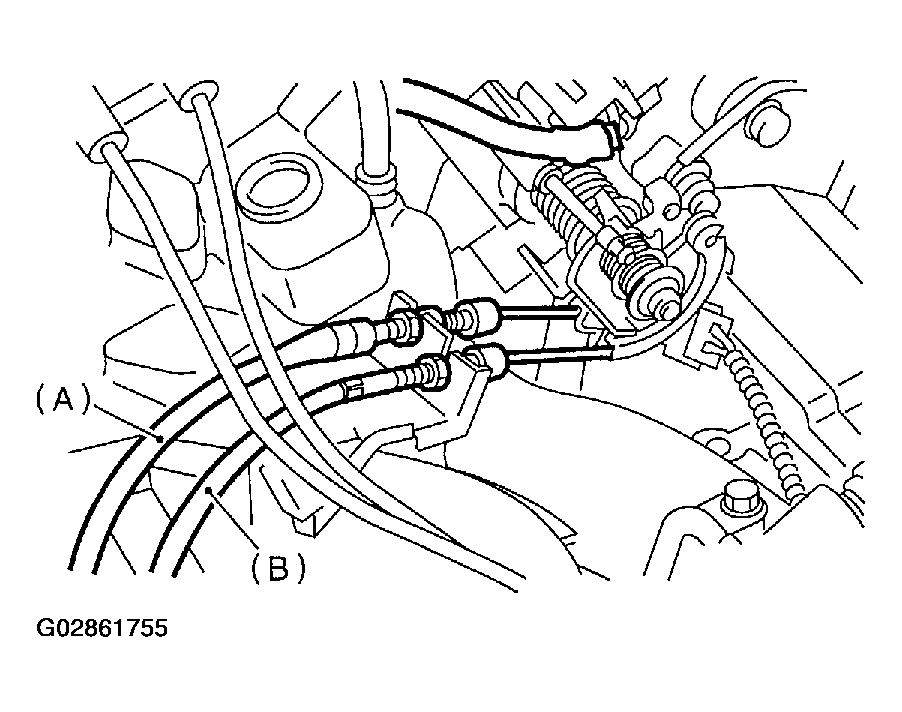

Disconnect accelerator cable (A).

Fig 2: Disconnecting Accelerator Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect cruise control cable (B). (With cruise control model)
Remove power steering pump and tank from brackets.
1. Remove resonator chamber. Refer to RESONATOR CHAMBER .
2. Remove front side V-belt. Refer to V-BELT

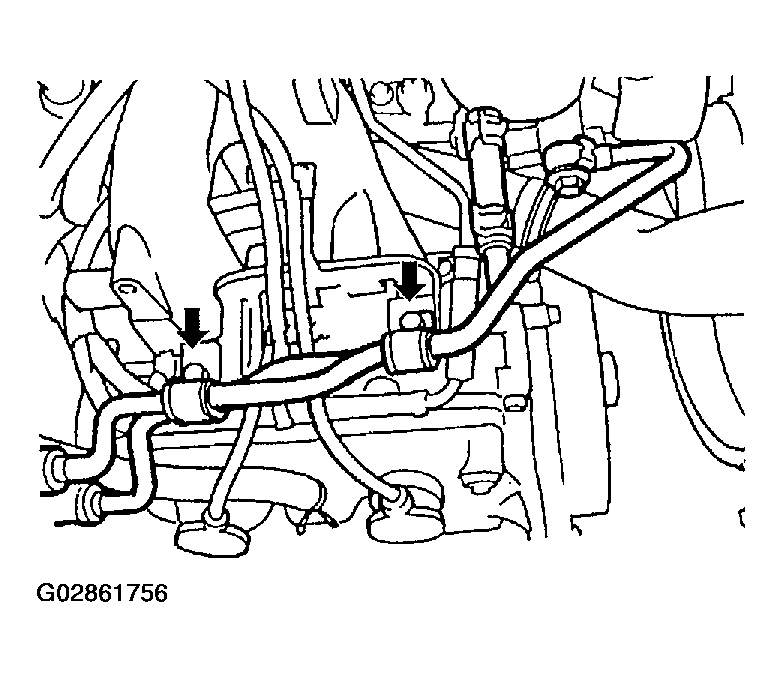

3. Remove bolts which hold power steering pipes brackets onto intake manifold.
  NOTE: Do not disconnect power steering hose.

  Fig 3: Removing Power Steering Pipes Brackets Bolts
  Courtesy of SUBARU OF AMERICA, INC.

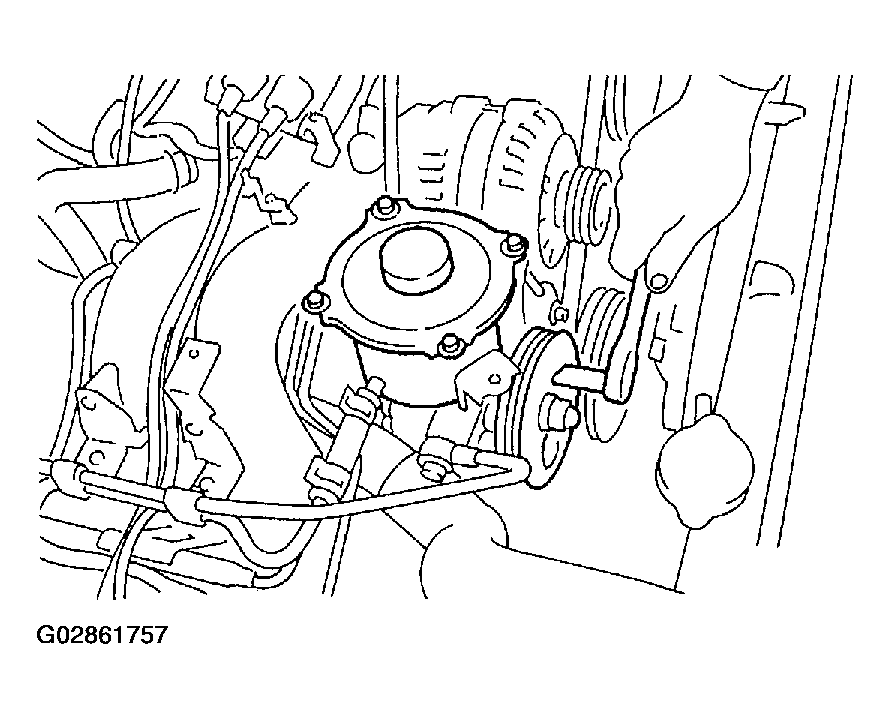

4. Remove bolts which install power steering pump bracket.

  Fig 4: Removing Power Steering Pump Bracket Bolts
  Courtesy of SUBARU OF AMERICA, INC.

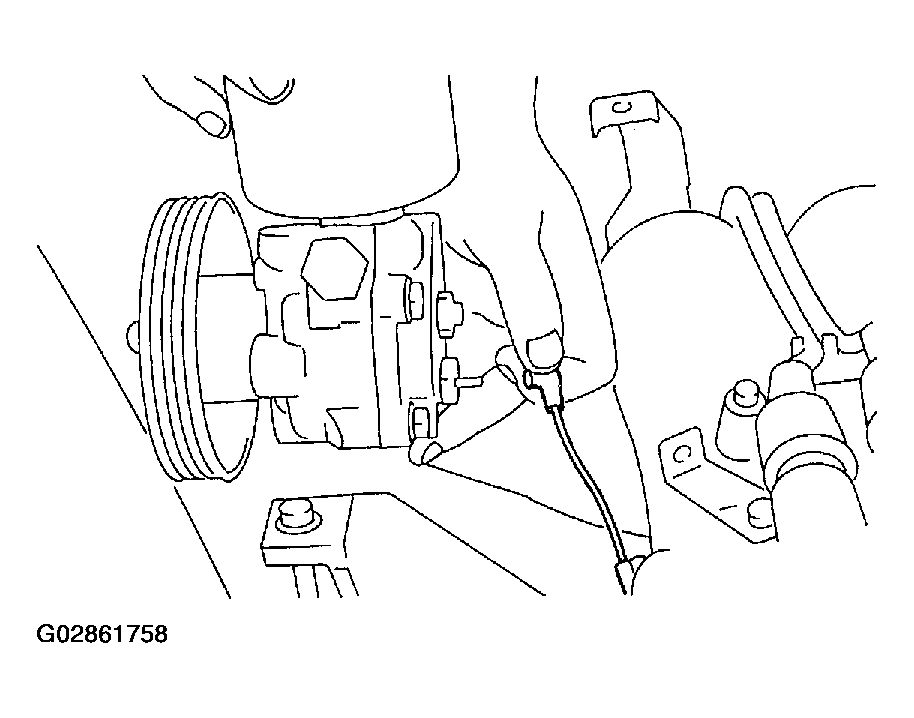

5. Disconnect connector from power steering pump switch.

  Fig 5: Disconnecting Power Steering Pump Switch Connector
  Courtesy of SUBARU OF AMERICA, INC.

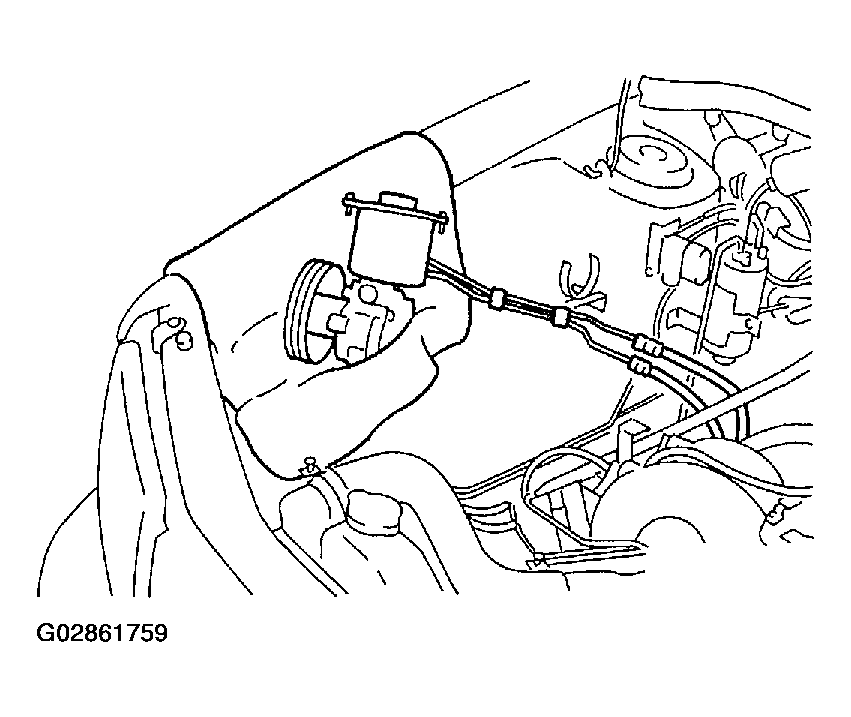

6. Place power steering pump and tank on the right side wheel apron.
Fig 6: Placing Power Steering Pump And Tank On The Right Side Wheel Apron
Courtesy of SUBARU OF AMERICA, INC.
Disconnect spark plug cords from spark plugs.
Disconnect PCV hose from intake manifold.

Fig 7: Disconnecting PCV Hose From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

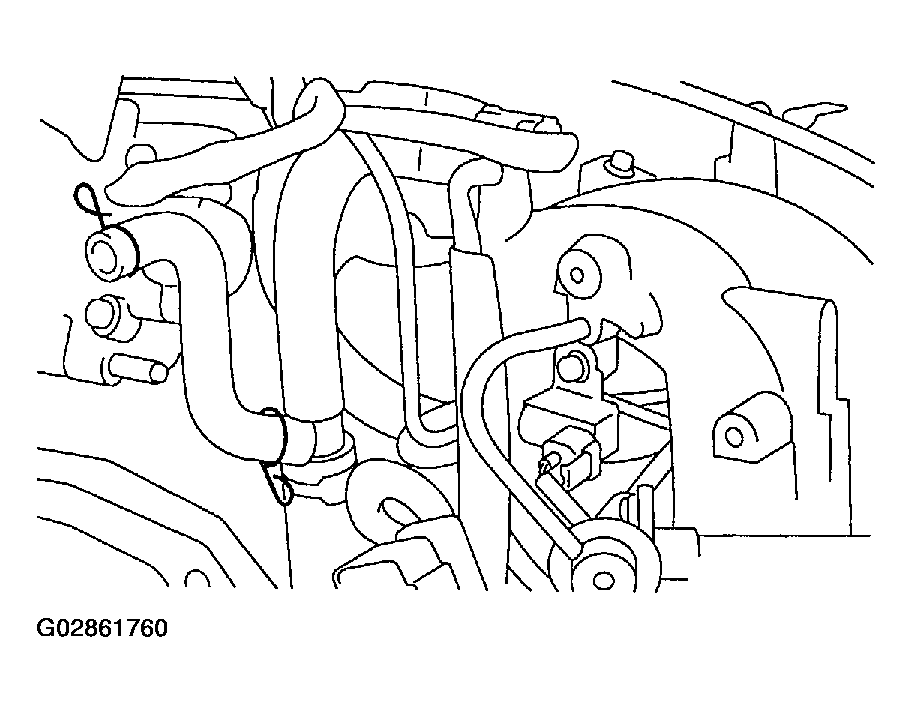

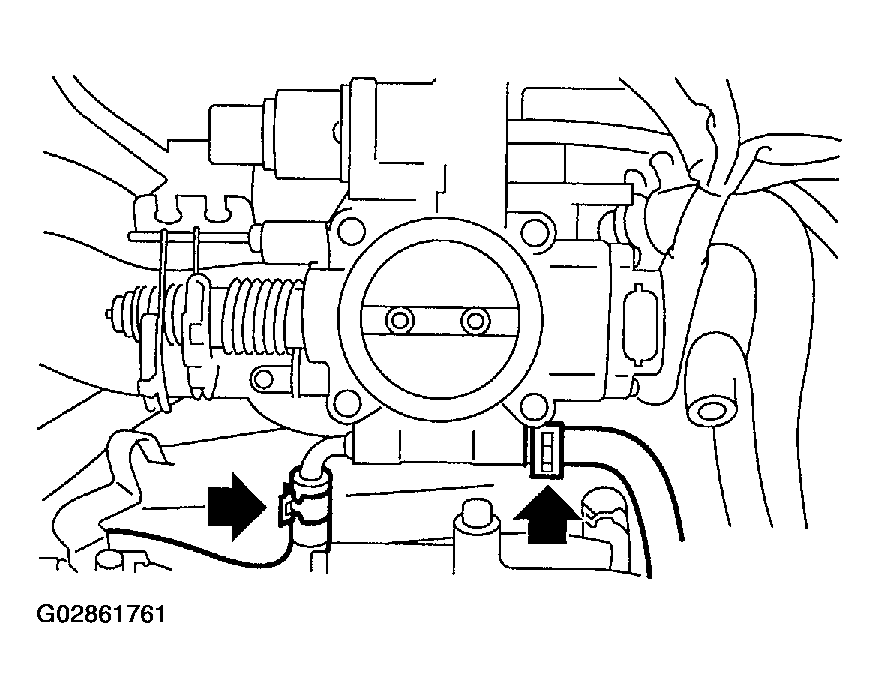

Disconnect engine coolant hose from throttle body.

Fig 8: Disconnecting Engine Coolant Hose From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.

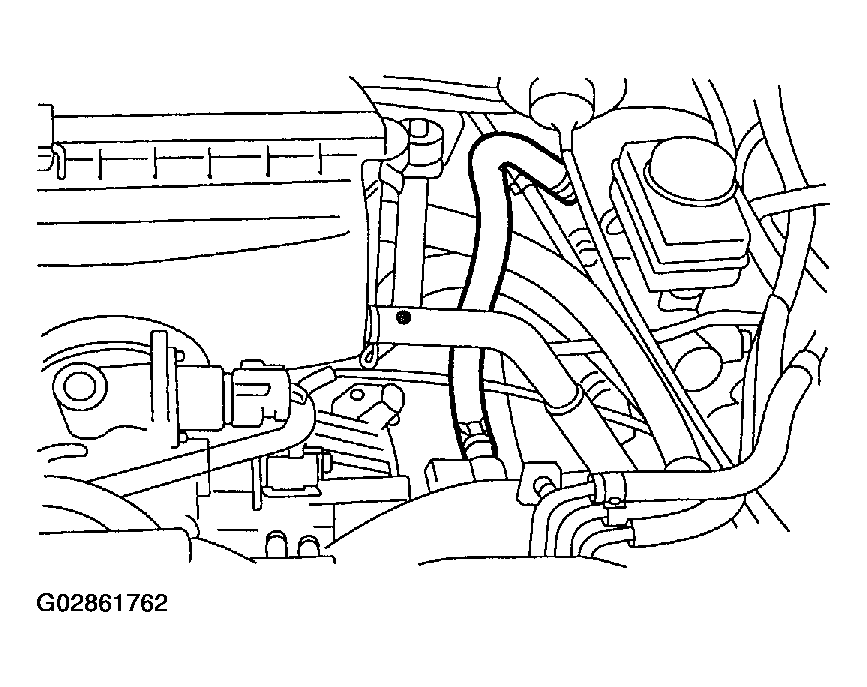

Disconnect brake booster hose.

Fig 9: Disconnecting Brake Booster Hose
Courtesy of SUBARU OF AMERICA, INC.

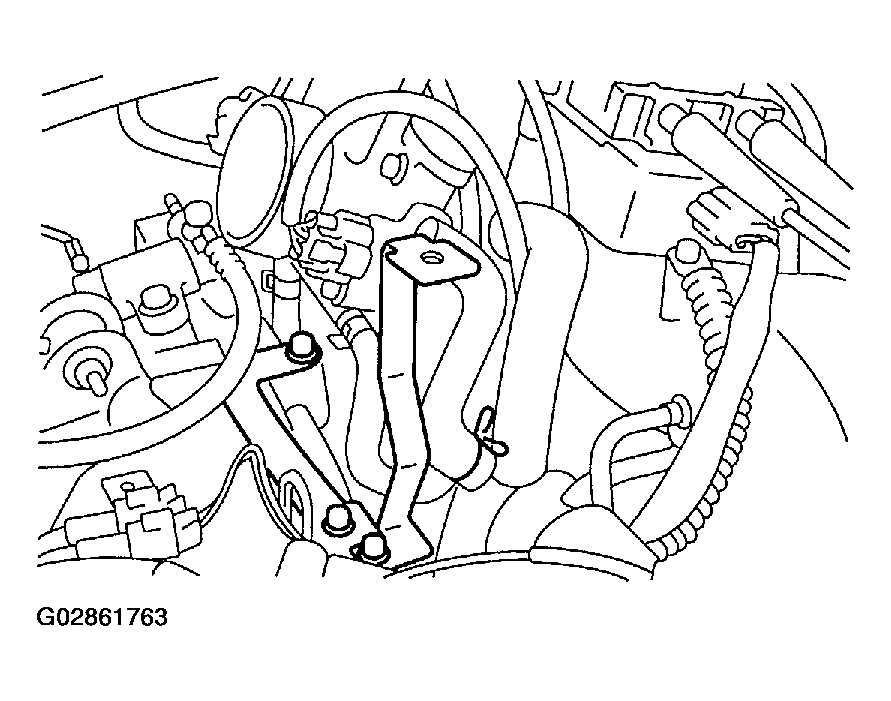

Remove air cleaner case stay RH and engine harness bracket, and disconnect engine harness connectors from bulkhead harness connectors.

Fig 10: Removing Air Cleaner Case Stay RH And Engine Harness Bracket
Courtesy of SUBARU OF AMERICA, INC.

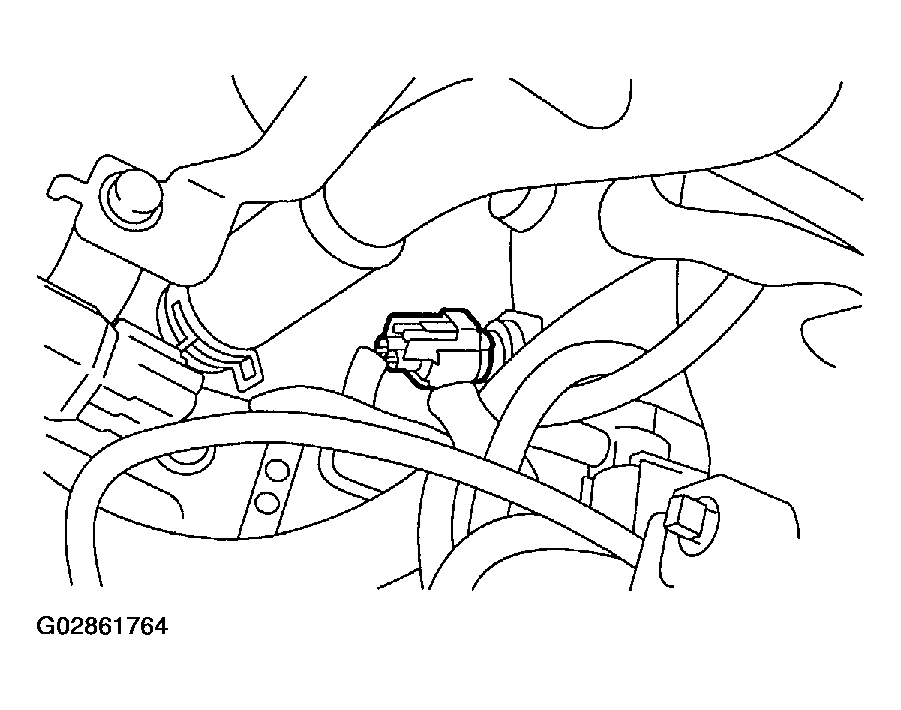

Disconnect connectors from engine coolant temperature sensor.

Fig 11: Disconnecting Engine Coolant Temperature Sensor Connectors
Courtesy of SUBARU OF AMERICA, INC.

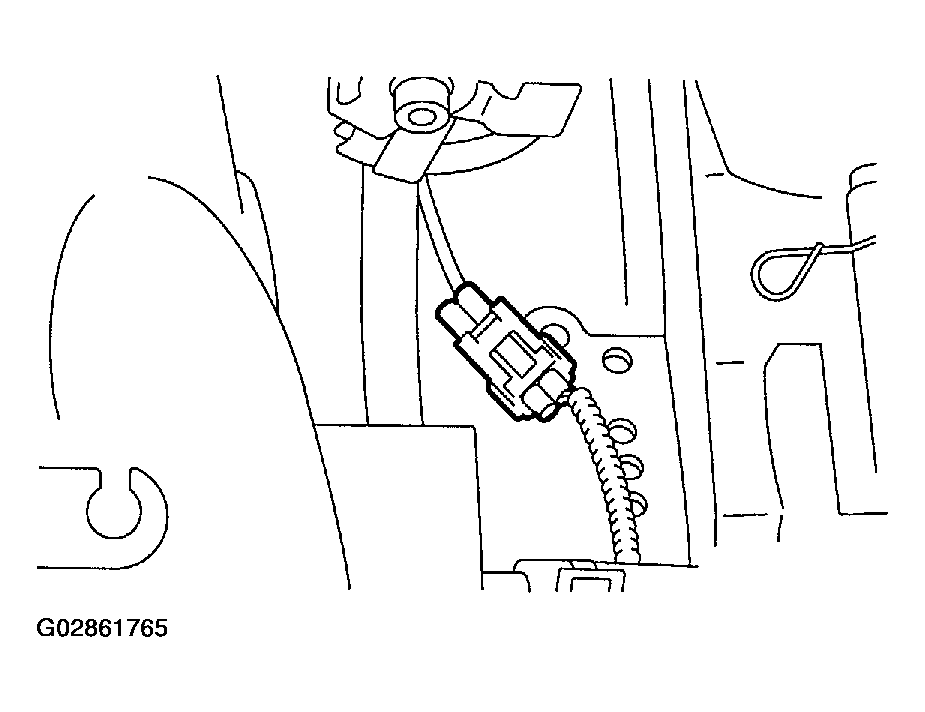

Disconnect knock sensor connector.

Fig 12: Disconnecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

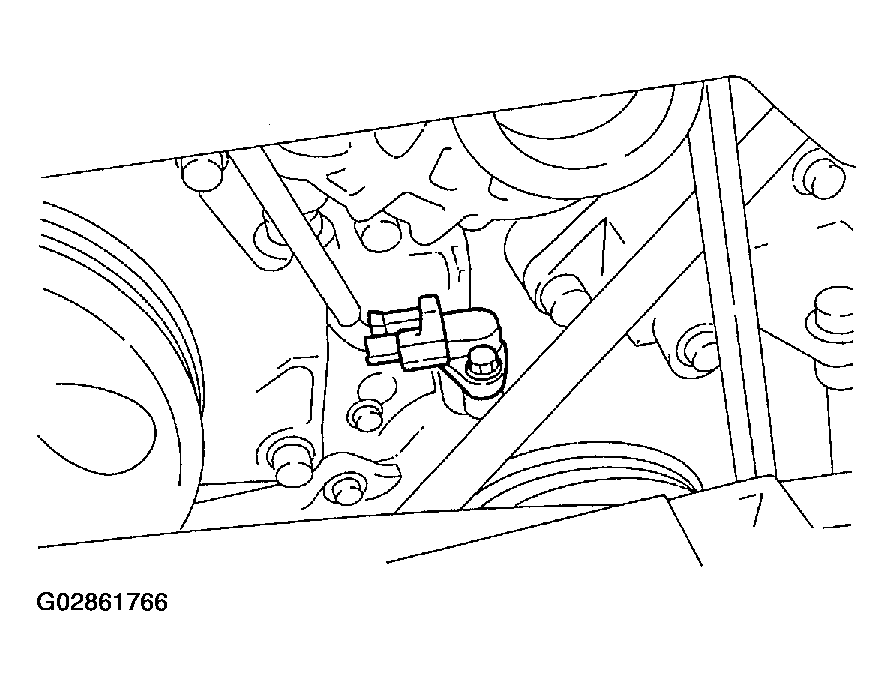

Disconnect connector from crankshaft position sensor.

Fig 13: Disconnecting Crankshaft Position Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

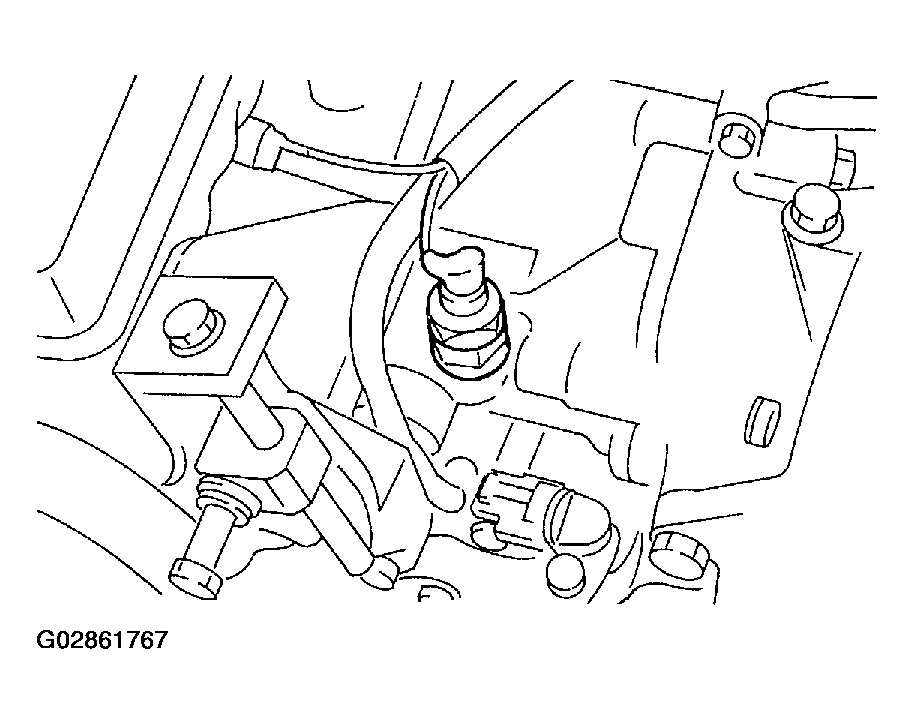

Disconnect connector from oil pressure switch.

Fig 14: Disconnecting Oil Pressure Switch Connector
Courtesy of SUBARU OF AMERICA, INC.

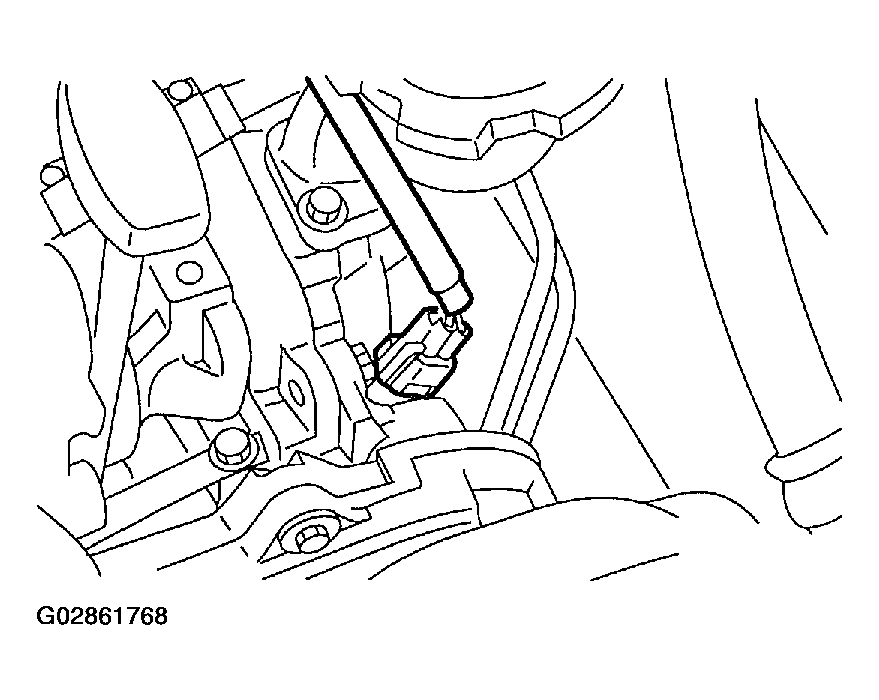

Disconnect connector from camshaft position sensor.

Fig 15: Disconnecting Camshaft Position Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

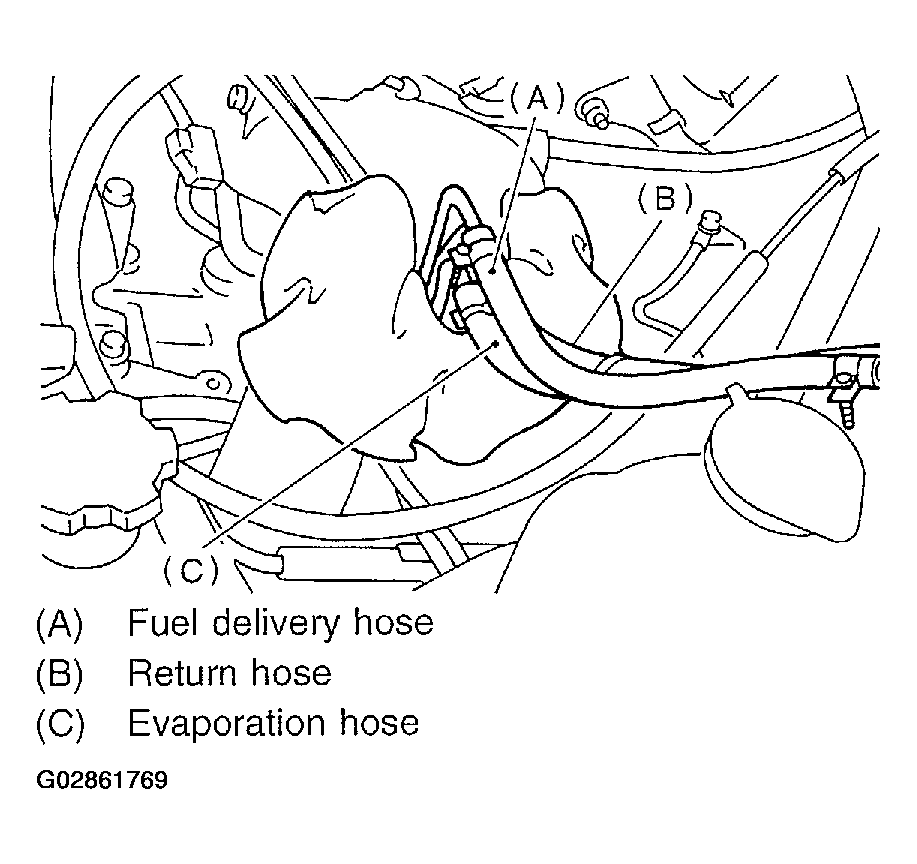

Disconnect fuel hoses from fuel pipes.
WARNING:
- Do not spill fuel.
- Catch fuel from hoses in a container or cloth.
Fig 16: Disconnecting Fuel Hoses From Fuel Pipes
Courtesy of SUBARU OF AMERICA, INC.

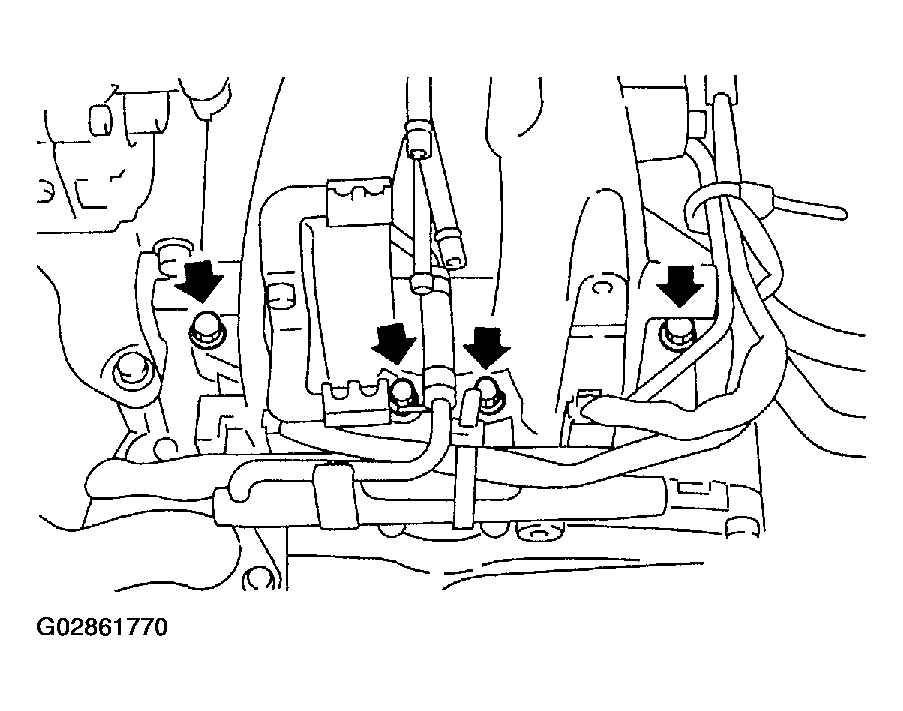

Remove bolts which hold intake manifold onto cylinder heads.

Fig 17: Removing Intake Manifold Bolts
Courtesy of SUBARU OF AMERICA, INC.

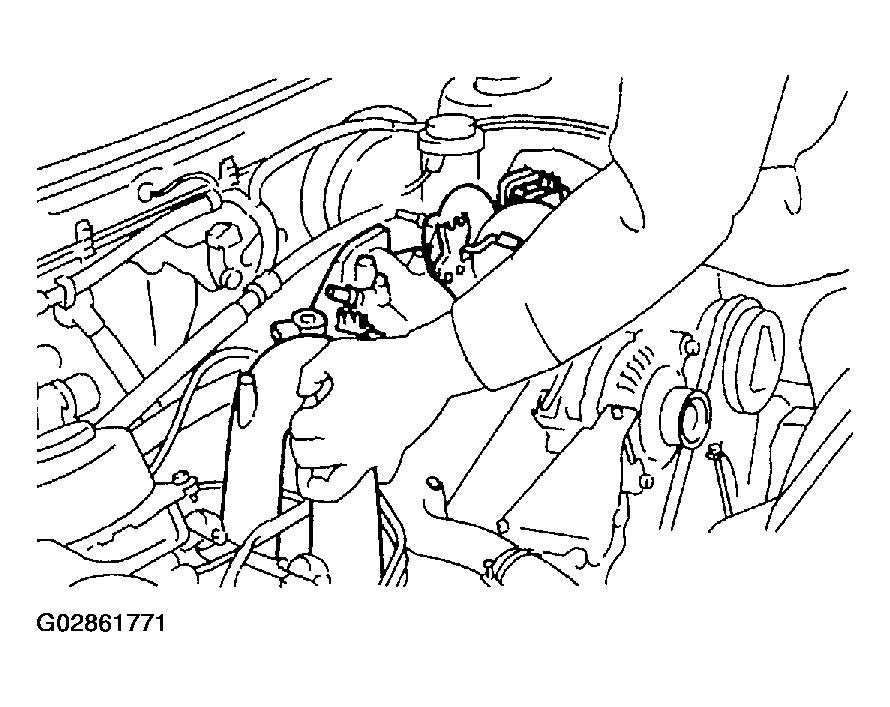

Remove intake manifold.

Fig 18: Removing Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
