Select Cable: Removal

  1. Prior to removal, set lever to "N" position.
  2. Remove heat shield cover.

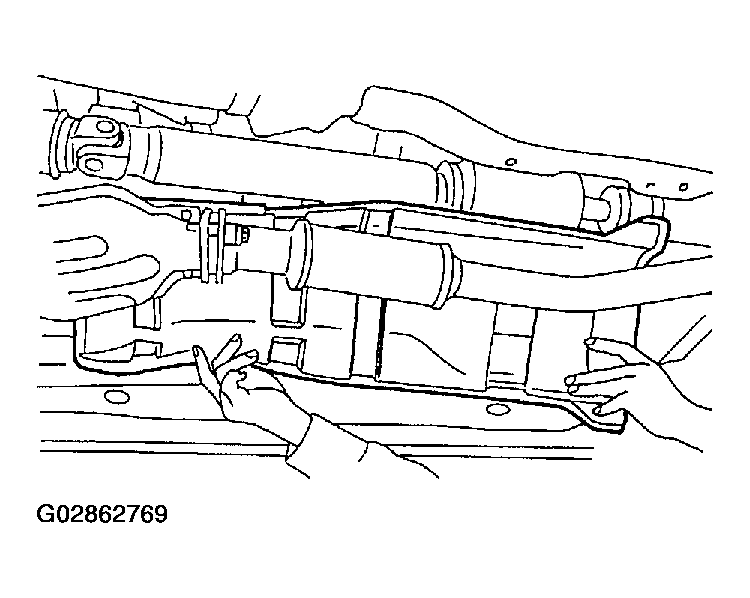

    Fig 1: Removing Heat Shield Cover
    G02862769Courtesy of SUBARU OF AMERICA, INC.
  3. Remove snap pin from range select lever.

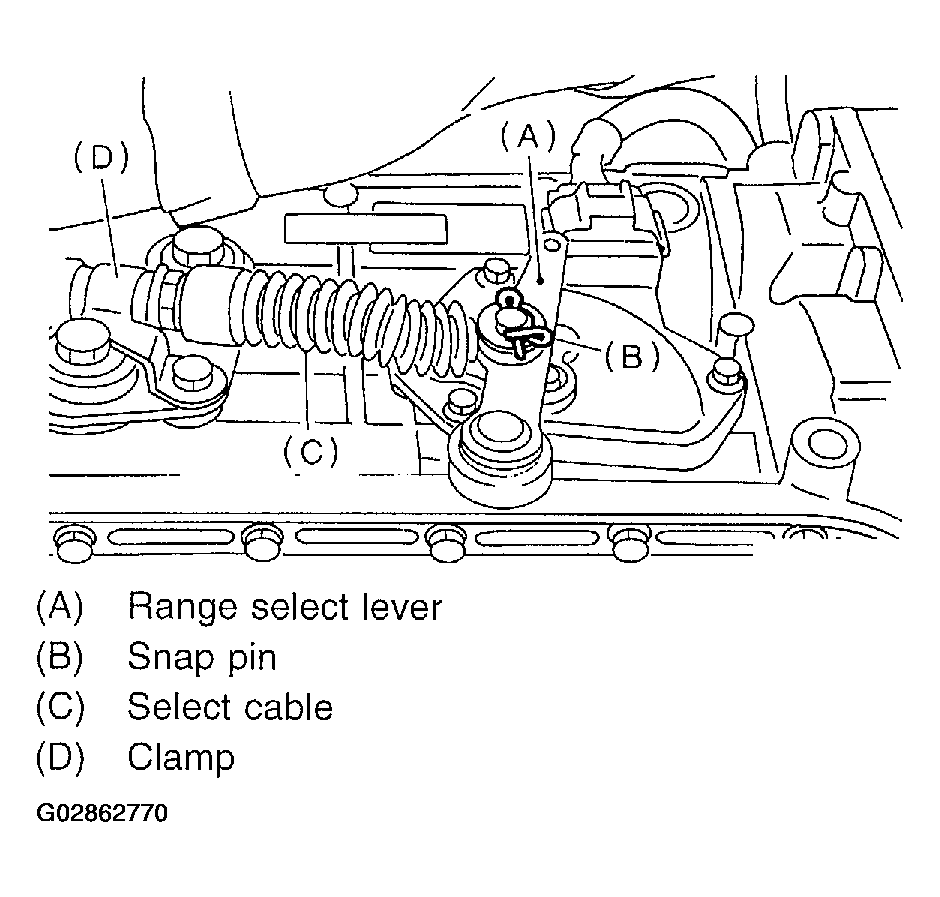

    Fig 2: Removing Snap Pin From Range Select Lever
    G02862770Courtesy of SUBARU OF AMERICA, INC.
  4. Remove plate assembly from transmission case.

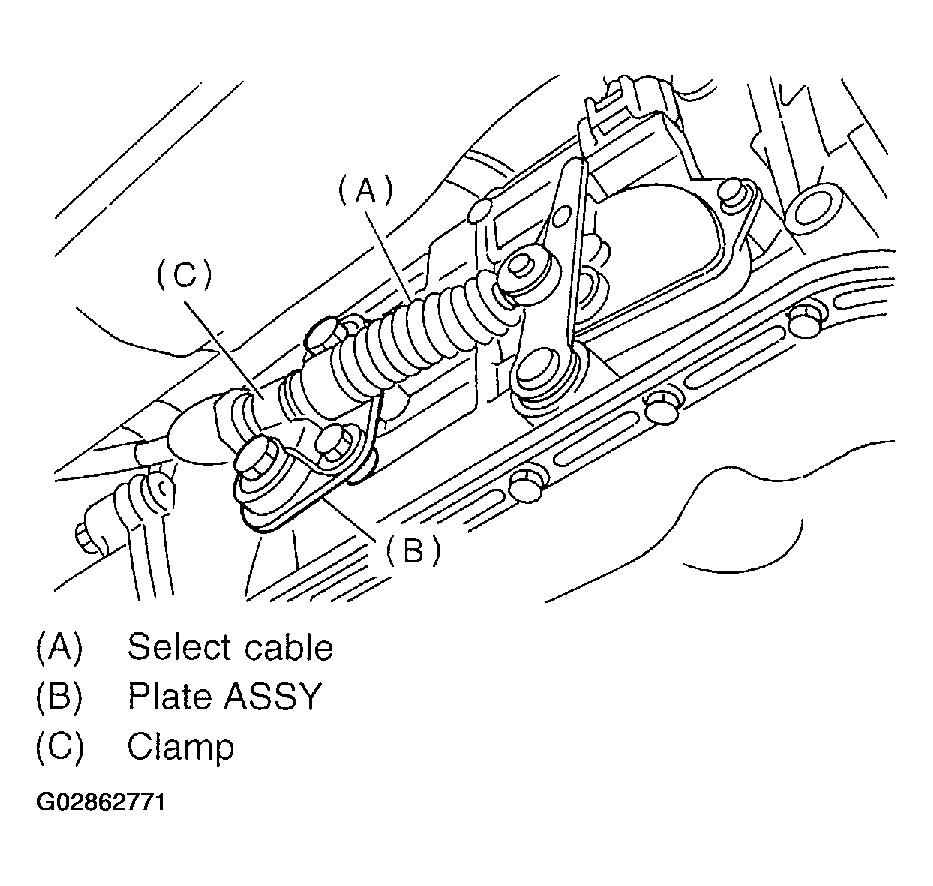

    Fig 3: Removing Plate Assembly From Transmission Case
    G02862771Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect cable from select lever and then remove cable bracket.

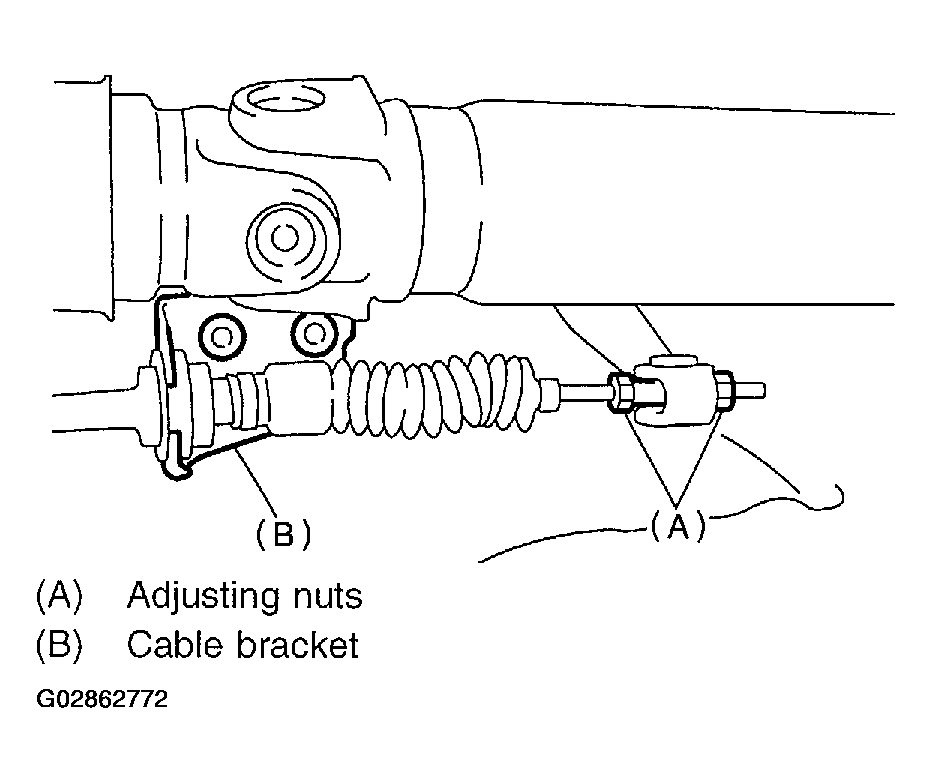

    Fig 4: Disconnecting Cable From Select Lever And Removing Cable Bracket
    G02862772Courtesy of SUBARU OF AMERICA, INC.
  6. Remove select cable from plate assembly.
