Select Lever: Disassembly

  1. Remove connectors from plate.

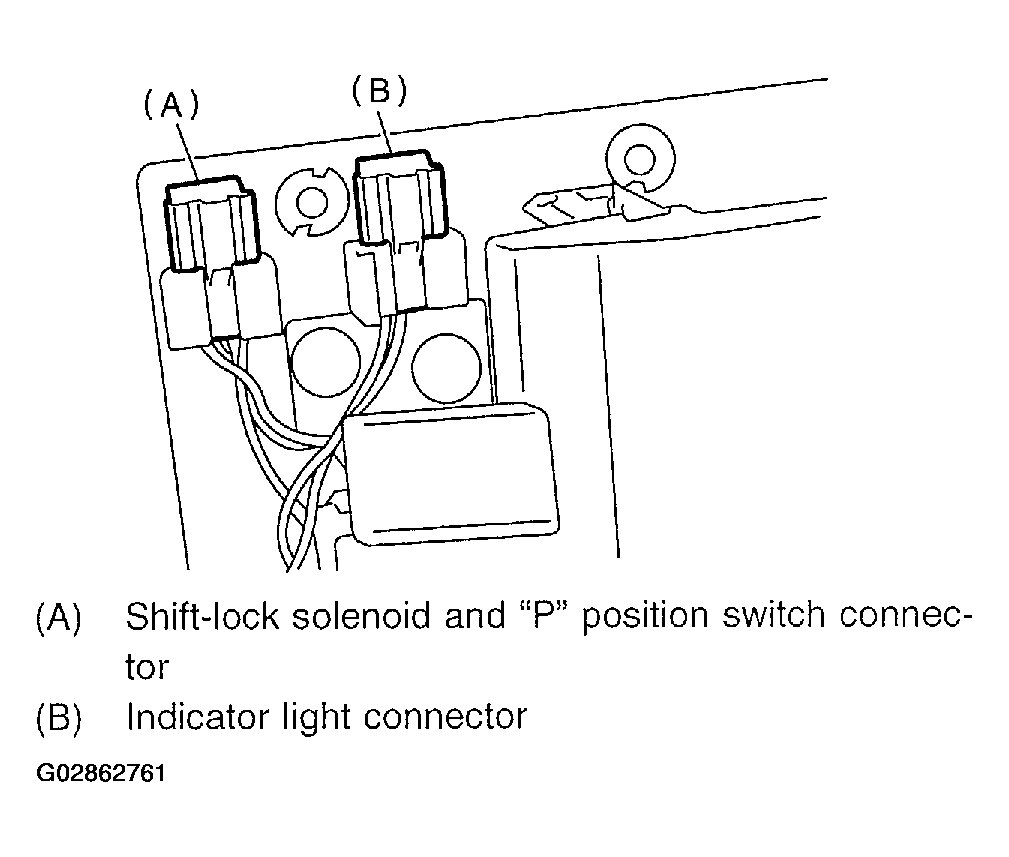

    Fig 1: Removing Connectors From Plate
    G02862761Courtesy of SUBARU OF AMERICA, INC.
    1. Shift-lock solenoid and "P" position switch connector
    2. Indicator light connector
  2. Remove indicator light.
    NOTE: Be careful not to break the indicator light during removal.

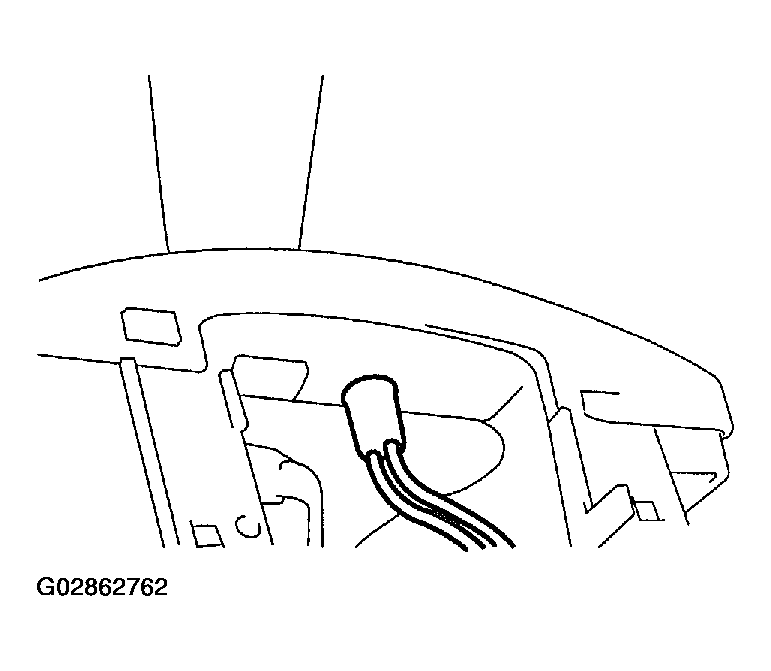

    Fig 2: Removing Indicator Light
    G02862762Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the clip.

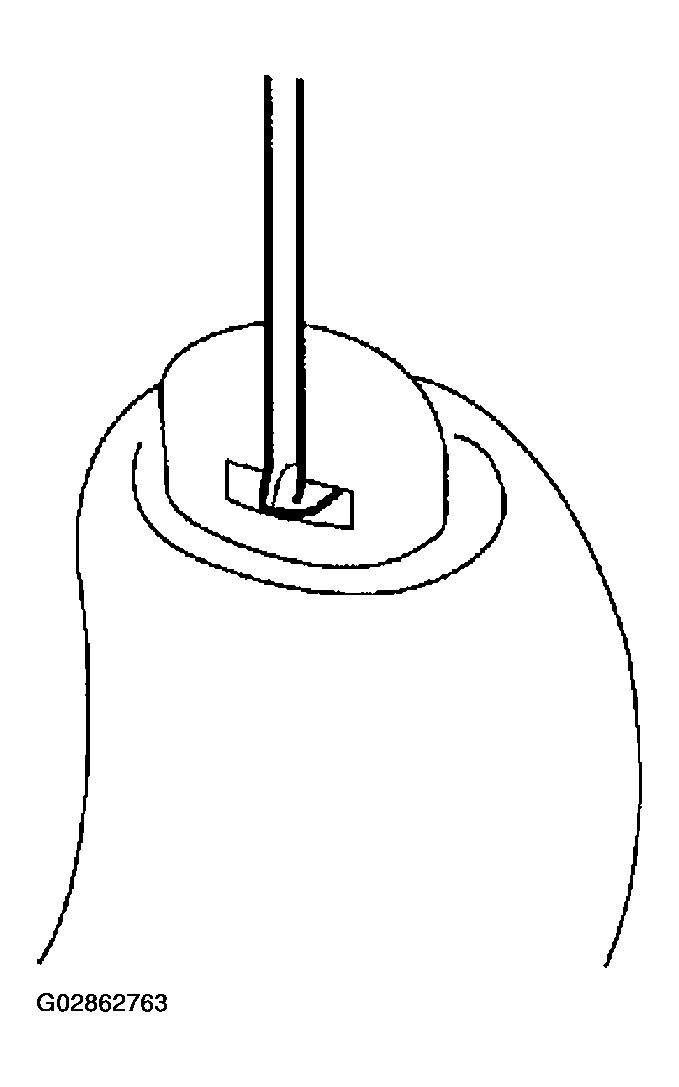

    Fig 3: Removing Clip
    G02862763Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the button A.
  5. Remove the two screws from the select lever grip.
  6. While pressing the select lever button B, remove the select lever grip and indicator cover from the upper select lever, and then remove the select lever button and spring.
    CAUTION: Position the select lever grip carefully so that the select lever button does not jump out.

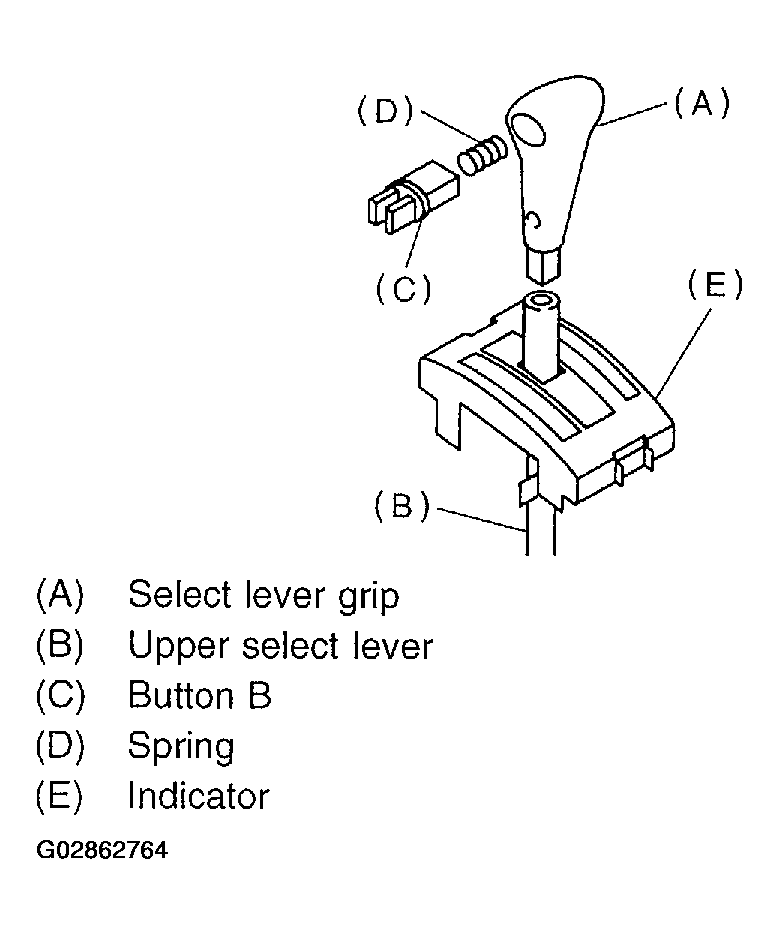

    Fig 4: Removing Select Lever Grip And Indicator Cover From Upper Select Lever
    G02862764Courtesy of SUBARU OF AMERICA, INC.
  7. Remove shift-lock solenoid and "P" position switch.

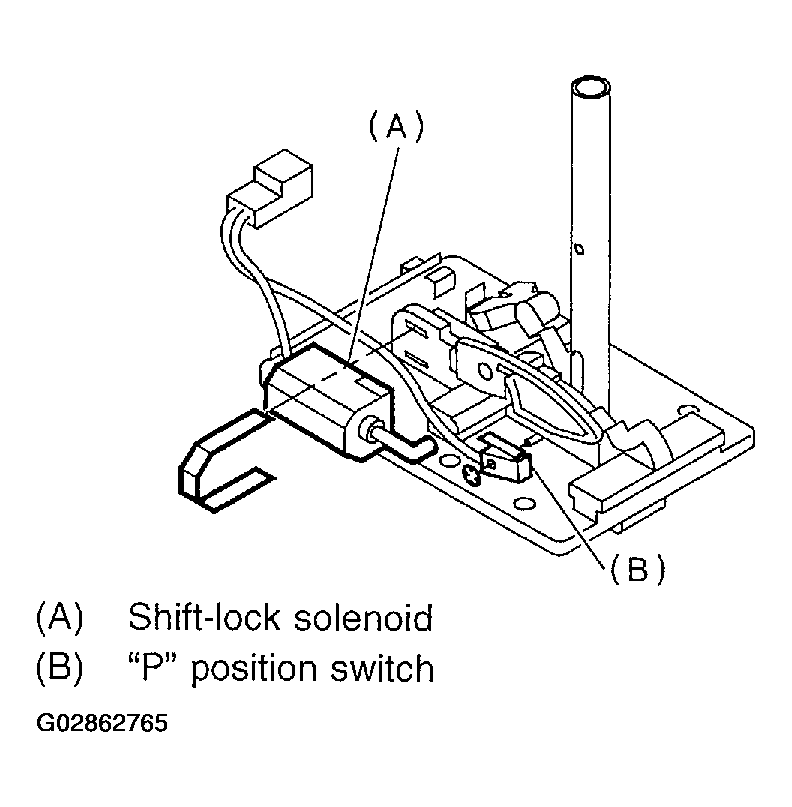

    Fig 5: Removing Shift-Lock Solenoid And "P" Position Switch
    G02862765Courtesy of SUBARU OF AMERICA, INC.
  8. Remove lock plate.
  9. Remove the cap, then the straight pin.
  10. Remove the lower select lever, and then lift the upper select lever from the plate.

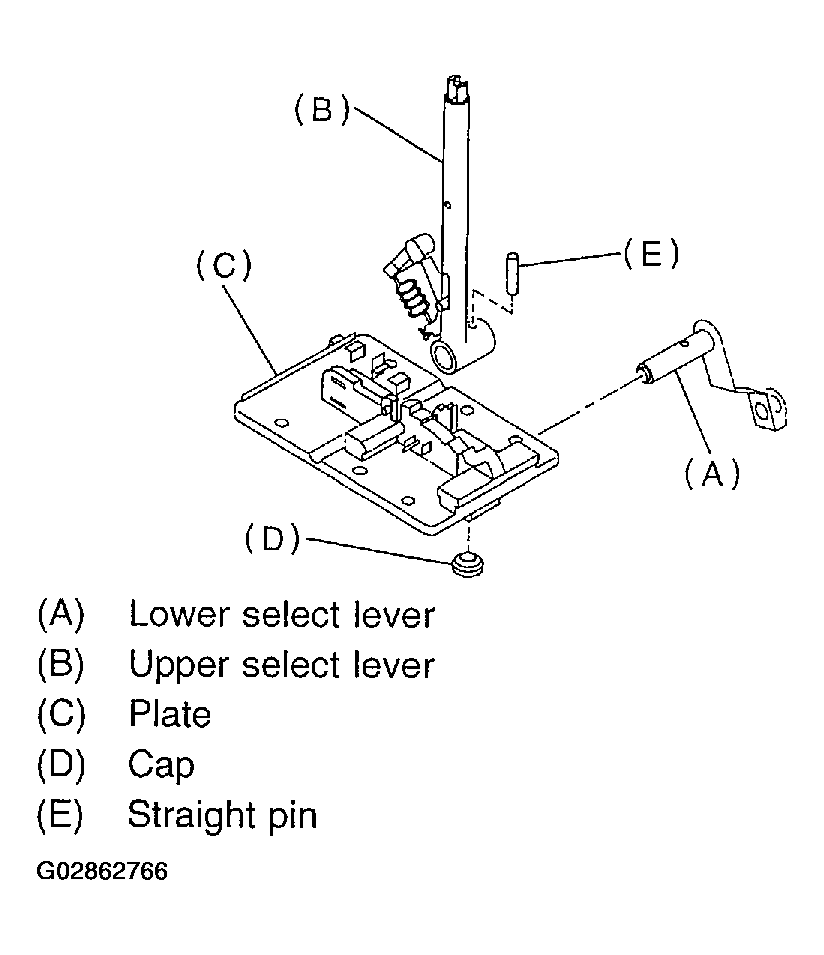

    Fig 6: Removing Lower Select Lever And Lifting Upper Select Lever From Plate
    G02862766Courtesy of SUBARU OF AMERICA, INC.
