Air Assist Injector Solenoid Valve: Installation

Install in the reverse order of removal.

Tightening torque:  6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

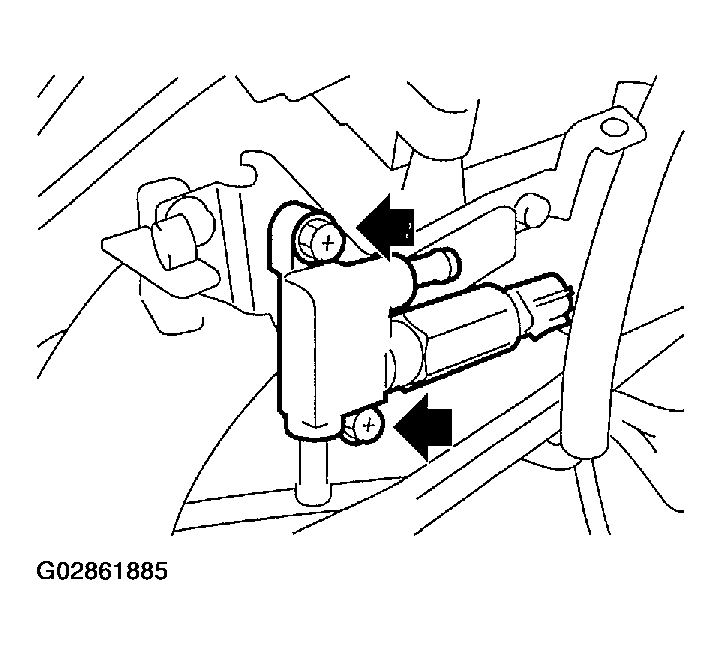

Fig 1: Installing Air Assist Injector Solenoid Valve

Courtesy of SUBARU OF AMERICA, INC.
