Engine Control Module: Removal

Disconnect battery ground cable.

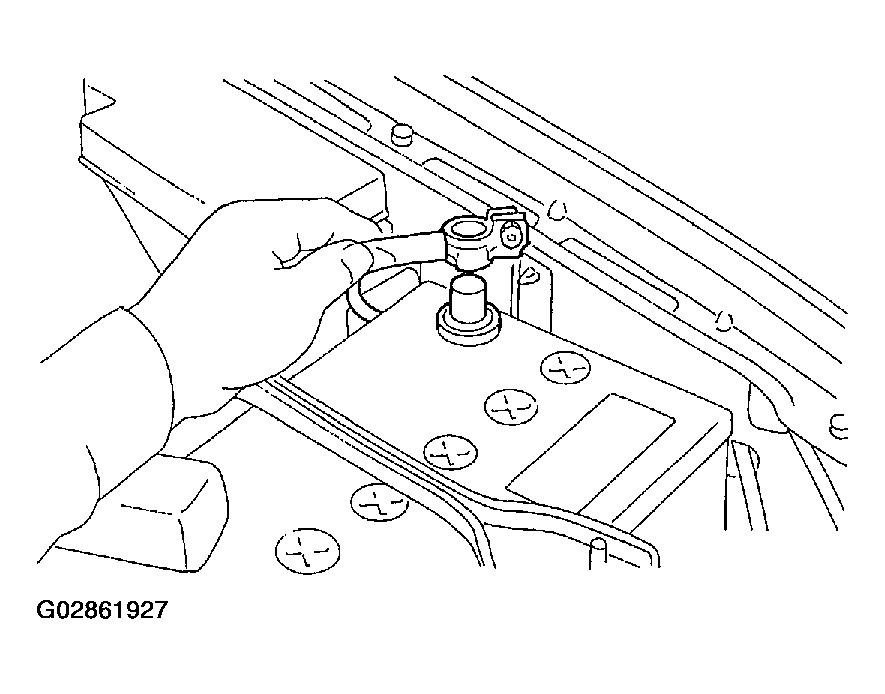

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove lower inner trim of passenger side. LOWER INNER TRIM
Detach floor mat of front passenger seat.
Remove protect cover.

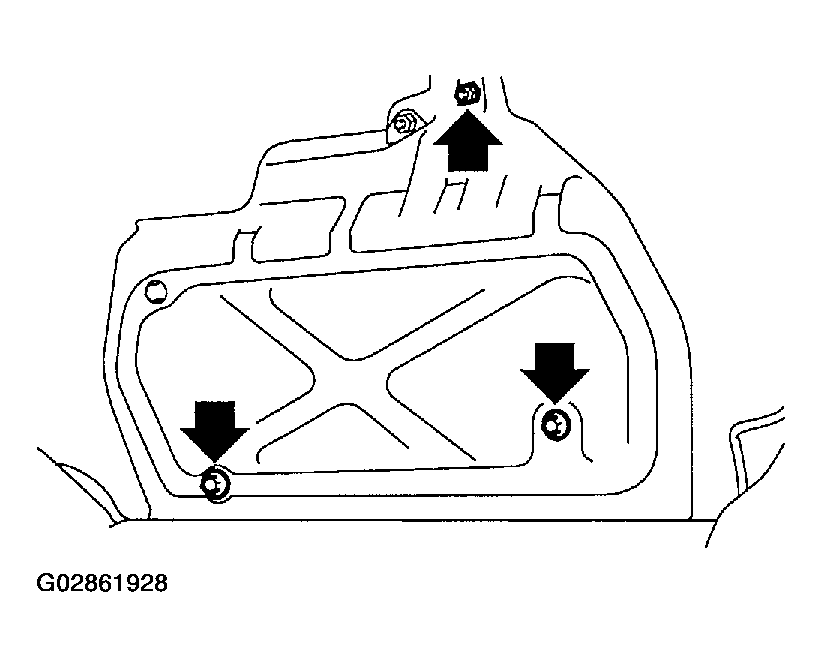

Fig 2: Removing Protect Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts (A) which hold ECM to bracket.

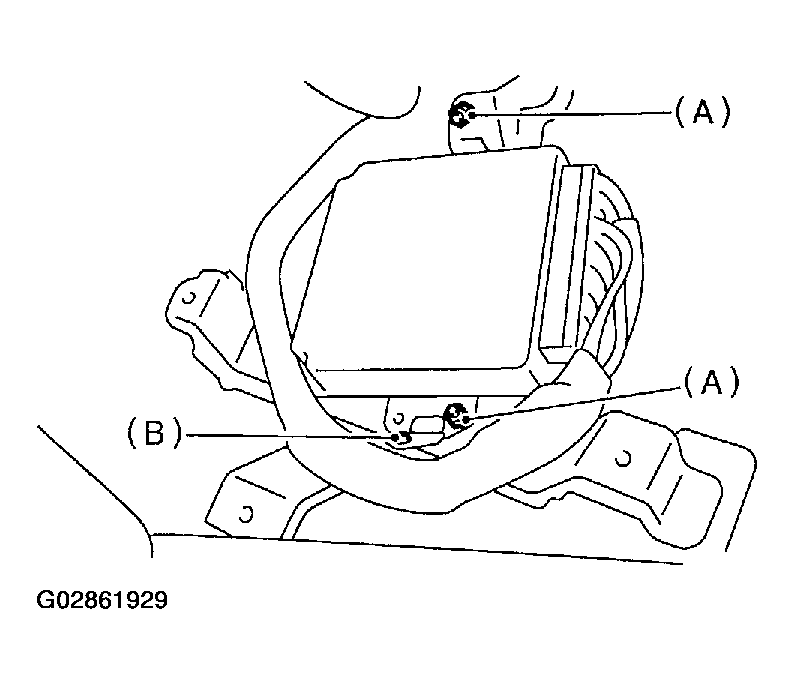

Fig 3: Removing ECM Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove clip (B) from bracket.
Disconnect ECM connectors and take out ECM.
