Fuel Sub Level Sensor: Installation

Install in the reverse order of removal.

Tightening torque:  4.4 N-m (0.45 kgf-m, 3.3 ft-lb)

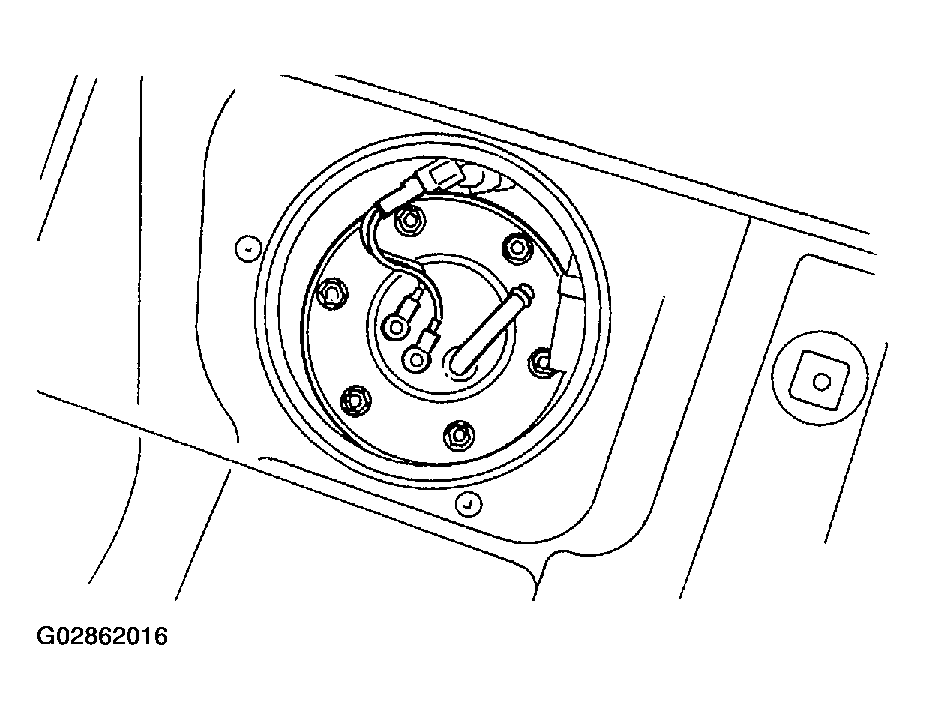

Fig 1: Installing Fuel Sub Meter Unit

Courtesy of SUBARU OF AMERICA, INC.
