Fuel Sub Level Sensor: Removal

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
  1. Disconnect battery ground cable.

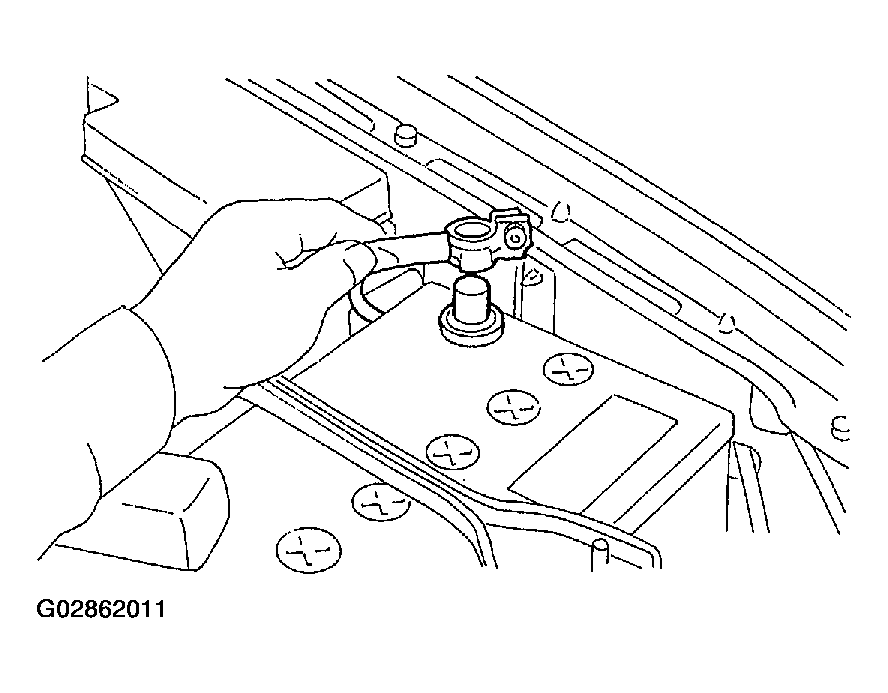

    Fig 1: Disconnecting Battery Ground Cable
    G02862011Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the floor box located just behind the rear seats.
  3. Remove service hole cover.

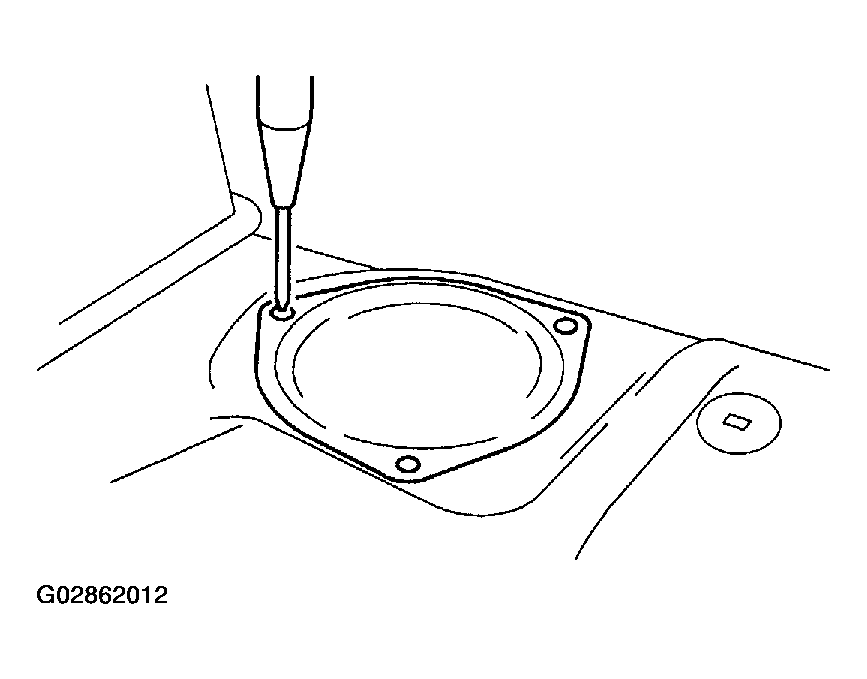

    Fig 2: Removing Service Hole Cover
    G02862012Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect connector from fuel sub meter.
  5. Disconnect fuel jet pump hose.

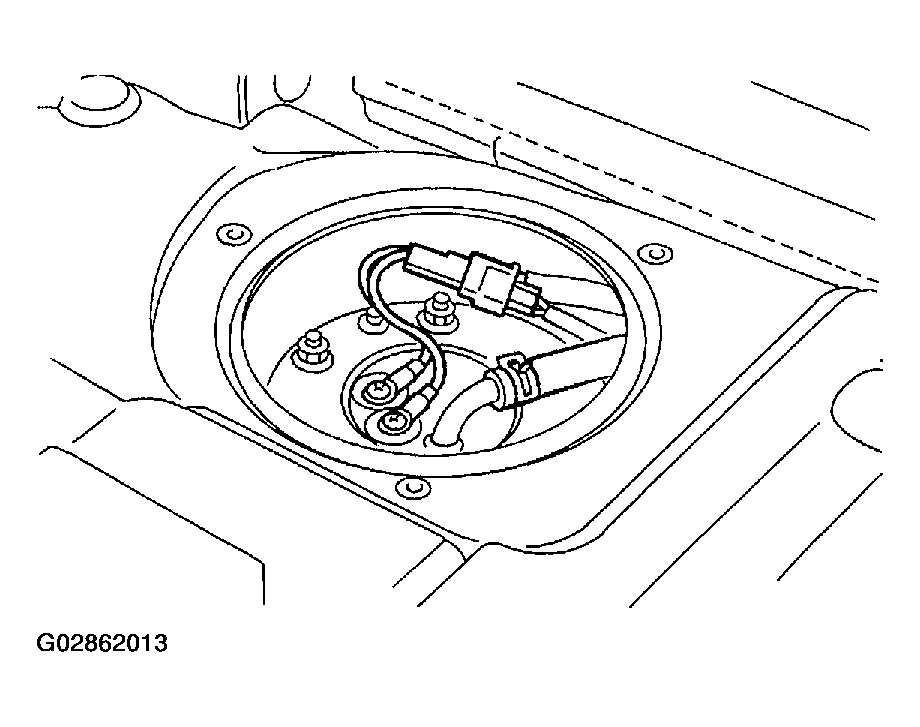

    Fig 3: Disconnecting Fuel Jet Pump Hose
    G02862013Courtesy of SUBARU OF AMERICA, INC.
  6. Remove bolts which install fuel sub meter unit on fuel tank.

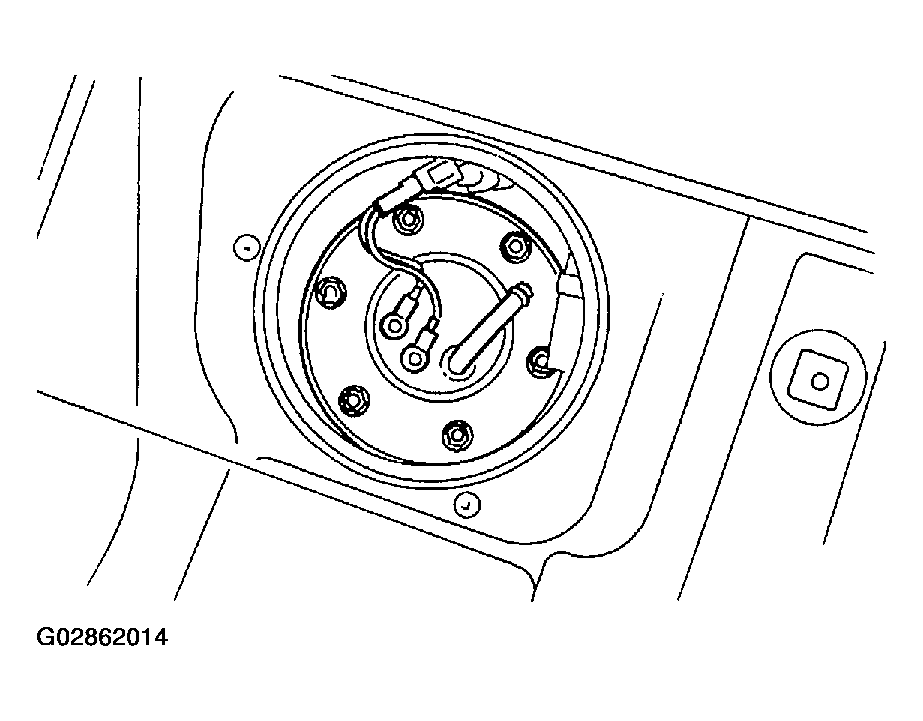

    Fig 4: Removing Fuel Sub Meter Unit Bolts
    G02862014Courtesy of SUBARU OF AMERICA, INC.
  7. Remove fuel sub meter unit.

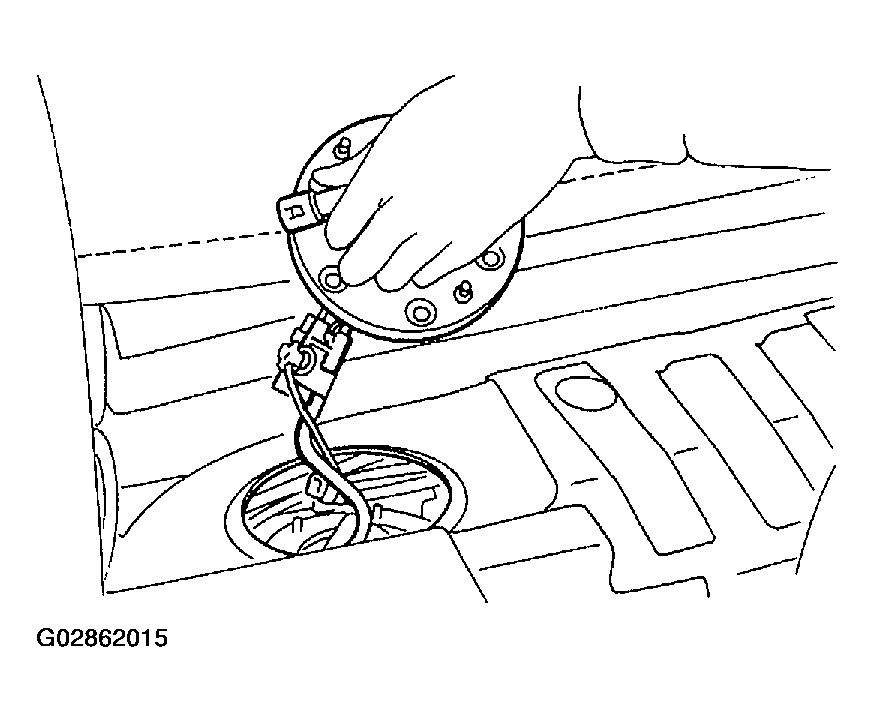

    Fig 5: Removing Fuel Sub Meter Unit
    G02862015Courtesy of SUBARU OF AMERICA, INC.
