Throttle Position Sensor: Installation

Install in the reverse order of removal.

Tightening torque: 1.6 N-m (0.16 kgf-m, 1.2 ft-lb)

CAUTION: When installing throttle position sensor, adjust to the specified data.

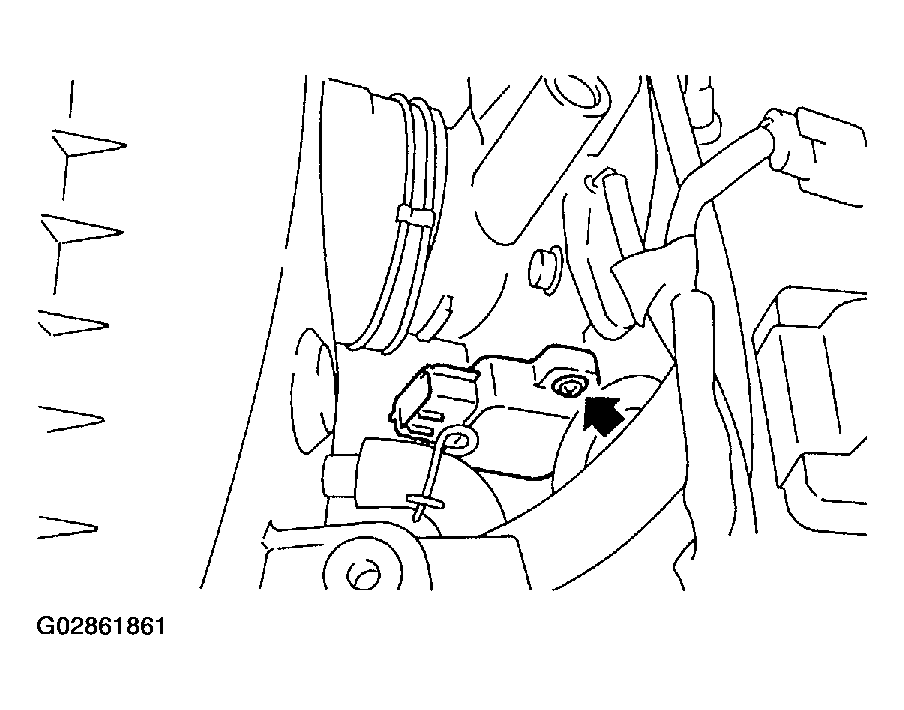

Fig 1: Installing Throttle Position Sensor

Courtesy of SUBARU OF AMERICA, INC.
