Home >> Subaru >> 2002 >> Impreza RS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> A/T Control Systems >> AT Shift Lock System >> Electrical Specification
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Electrical Specification

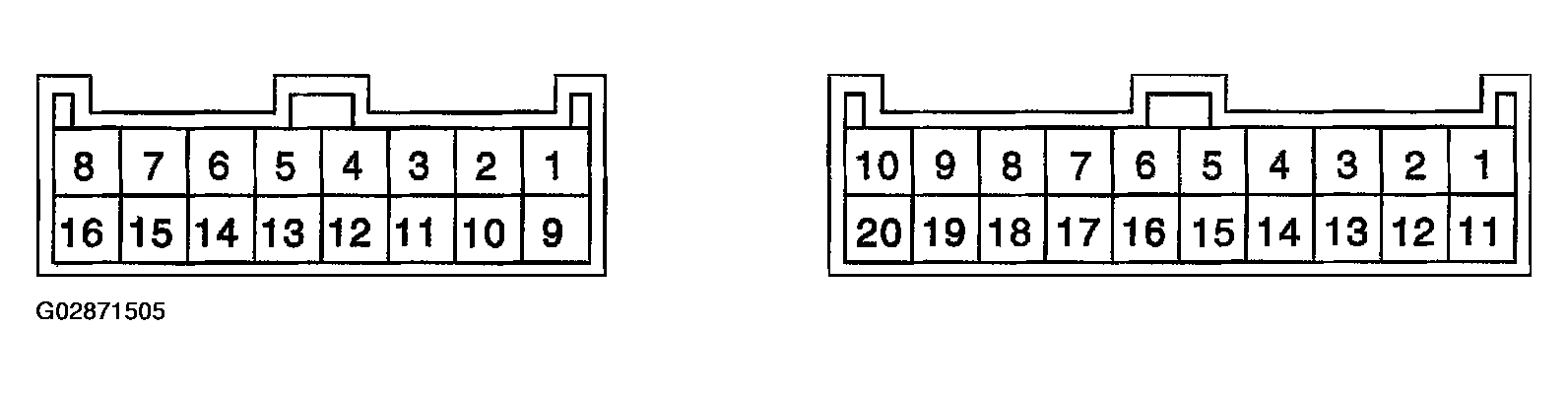

Fig 1: Identifying Terminals Of AT Shift Lock System
G02871505Courtesy of SUBARU OF AMERICA, INC.

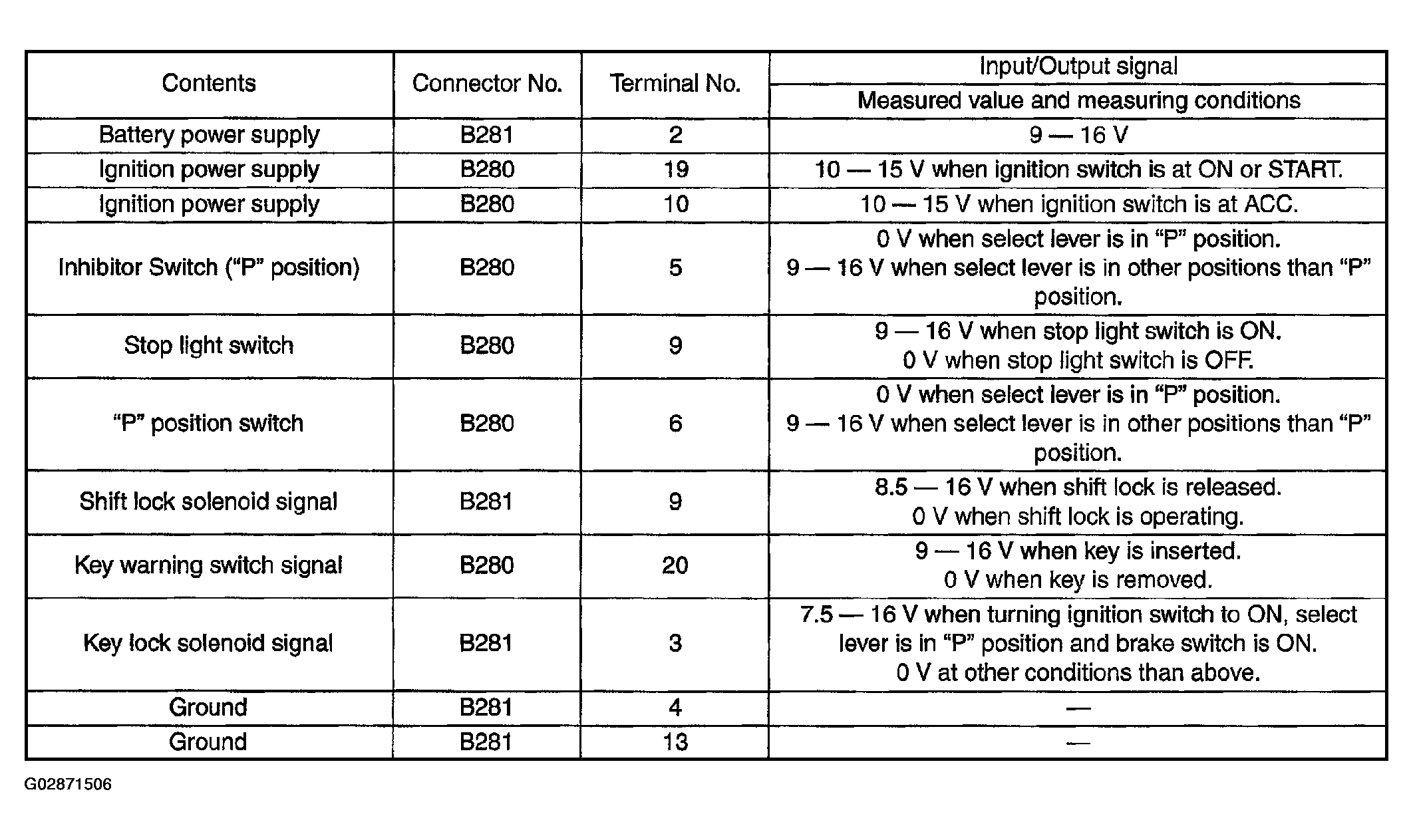

Fig 2: AT Shift Lock System Pin Voltage Chart
G02871506Courtesy of SUBARU OF AMERICA, INC.
