AT Shift Lock System: Schematic

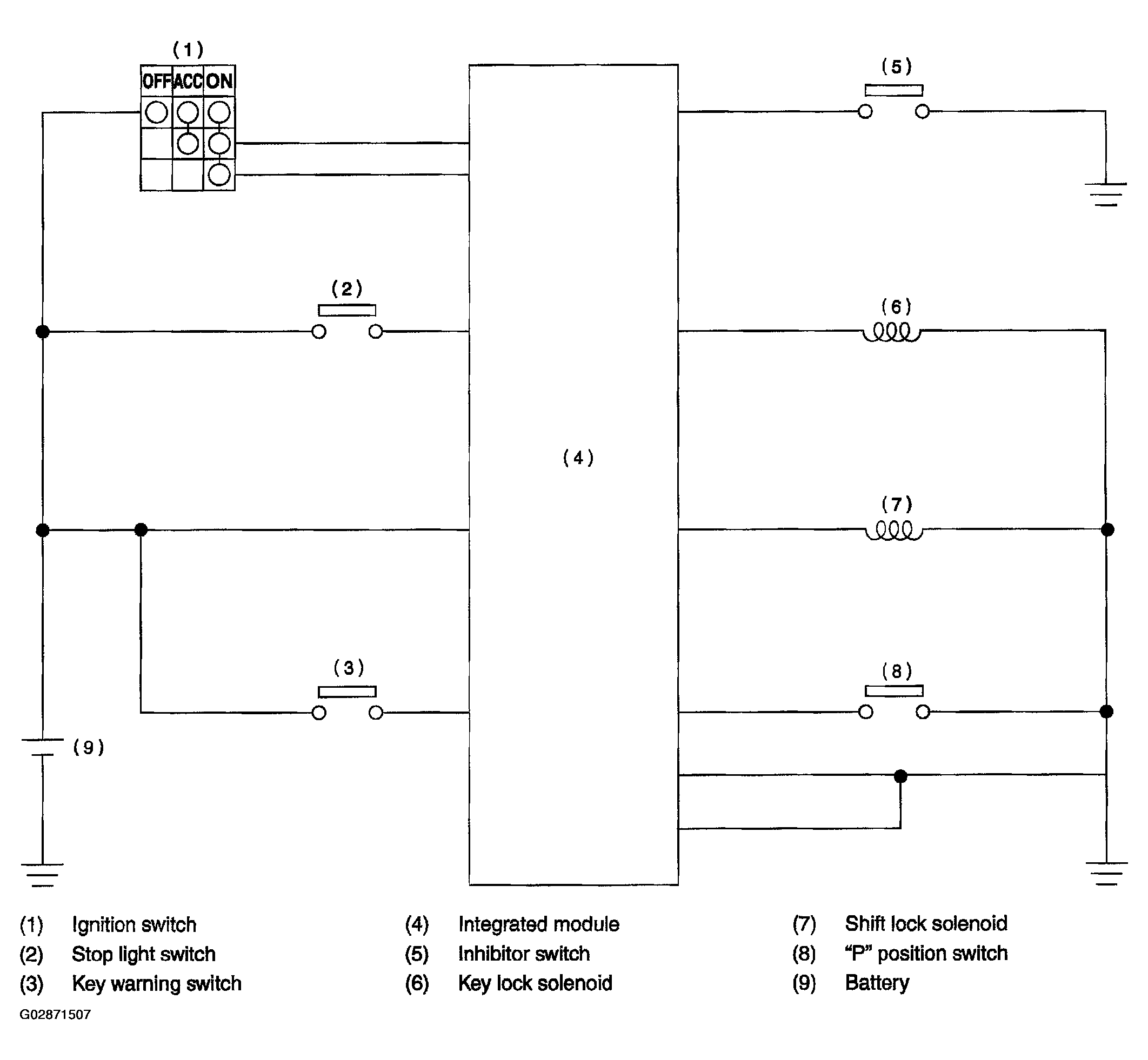

Fig 1: Schematic - AT Shift Lock System
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
