Integrated Module: Removal

Disconnect the ground terminal from battery.

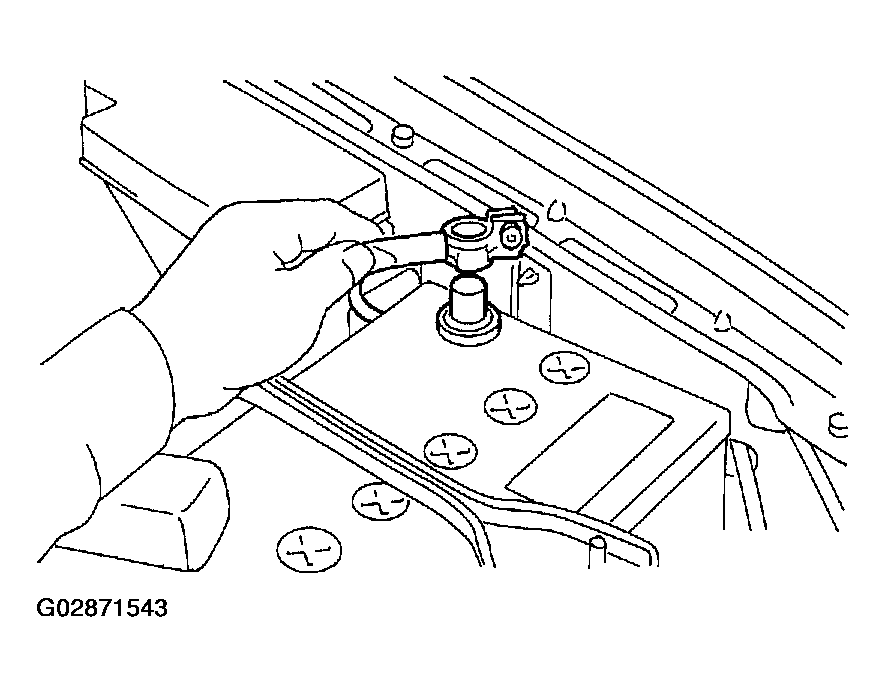

Fig 1: Disconnecting Ground Terminal From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower cover.

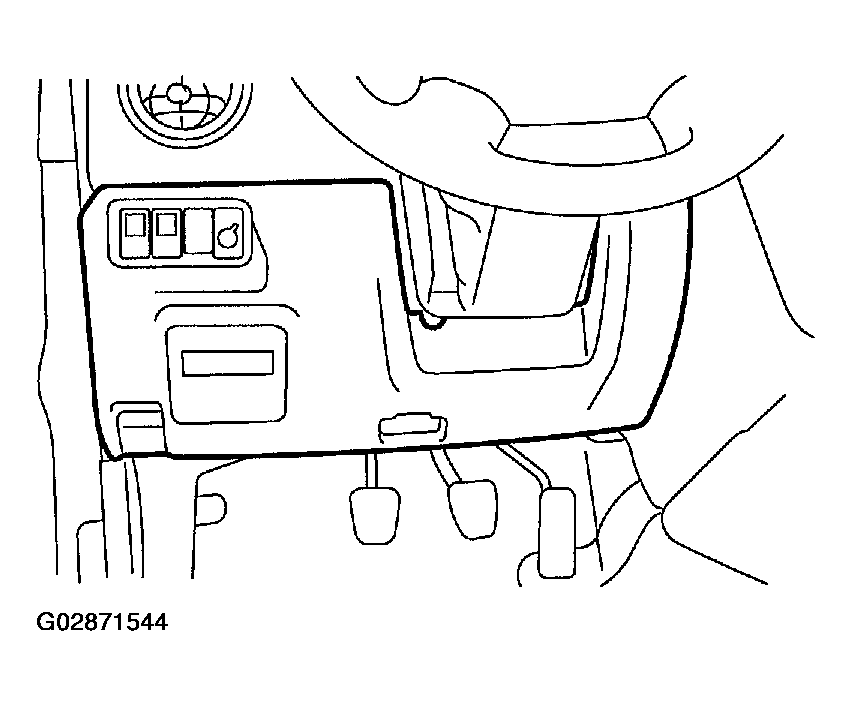

Fig 2: Removing Lower Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the knee bolster.

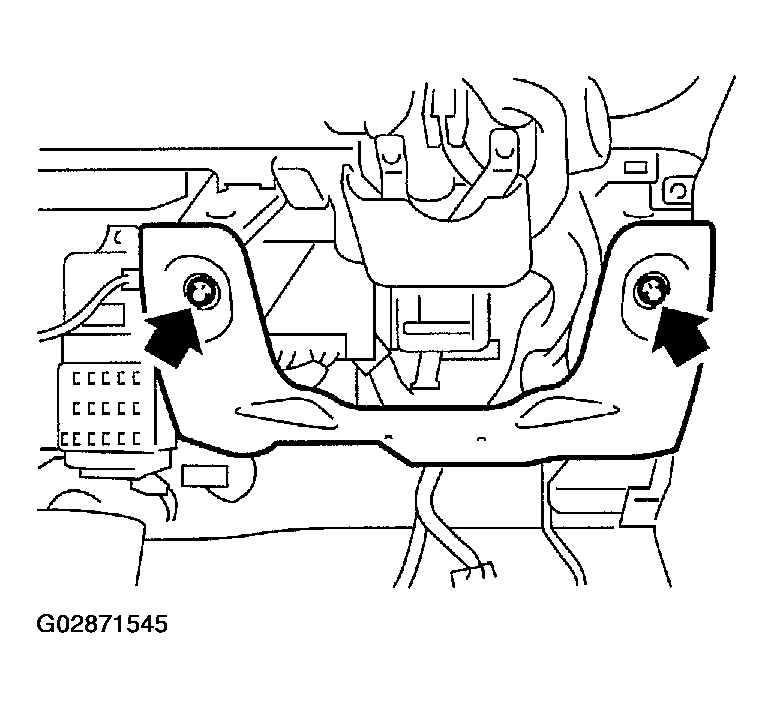

Fig 3: Removing Knee Bolster
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from integrated module.
Remove the integrated module.

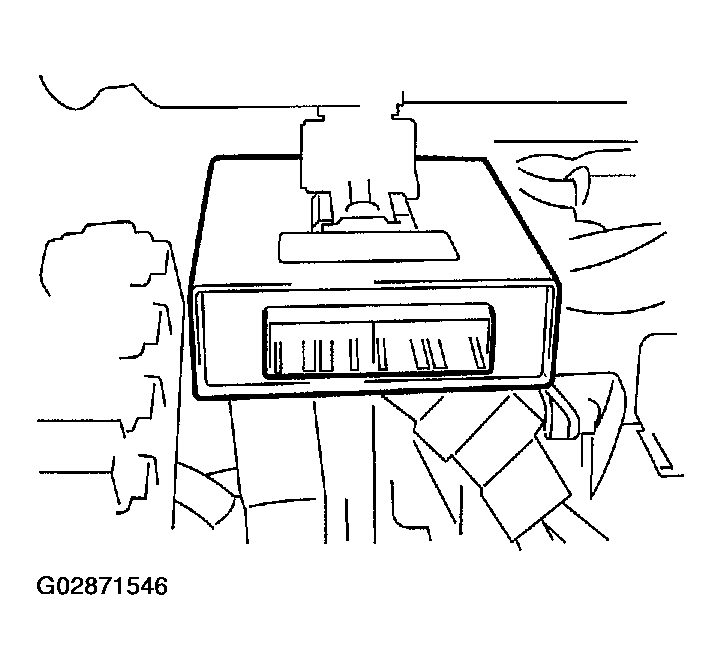

Fig 4: Disconnecting Connector From Integrated Module
Courtesy of SUBARU OF AMERICA, INC.
