Select Lever: Disassembly

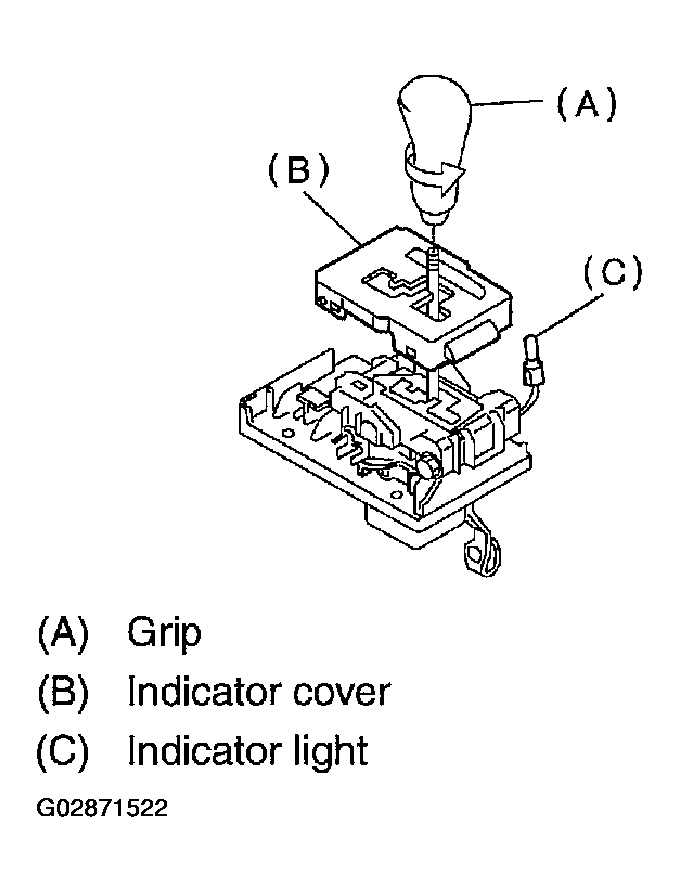

Remove the grip.
Remove the indicator light and then remove the indicator cover.
NOTE: Be careful not to break the indicator light during removal.

Fig 1: Removing Indicator Light And Indicator Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the slider.

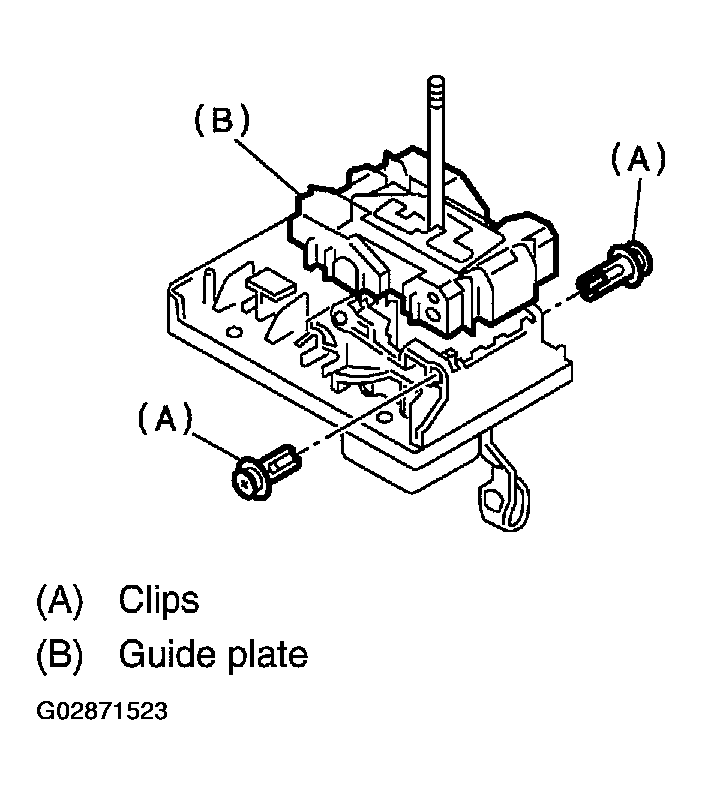

Remove the clips and then remove the guide plate.

Fig 2: Removing Clips And Guide Plate
Courtesy of SUBARU OF AMERICA, INC.

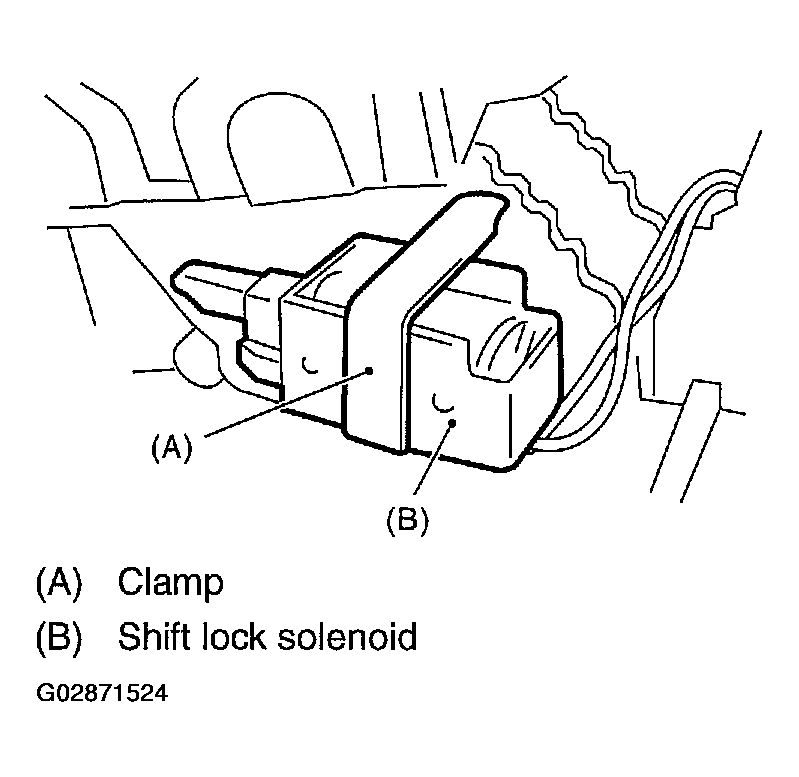

Remove the clamp, and shift lock solenoid.

Fig 3: Removing Clamp And Shift Lock Solenoid
Courtesy of SUBARU OF AMERICA, INC.

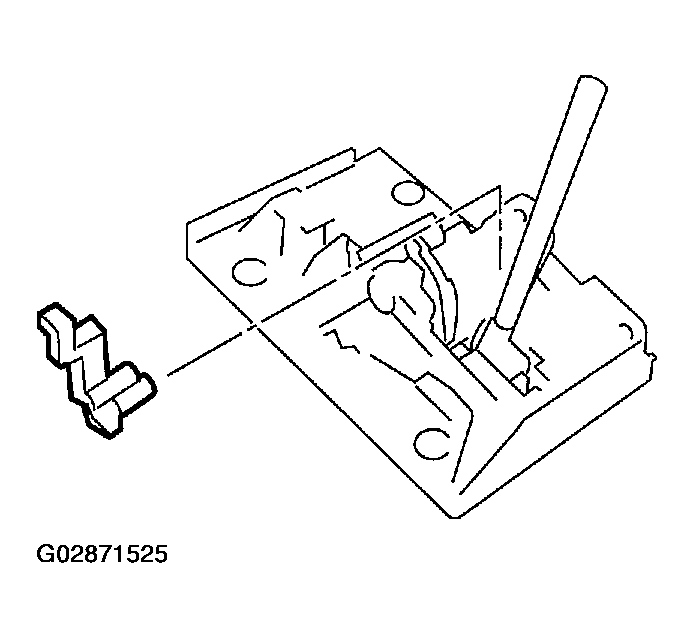

Remove the lock plate.

Fig 4: Removing Lock Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the pattern plate.

Fig 5: Removing Pattern Plate
Courtesy of SUBARU OF AMERICA, INC.

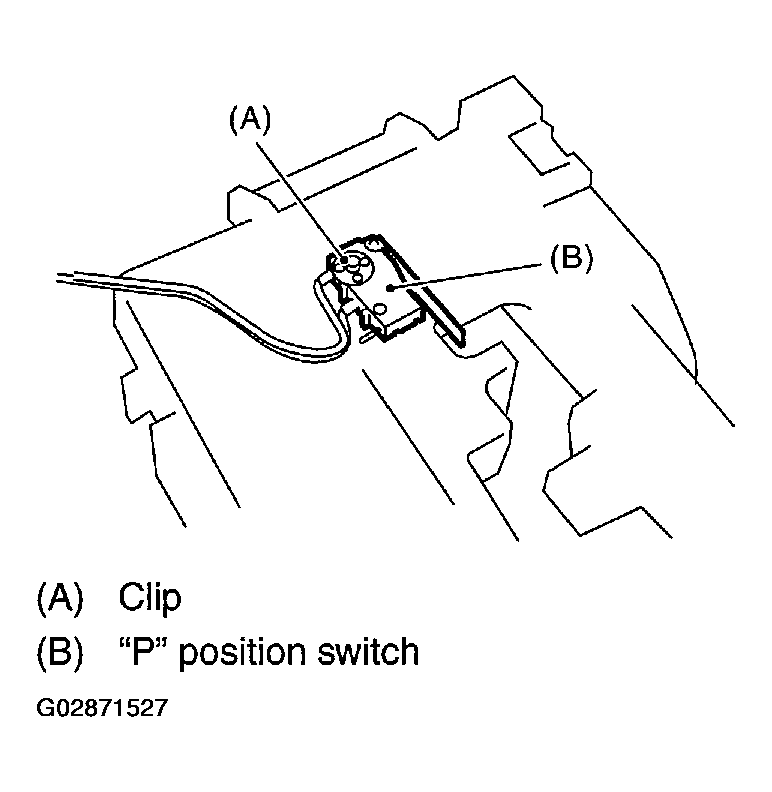

Remove the clip and remove the "P" position switch.

Fig 6: Removing Clip And Position Switch
Courtesy of SUBARU OF AMERICA, INC.

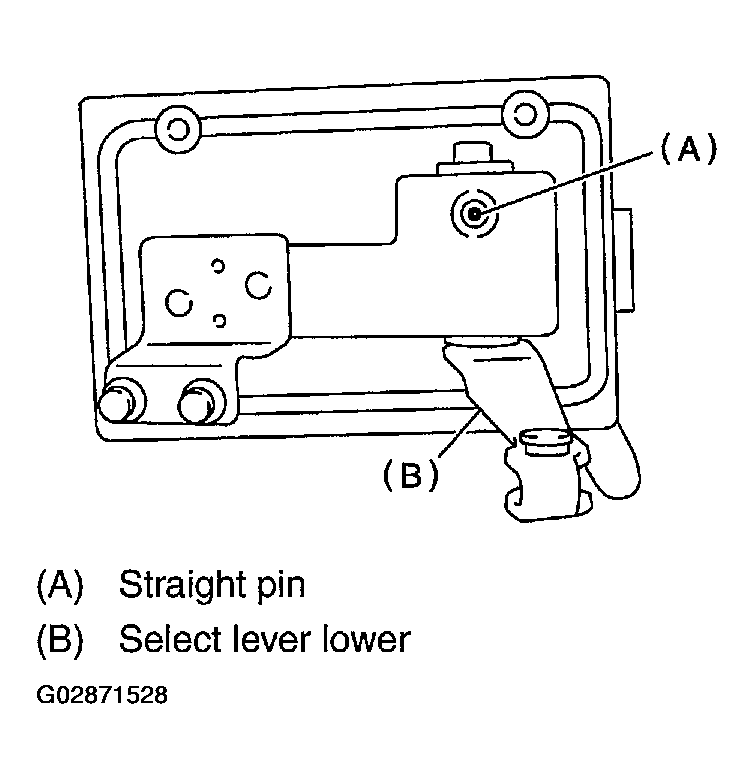

Remove the cap and then extract straight pin.

Fig 7: Removing Cap And Extracting Straight Pin
Courtesy of SUBARU OF AMERICA, INC.

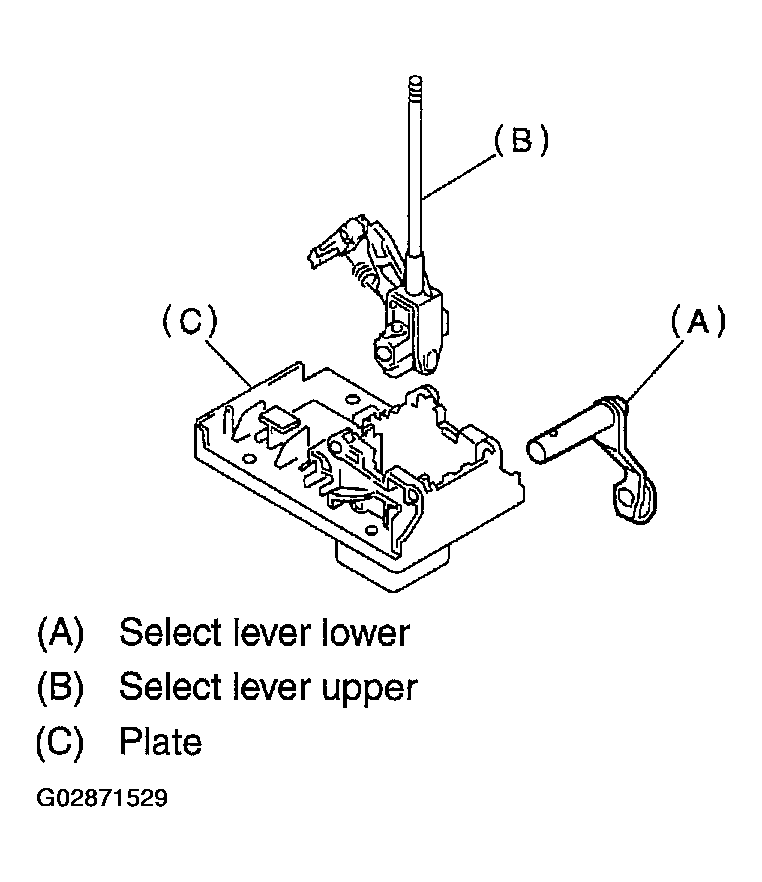

Remove the select lever lower then take away the select lever upper from plate.

Fig 8: Removing Select Lever Lower
Courtesy of SUBARU OF AMERICA, INC.

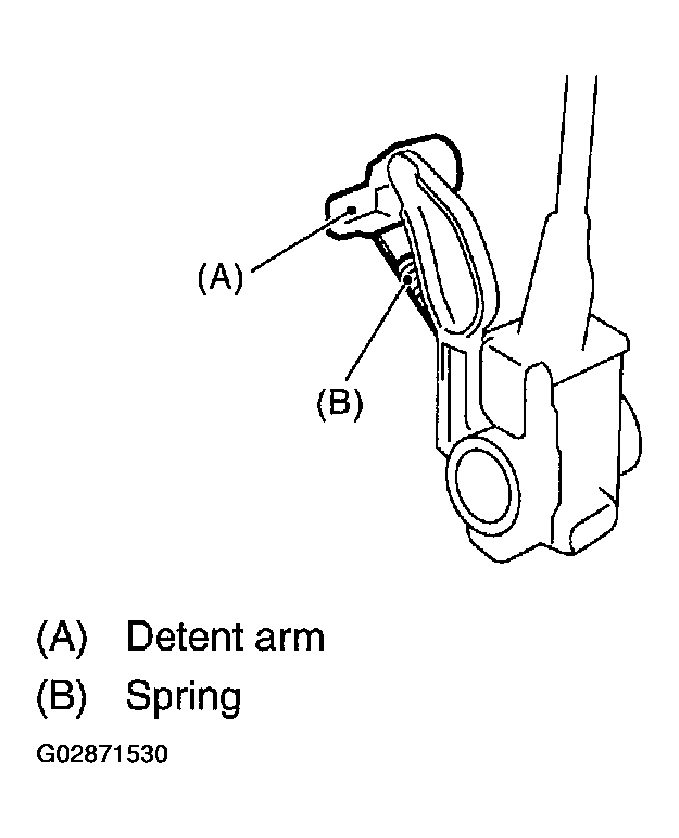

Remove the spring and remove the detent arm.

Fig 9: Removing Spring And Detent Arm
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion.
