ABS Control Module and Hydraulic Control Unit (ABSCM&H/U): Inspection: Notes

1. Check connected and fixed condition of connector.
2. Check specifications of the mark with ABSCM&H/U.

MARK SPECIFICATION CHART

Mark	Model
CG	AT (Except OUTBACK)
CH	MT (Except OUTBACK)
CI	AT (OUTBACK)
CJ	MT (OUTBACK)

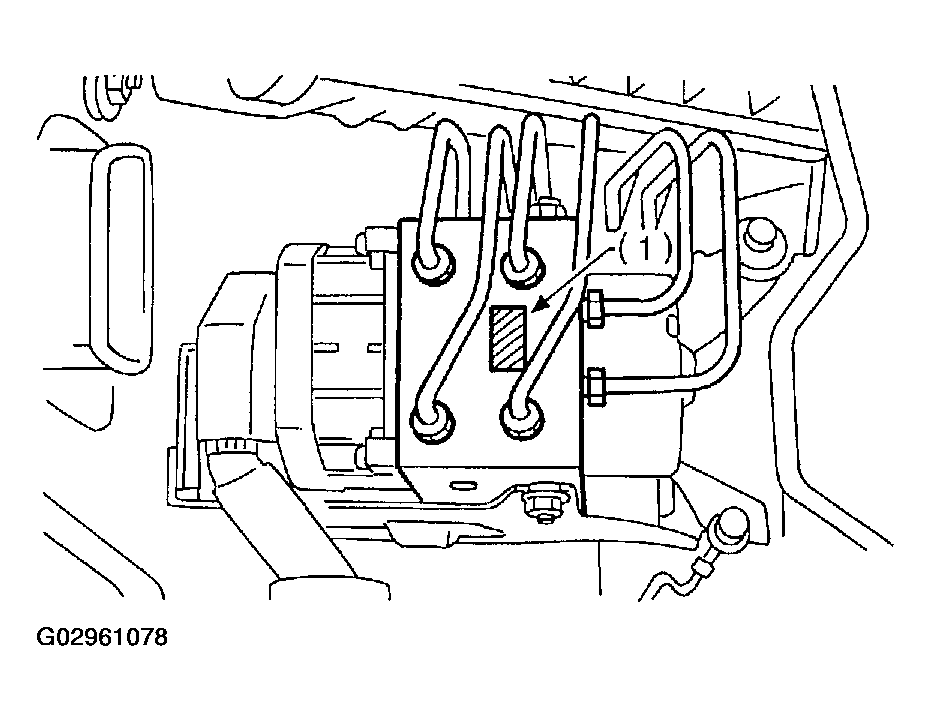

Fig 1: Locating Mark On Bracket

Courtesy of SUBARU OF AMERICA, INC.
