G Sensor: Removal

Disconnect battery ground cable.

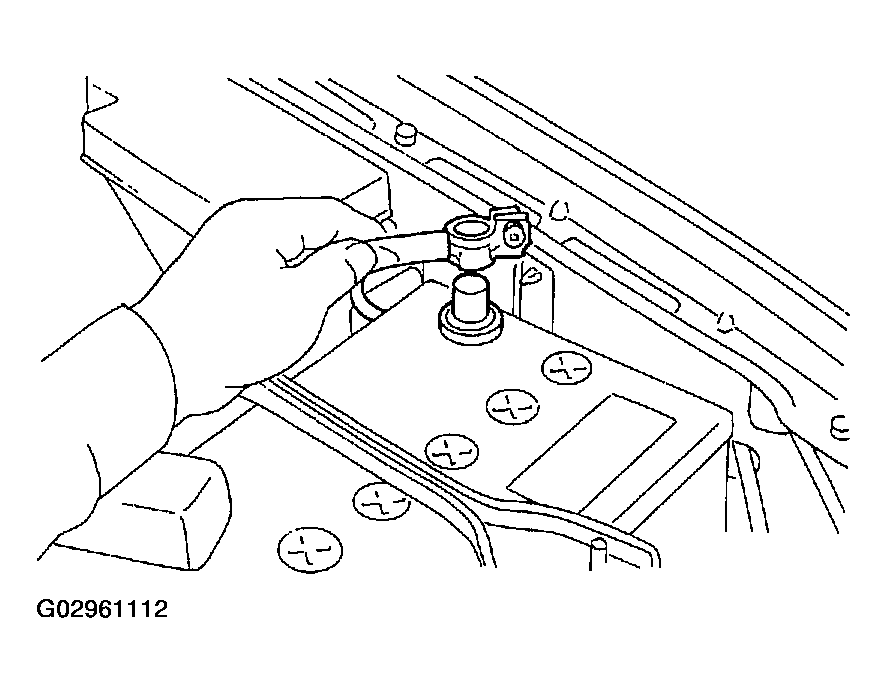

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove console cover. Refer to CONSOLE BOX .
Disconnect connector from G sensor.
Remove G sensor from body.
CAUTION: Do not drop or bump G sensor.

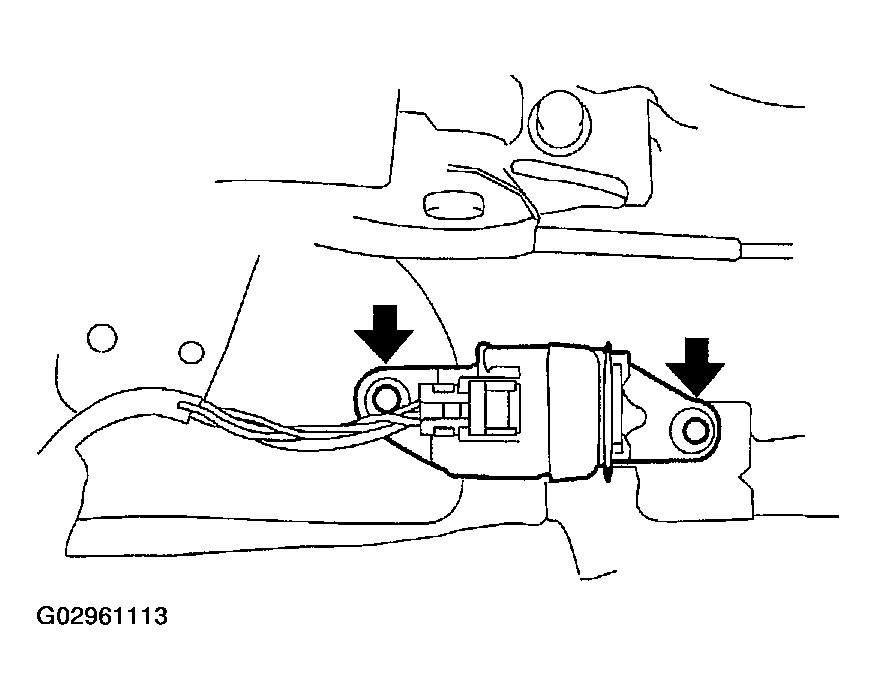

Fig 2: Disconnecting Connector From G Sensor
Courtesy of SUBARU OF AMERICA, INC.
