Abs Sensor

Check pole piece of ABS sensor for foreign particles or damage. If necessary, clean pole piece or replace ABS sensor.

Measure ABS sensor resistance.

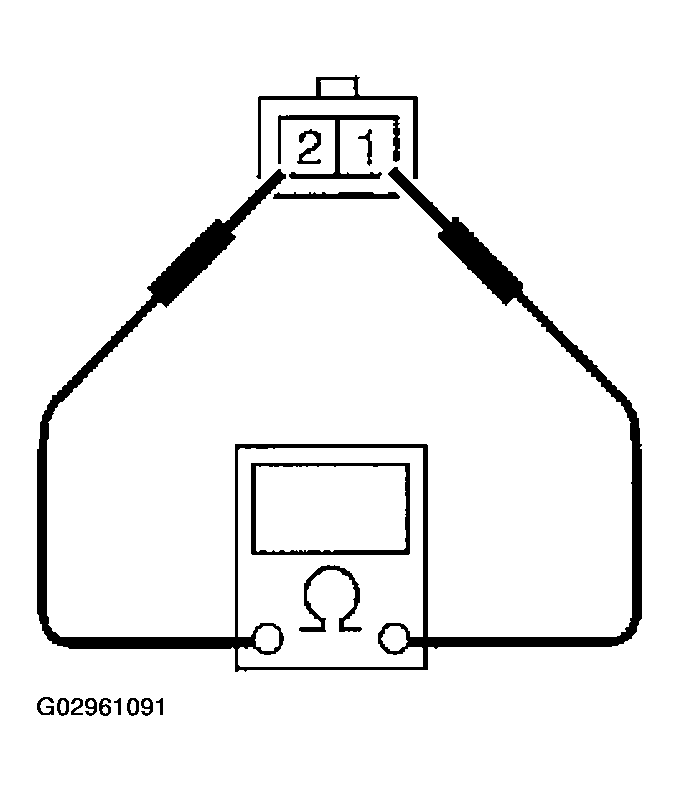

Fig 1: Measuring ABS Sensor Resistance

Courtesy of SUBARU OF AMERICA, INC.

ABS SENSOR RESISTANCE

Terminal No.	Standard
1 and 2	1.25+/-0.25 kΩ

CAUTION: If resistance is outside the standard value, replace ABS sensor with a new one.

NOTE: Check ABS sensor cable for discontinuity. If necessary, replace with a new one.
