Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

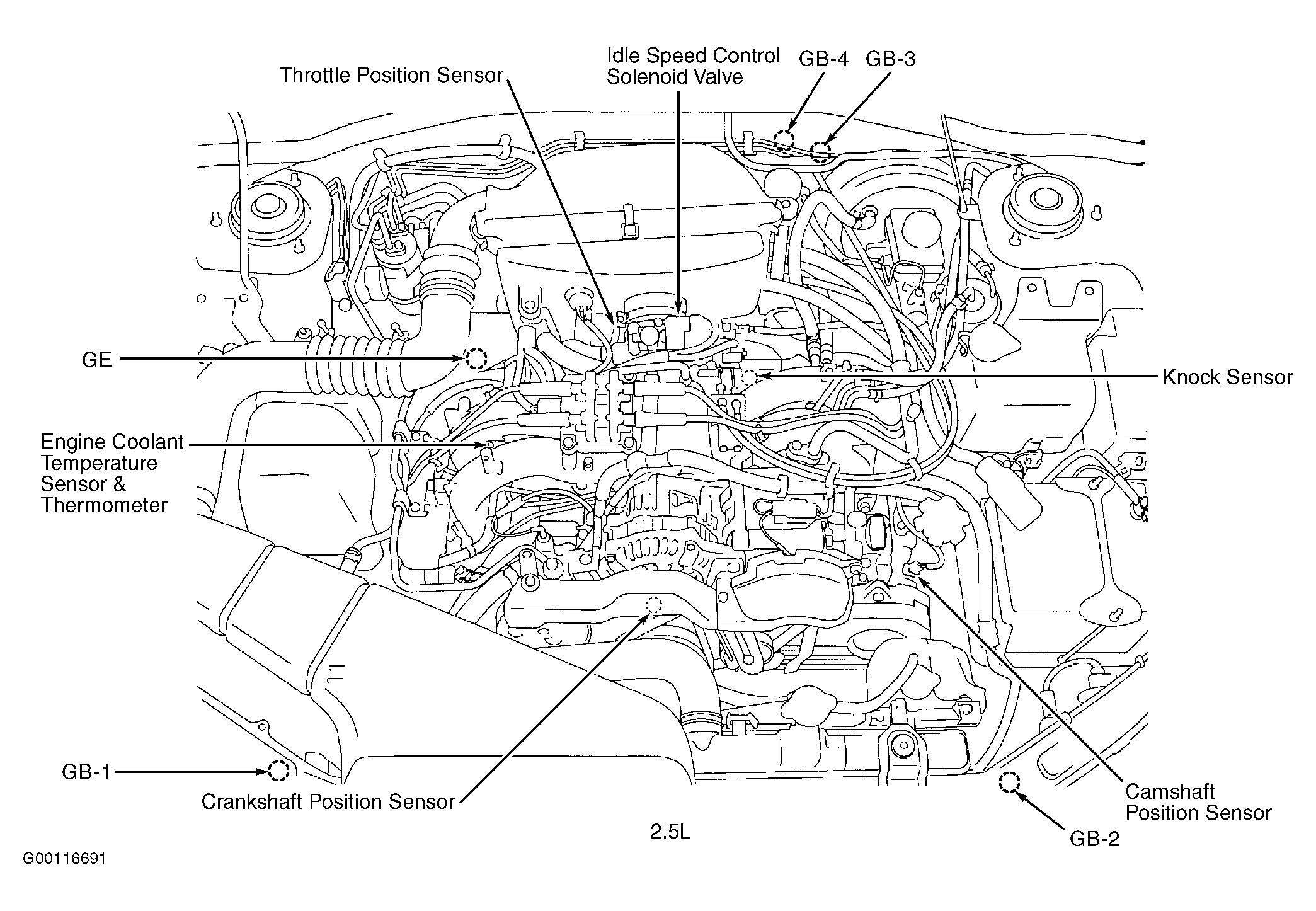

Fig 1: Engine Compartment (2.5L)

Courtesy of SUBARU OF AMERICA, INC.

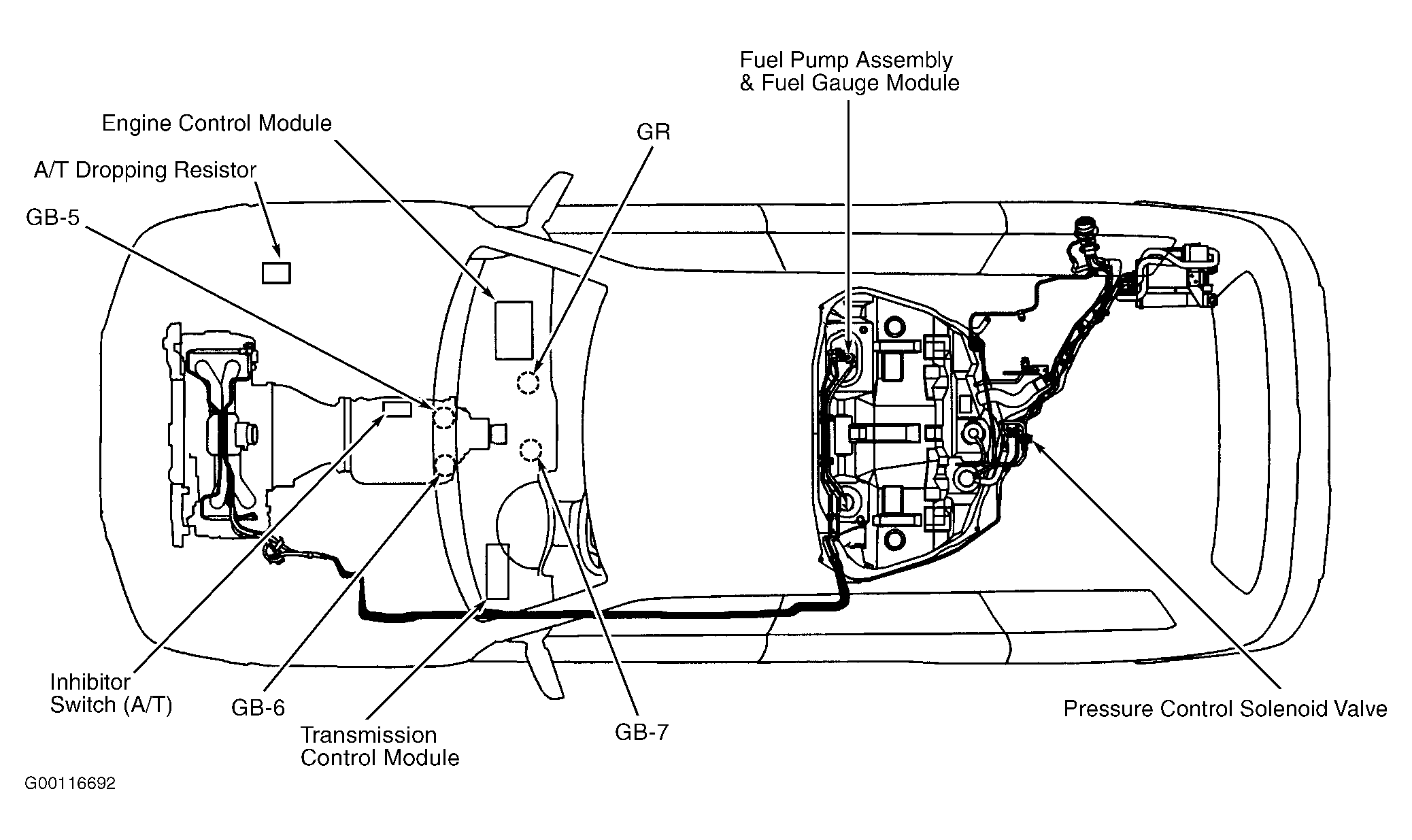

Fig 2: Vehicle Overview

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Vehicle Overview

Courtesy of SUBARU OF AMERICA, INC.
