Cruise Control Module: Service and Repair

Cruise Control Module

REMOVAL

1. Disconnect ground cable from battery.
2. Remove glove box.

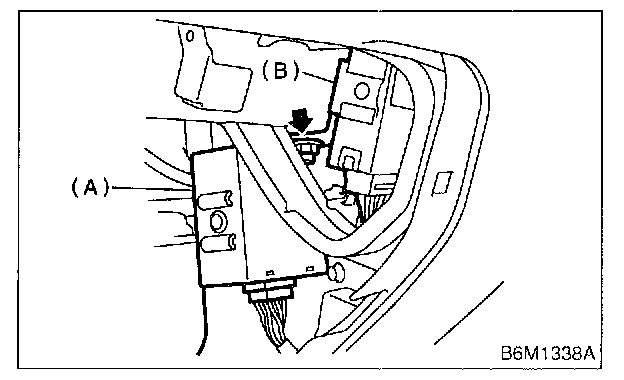

3. Remove nut, then remove cruise control module (A) and the other electrical control module (B) while disconnecting connector.
4. Disconnect cruise control module and the other electrical control module.

INSTALLATION

Install is in the reverse order of removal.
