Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature Sensor

REMOVAL

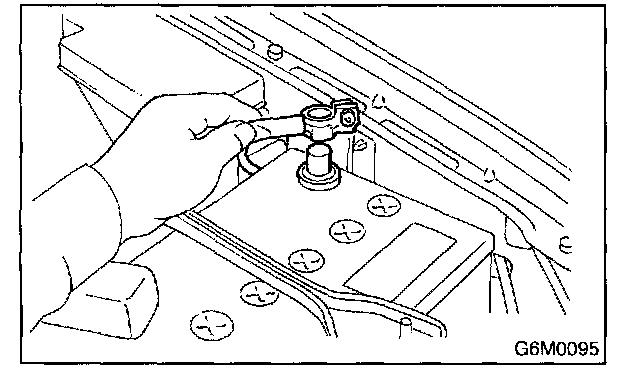

1. Disconnect battery ground cable.
2. Disconnect connector from engine coolant temperature sensor.

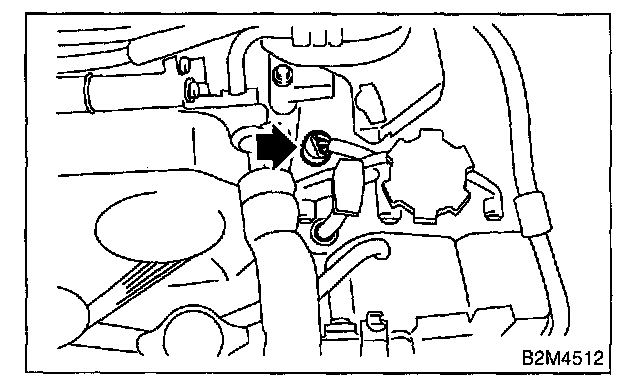

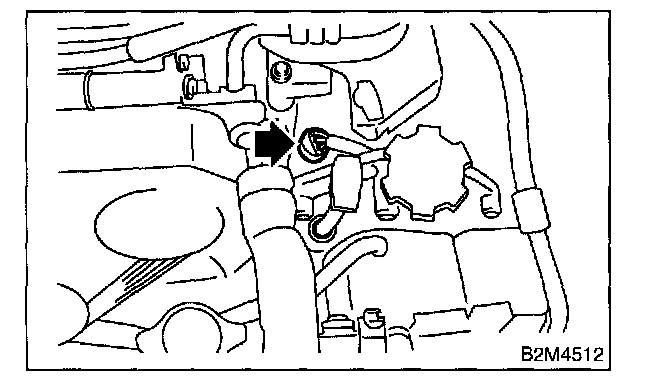

3. Remove engine coolant temperature sensor.

INSTALLATION
Install in the reverse order of removal.




Tightening Torque: 16 Nm (0.16 kgf-m, 1.2 ft-lb)
