Ignition Control Module: Locations

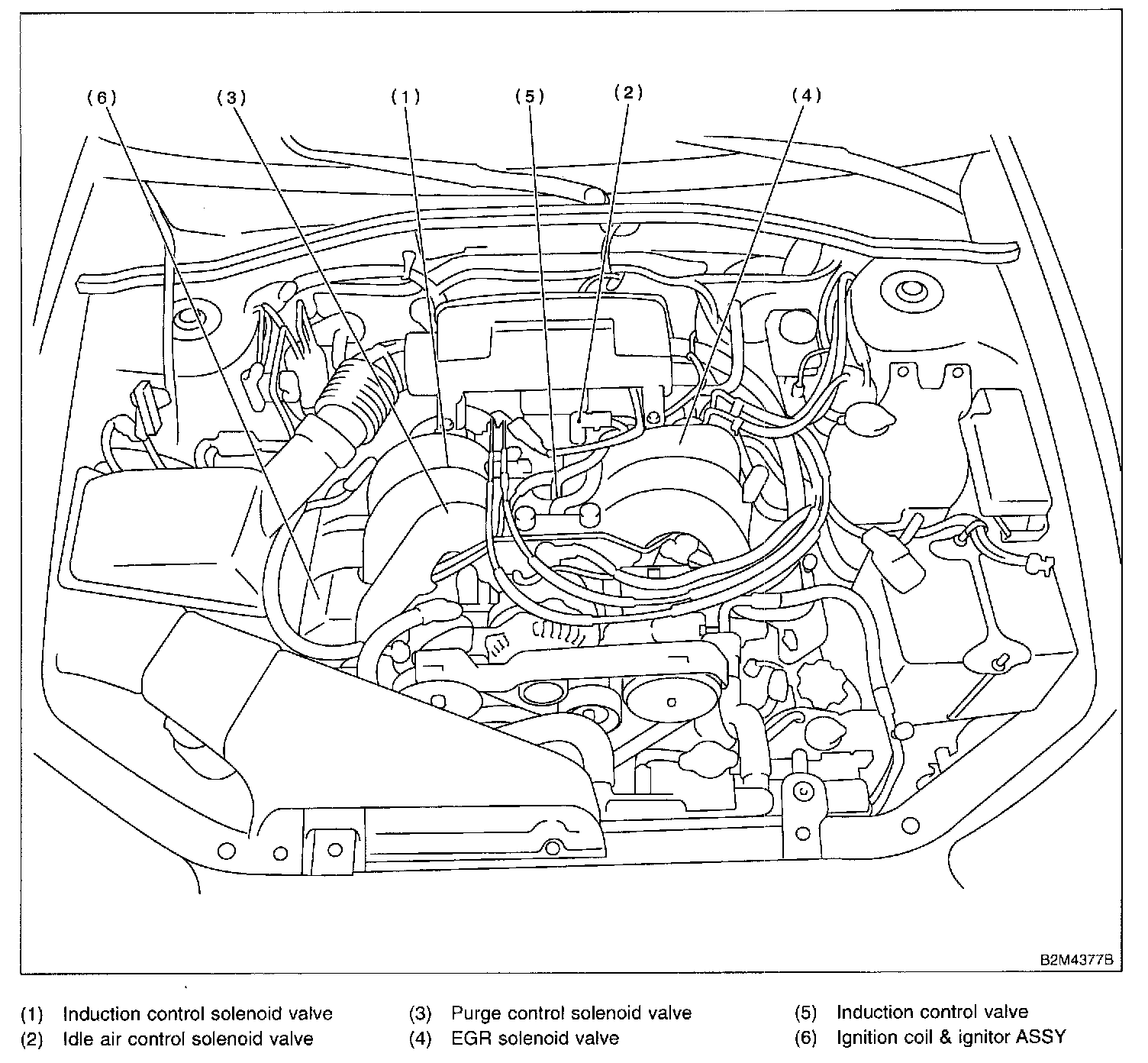

Solenoid Valve, Emission Control System Parts And Ignition System Parts Part 1:

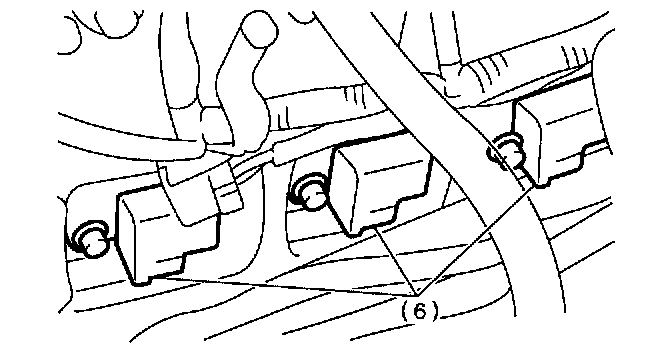

Ignition Coil & Ignitor ASSY:
