A/T Torque Data

4-spd A/T, Transmission Mounting:

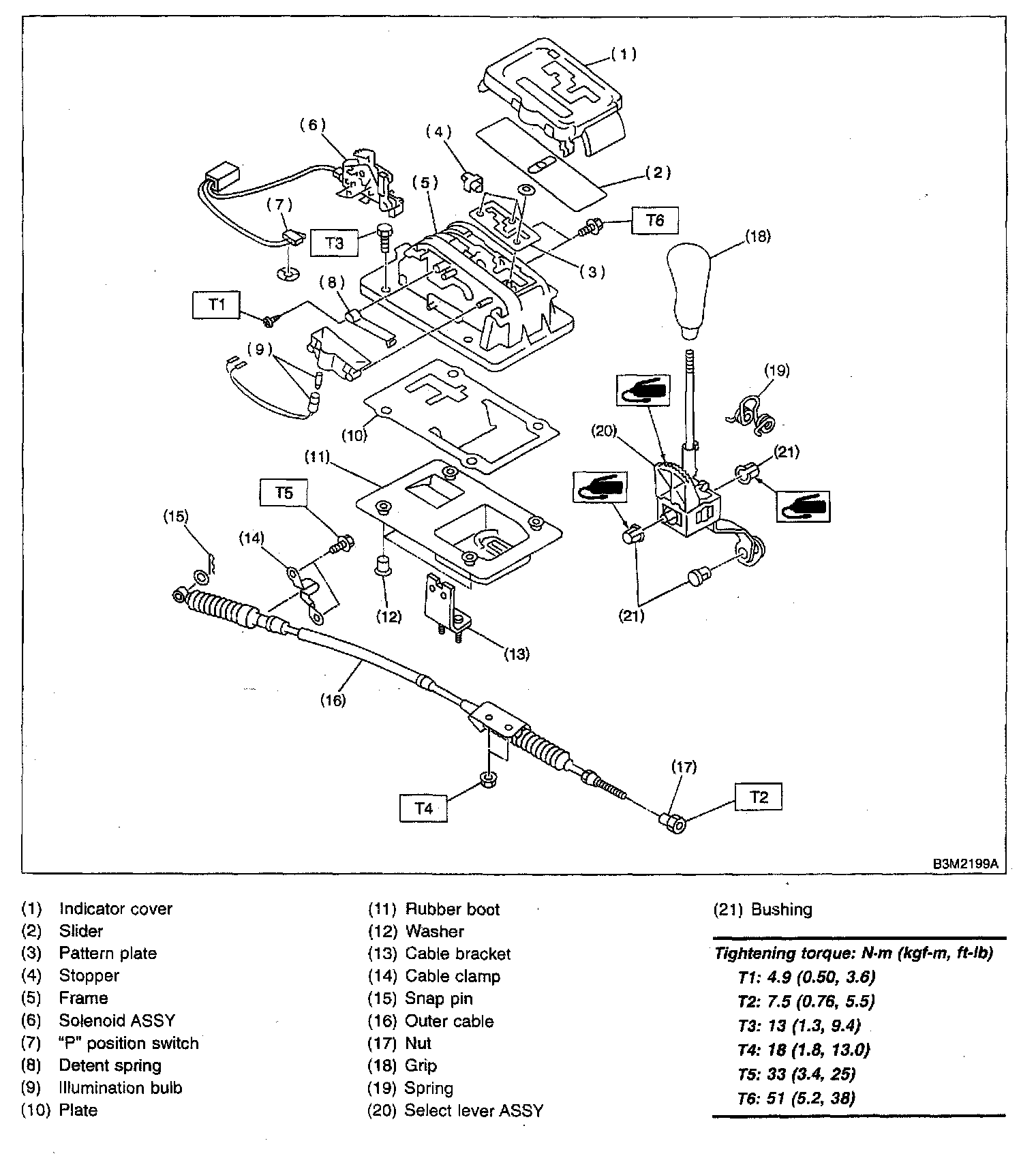

4-spd A/T, Transmission Control System (Select Lever):
