General Specifications

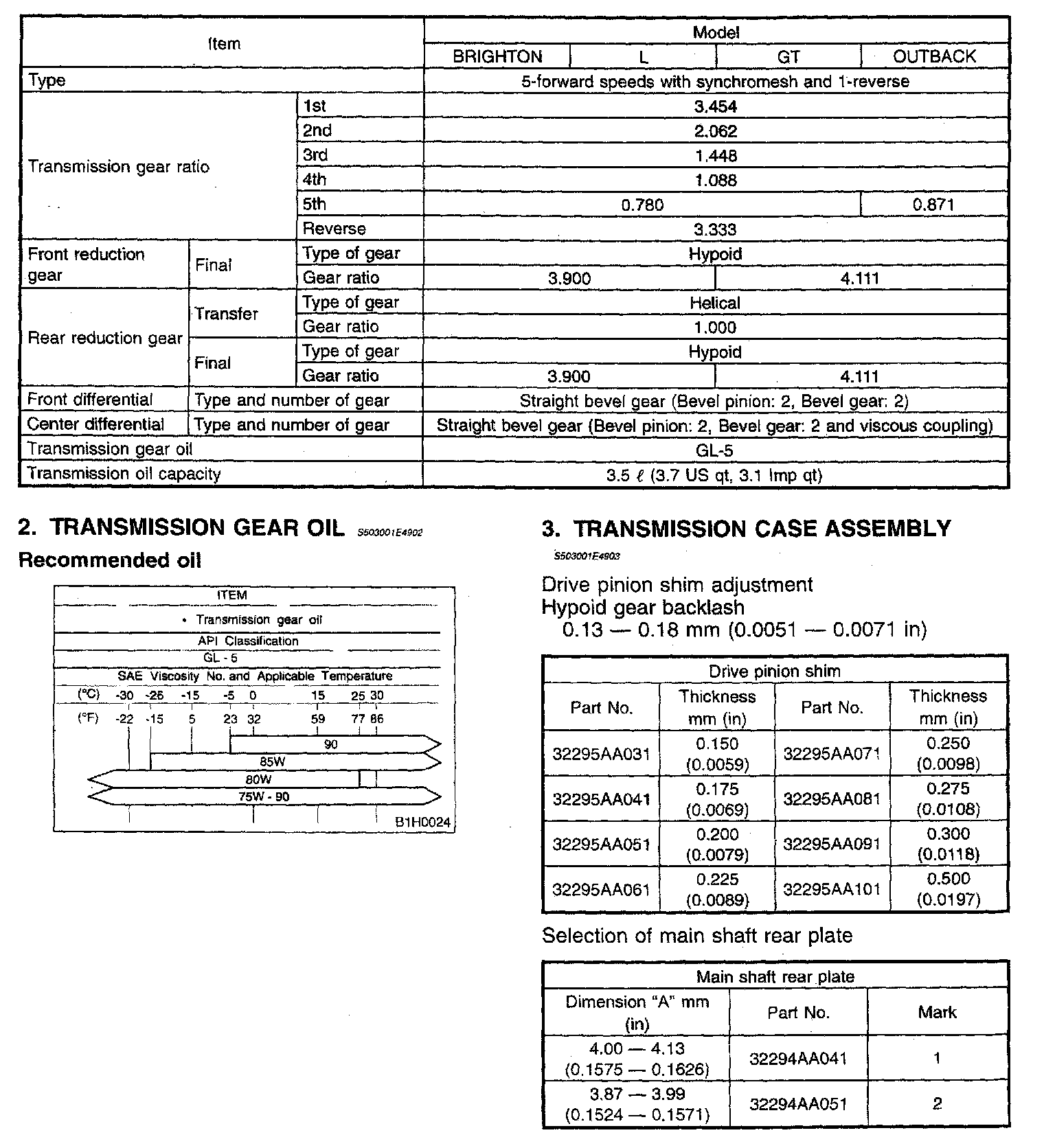

5-spd M/T, Transmission Service/Overhaul Data:





5-spd M/T, Transmission Service/Overhaul Data:





5-spd M/T, Transmision Service/Overhaul Data:

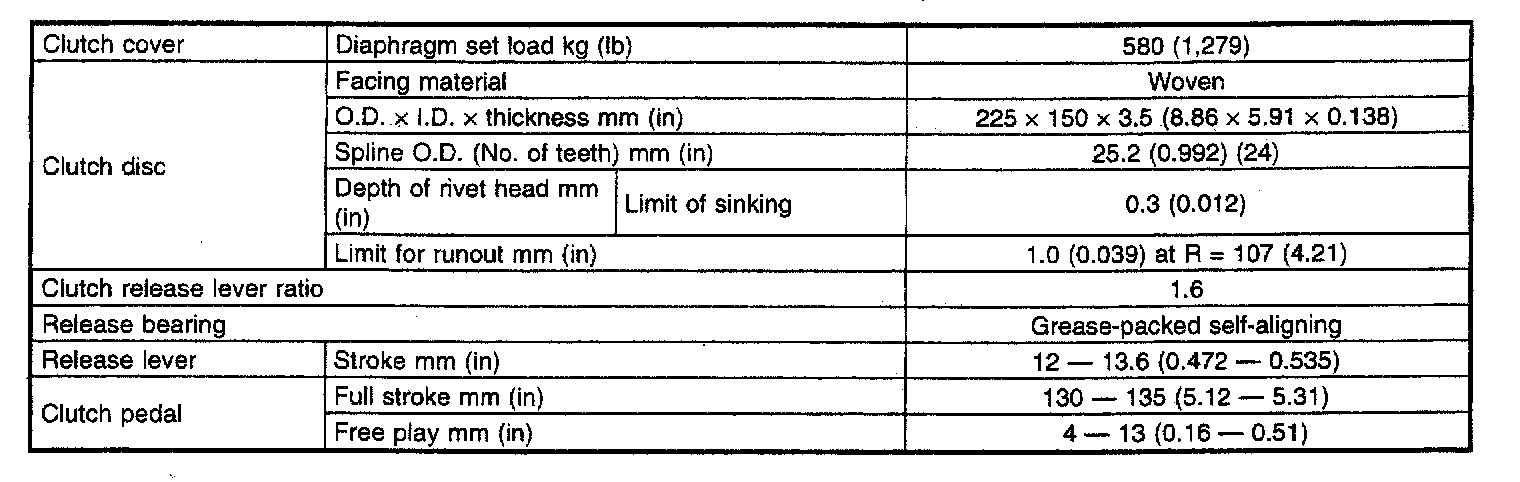

5-spd M/T, Transmission Clutch Service Data:
