Control Module: Service and Repair

REMOVAL

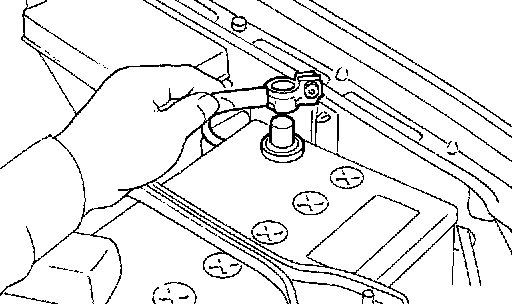

1. Disconnect battery ground cable.

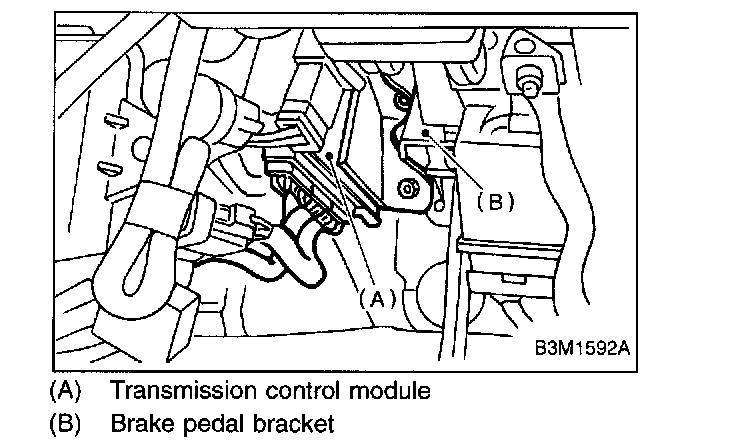

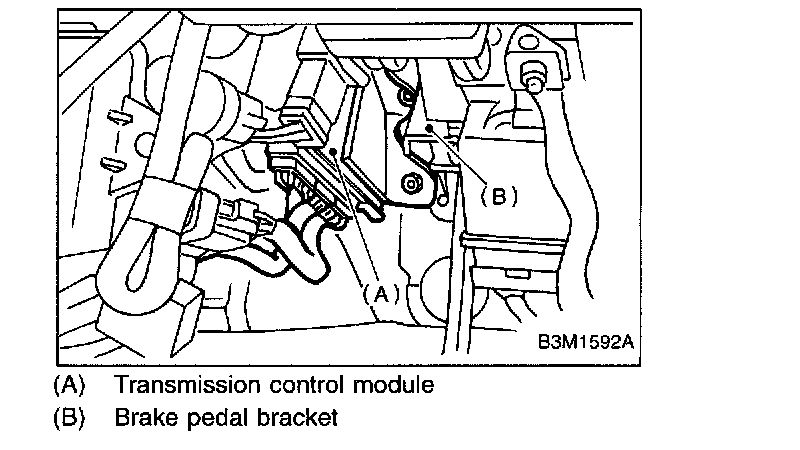

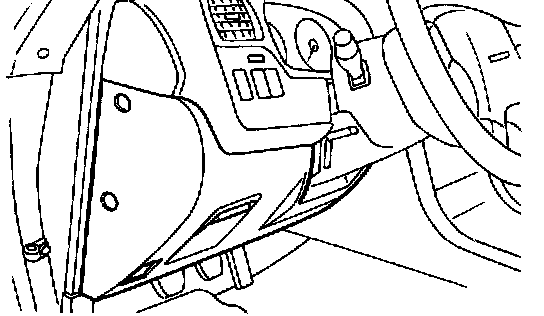

2. Remove lower cover and then disconnect connector.
3. Disconnect connectors from transmission control module.

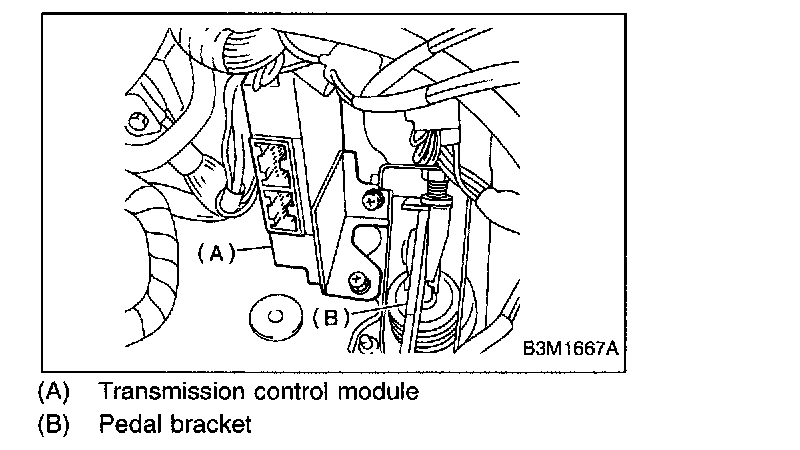

MPT model

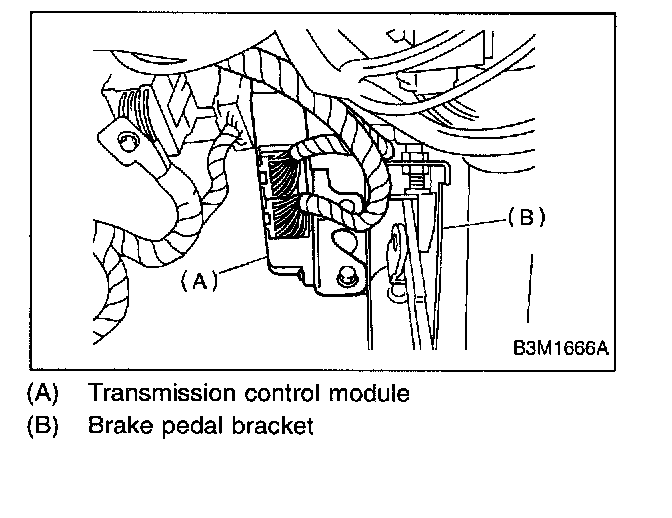

VT model
4. Remove transmission control module.
INSTALLATION
1. Install transmission control module.
Tightening torque: 7.5 Nm (0.76 kgf-cm, 5.5 ft. lbs.)





MPT model





VT model
2. Connect connectors to transmission control module.
3. Install in the reverse order of removal.
