Shift Interlock Control Module: Service and Repair

REMOVAL

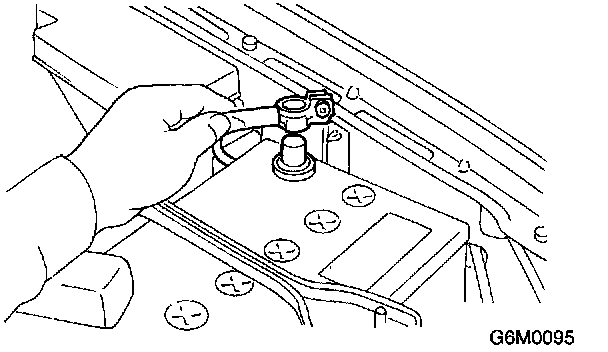

1. Disconnect battery ground cable.

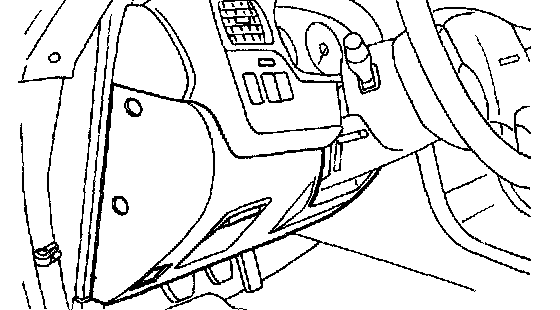

2. Remove the lower cover.
3. Remove knee bolster.





4. Disconnect connector from AT shift lock control module.

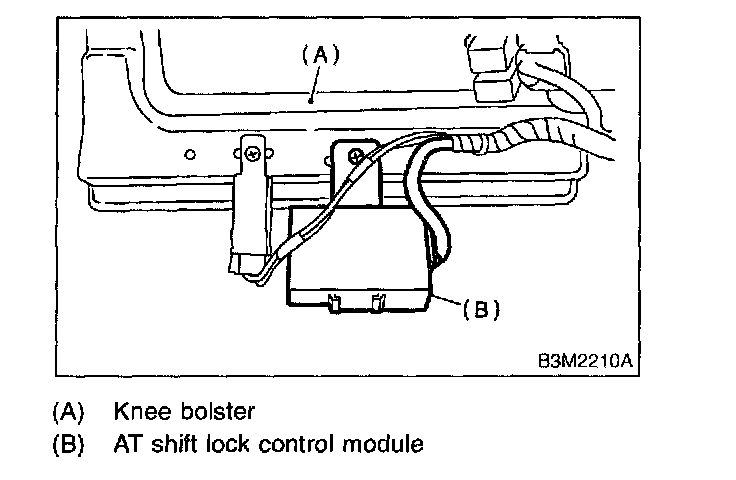

5. Remove the AT shift lock control module from knee bolster.

INSTALLATION
Install in the reverse order of removal.
