Abs Sequence Control With Diagnosis Connector

Connect diagnosis terminals to terminals No. 5 and No. 8 of the diagnosis connector beside driver's seat heater unit.

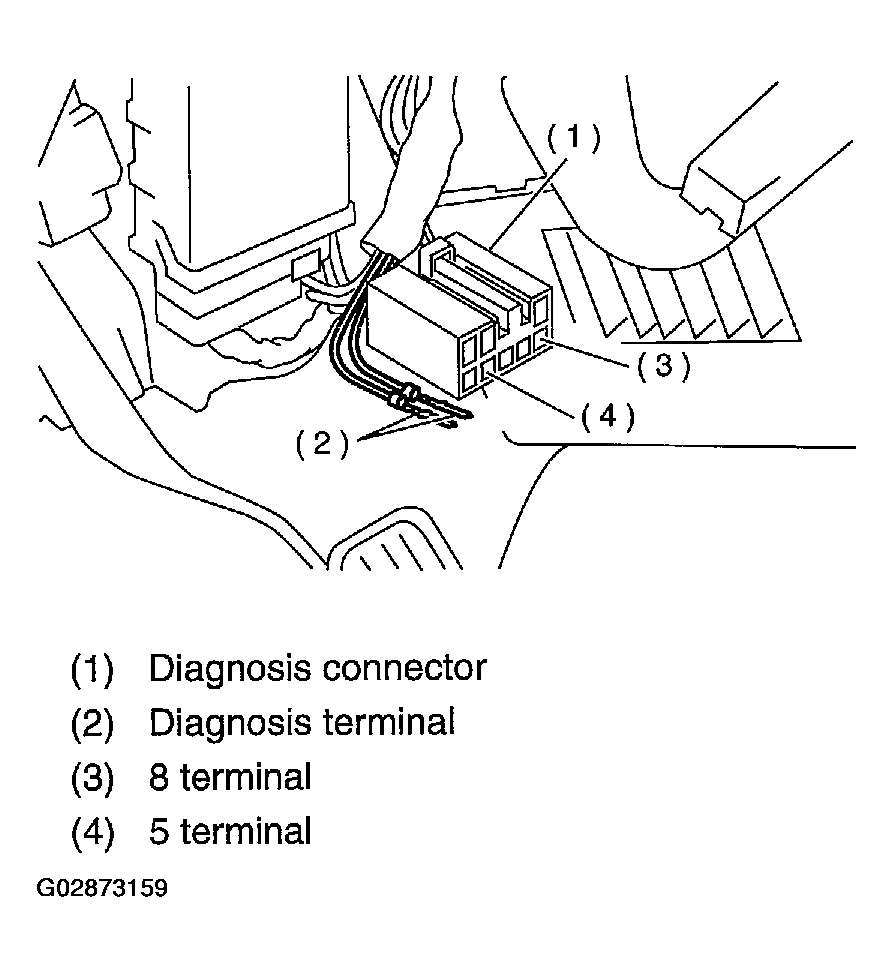

Fig 1: Connecting Diagnosis Terminals To Terminals No. 5 & No. 8

Courtesy of SUBARU OF AMERICA, INC.

Set the speed of all wheels at 2. 75 km/h (2 MPH) or less.
Turn ignition switch OFF.
Within 0. 5 seconds after the ABS warning light goes out, depress the brake pedal and hold it immediately after ignition switch is turned to ON.
CAUTION: Do not depress the clutch pedal.
NOTE:
- When the ignition switch is set to on, the brake pedal must not be depressed.
- Engine must not operate.
After completion of ABS sequence control, turn ignition switch OFF.
