Abs Sensor

  1. Check pole piece of ABS sensor for foreign particles or damage. If necessary, clean pole piece or replace ABS sensor.
  2. Measure ABS sensor resistance.

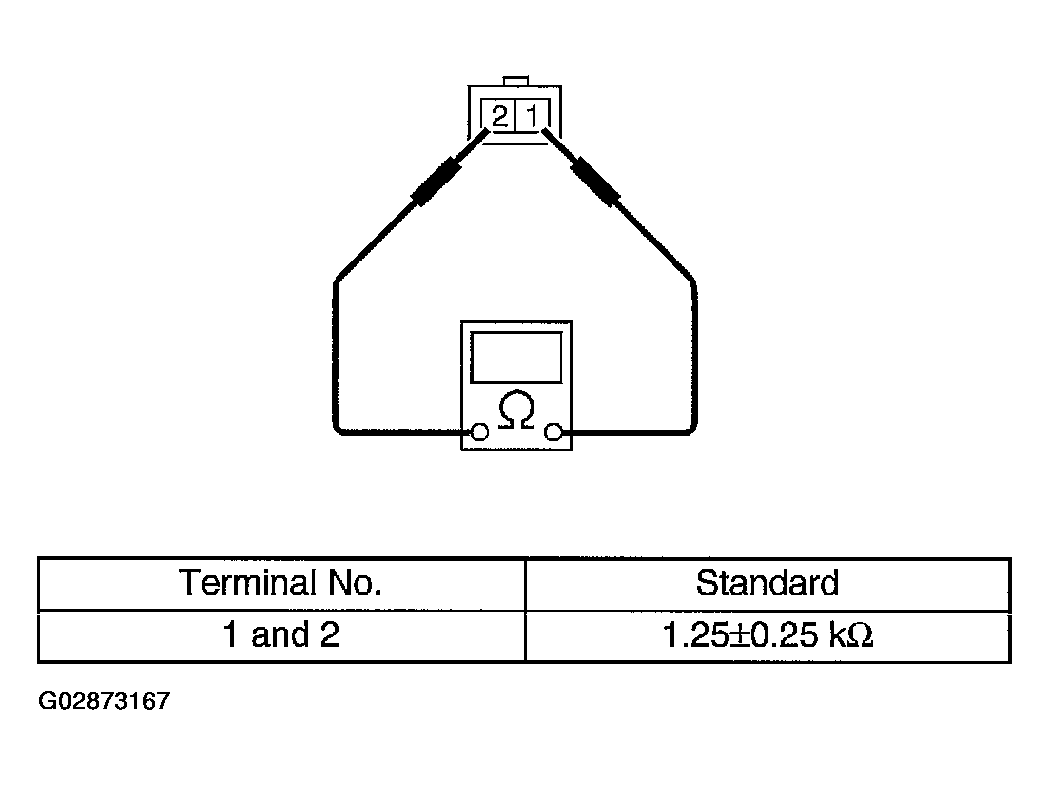

    Fig 1: Measuring ABS Sensor Resistance
    G02873167Courtesy of SUBARU OF AMERICA, INC.
    CAUTION: If resistance is outside the standard value, replace ABS sensor with new one.
    NOTE: Check ABS sensor cable for discontinuity. If necessary, replace with a new one.
