Front ABS Sensor: Removal

  1. Disconnect battery ground cable.
  2. Disconnect front ABS sensor connector located next to front strut mounting house in engine compartment.
  3. Remove bolts which secure sensor harness to strut.

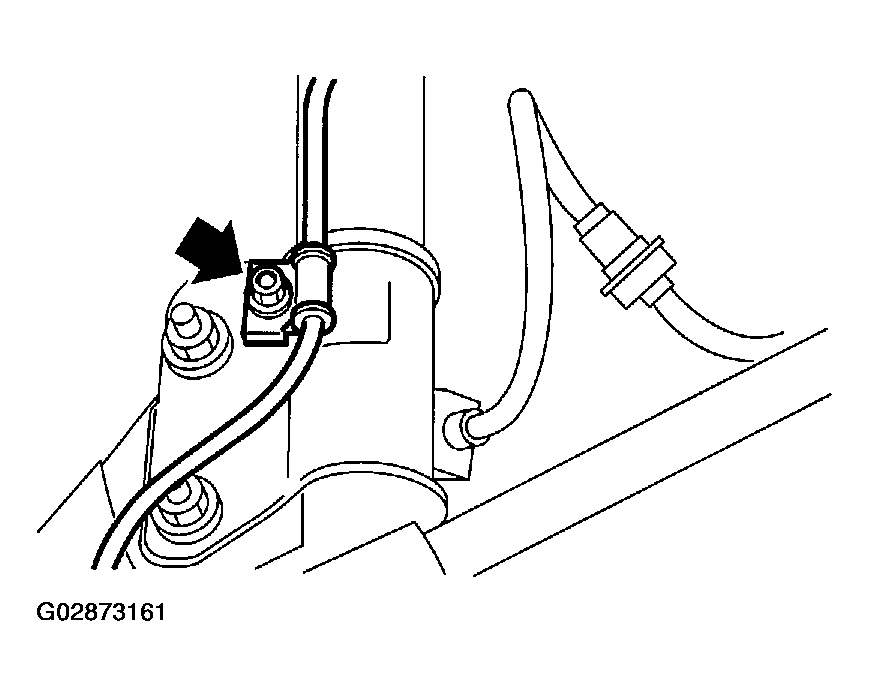

    Fig 1: Removing Bolt Securing Harness To Strut
    G02873161Courtesy of SUBARU OF AMERICA, INC.
  4. Remove bolts which secure sensor harness to body.

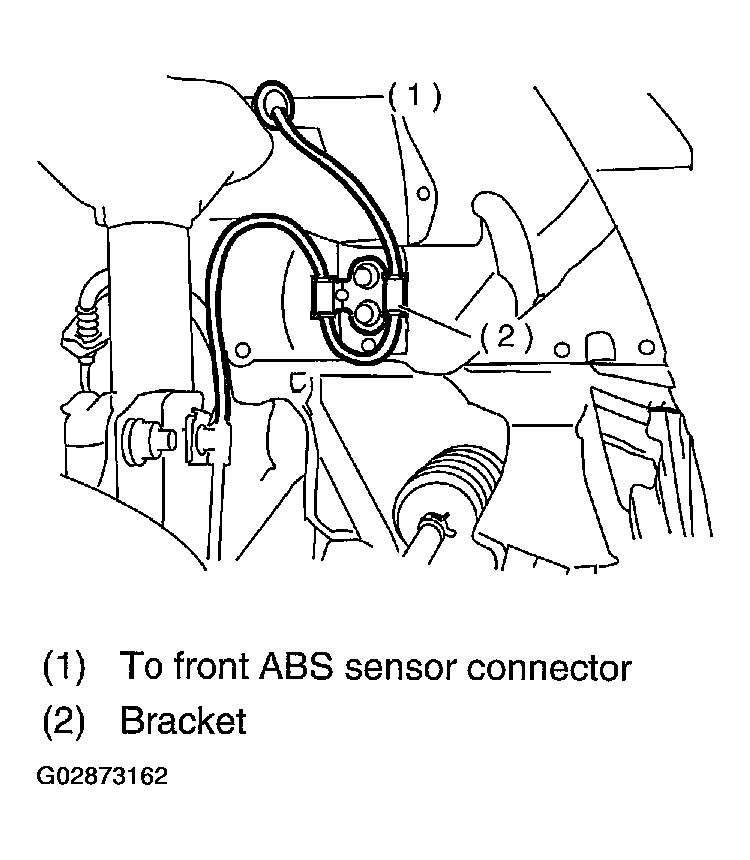

    Fig 2: Removing Bolt Securing Harness To Body
    G02873162Courtesy of SUBARU OF AMERICA, INC.
  5. Remove bolts which secure front ABS sensor to housing, and remove front ABS sensor.
    CAUTION:
    • Be careful not to damage pole piece located at tip of the sensor and teeth faces during removal.
    • Do not pull sensor harness during removal.

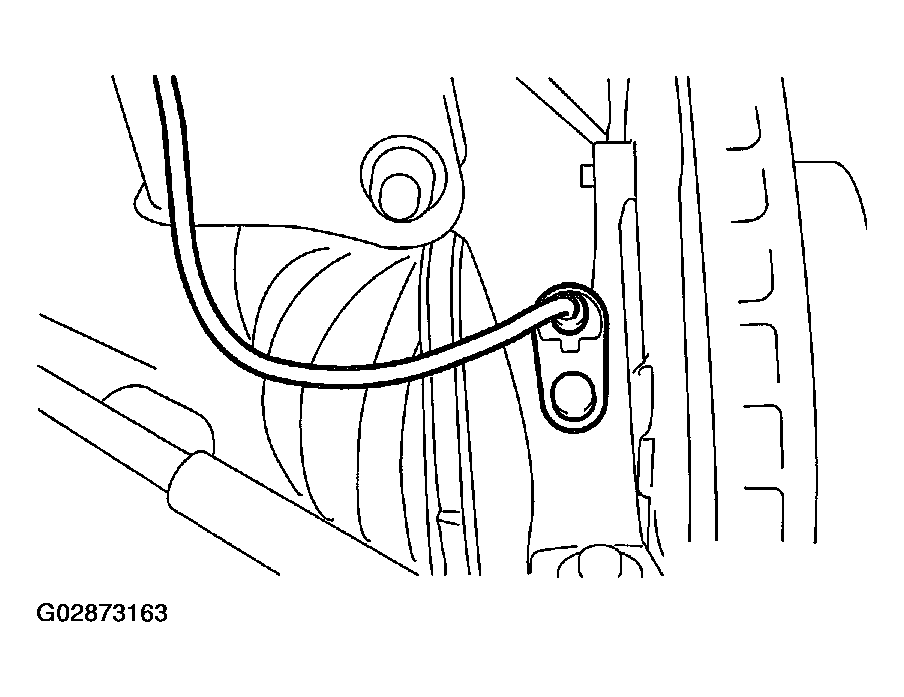

Fig 3: Removing Bolts Securing Front ABS Sensor
G02873163Courtesy of SUBARU OF AMERICA, INC.
