Traction Control: Abs: General Description: Component: Sensor

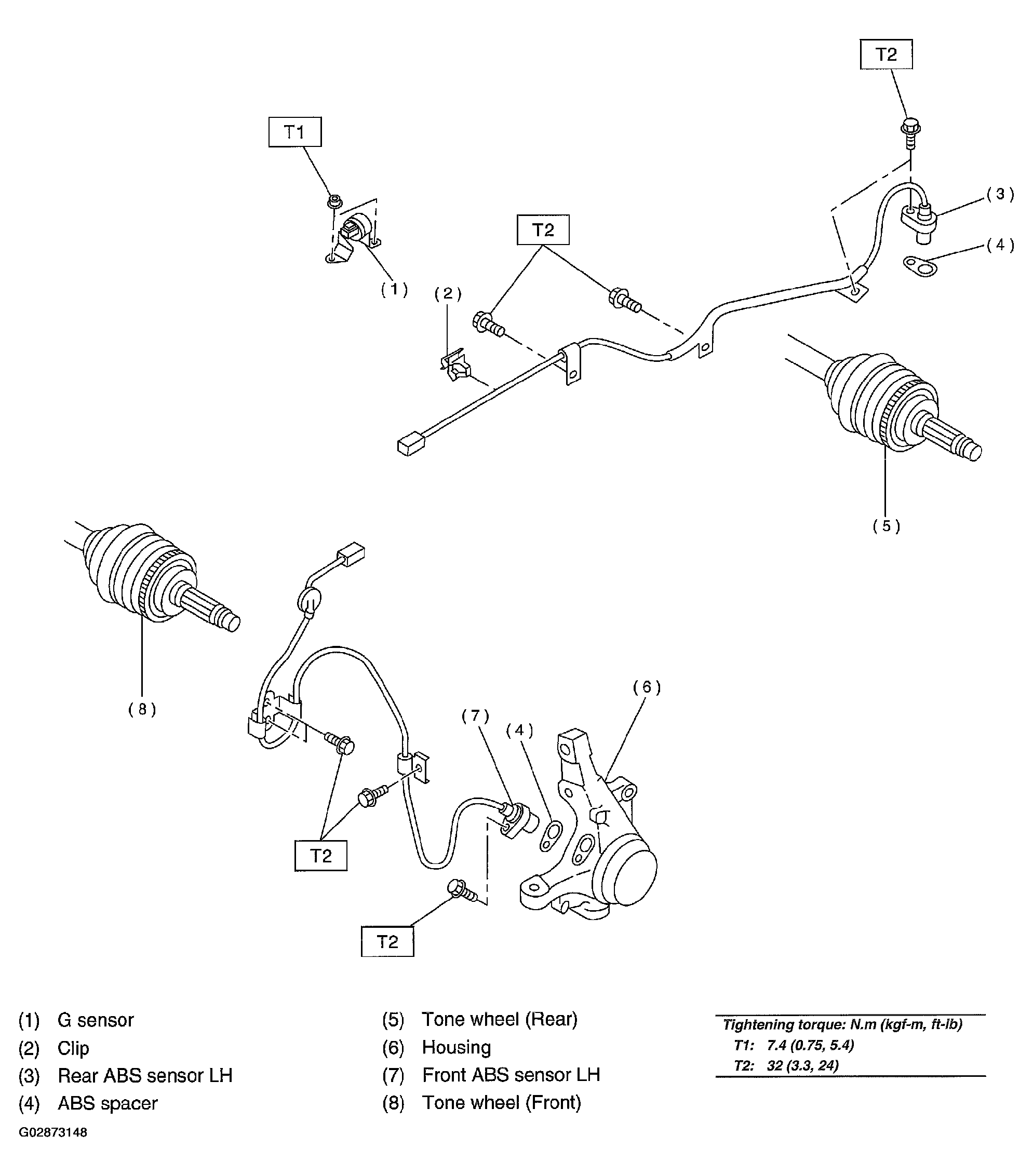

Fig 1: Identifying Sensor Components
G02873148Courtesy of SUBARU OF AMERICA, INC.
