Generator Specifications

NOTE: In below graphics, a similar graphic to the shown graphic means that it has a different model number. All other information is the same for referenced model.

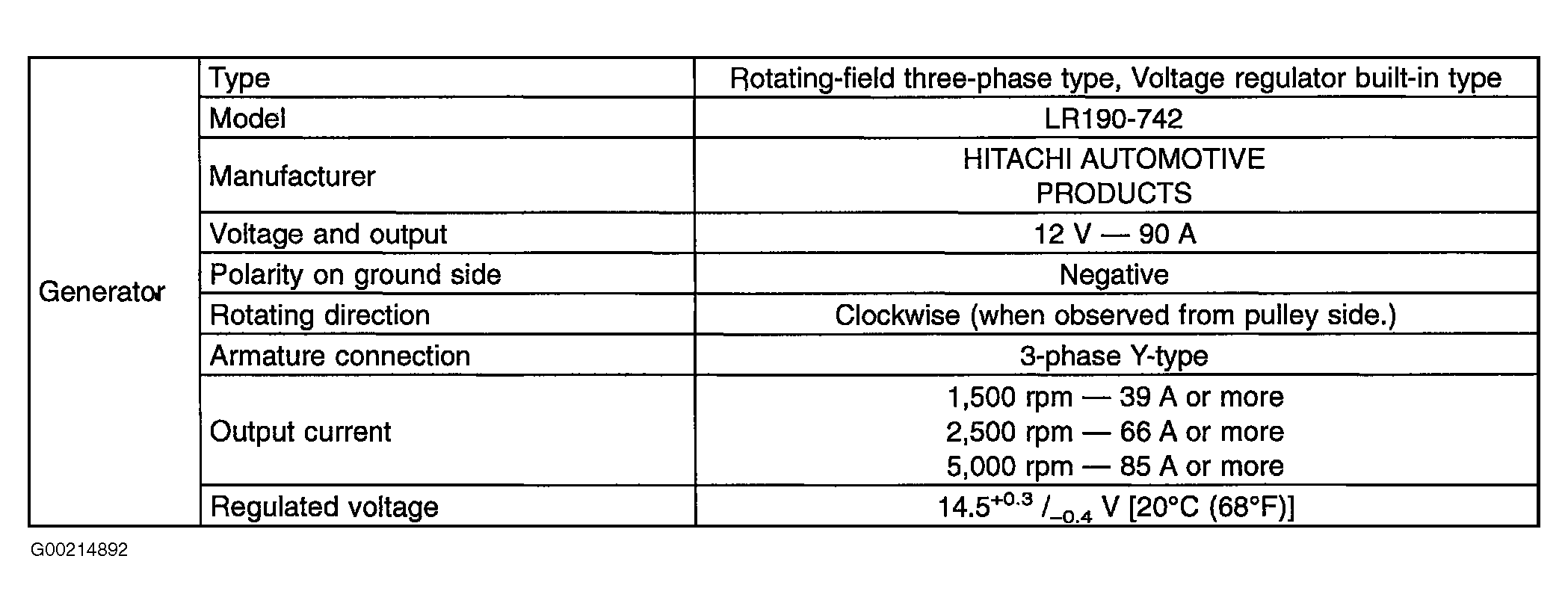

Fig 1: Generator Specifications - Hitachi (Legacy & Outback 2.5L (2002)

Courtesy of SUBARU OF AMERICA, INC.

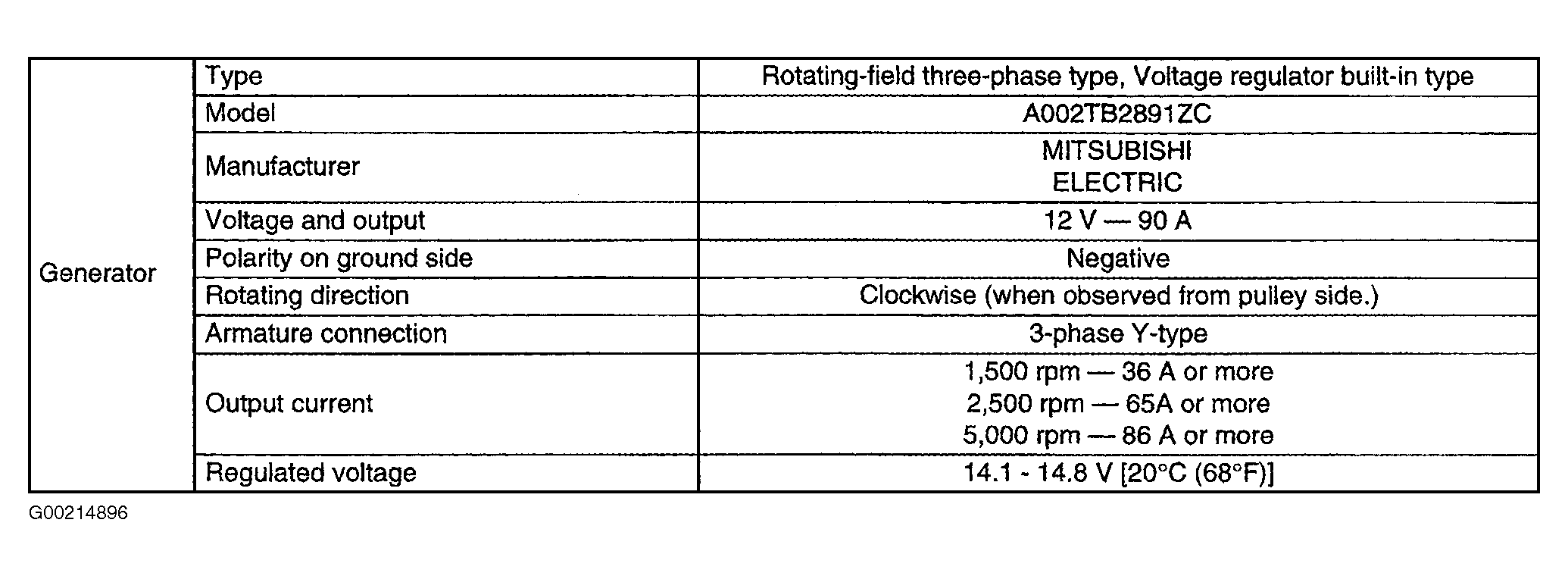

Fig 2: Generator Specifications - Mitsubishi (Outback 3.0L (2002)

Courtesy of SUBARU OF AMERICA, INC.

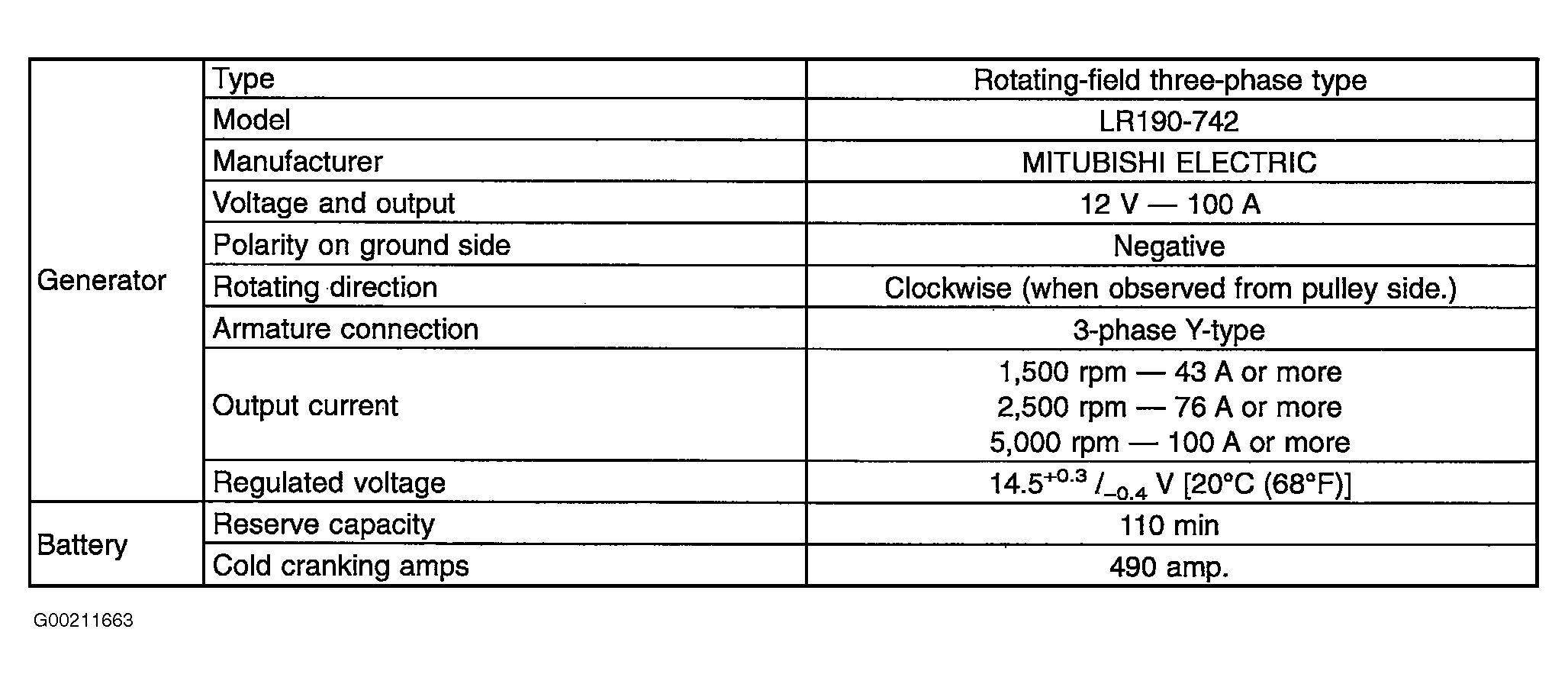

Fig 3: Generator Specifications - Mitsubishi (Baja, Legacy & Outback 2.5L (2003)

Courtesy of SUBARU OF AMERICA, INC.

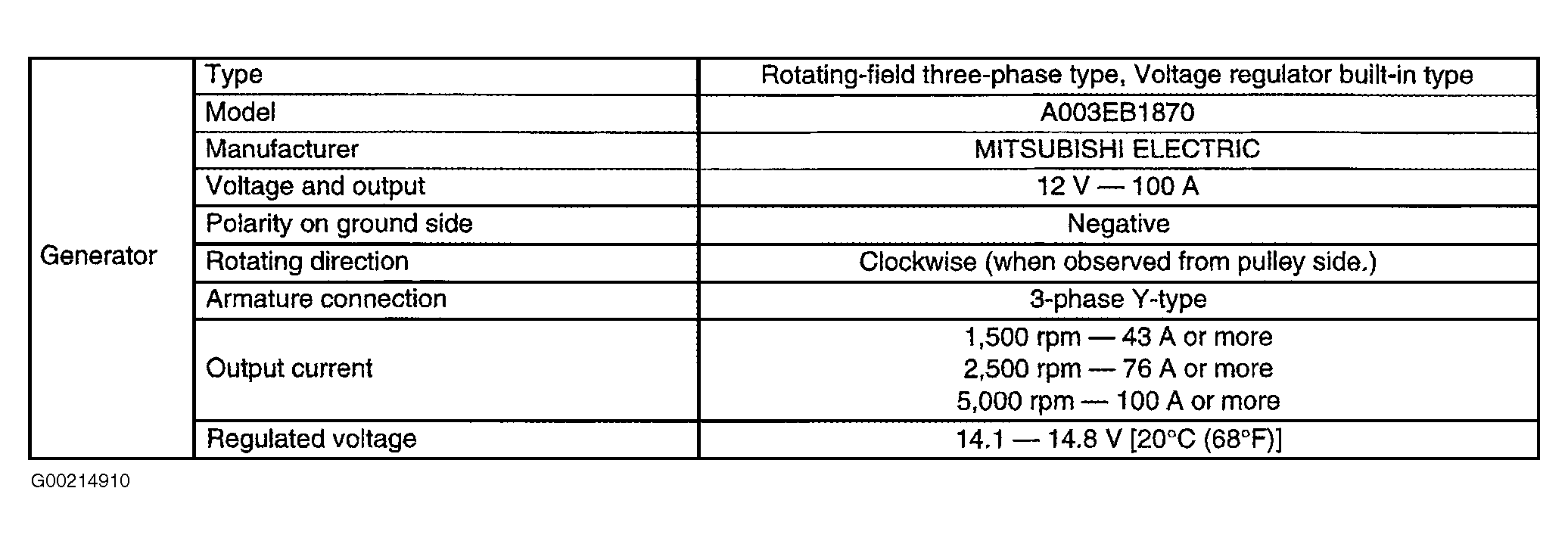

Fig 4: Generator Specifications - Mitsubishi (Outback 3.0L (2003)

Courtesy of SUBARU OF AMERICA, INC.
