Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

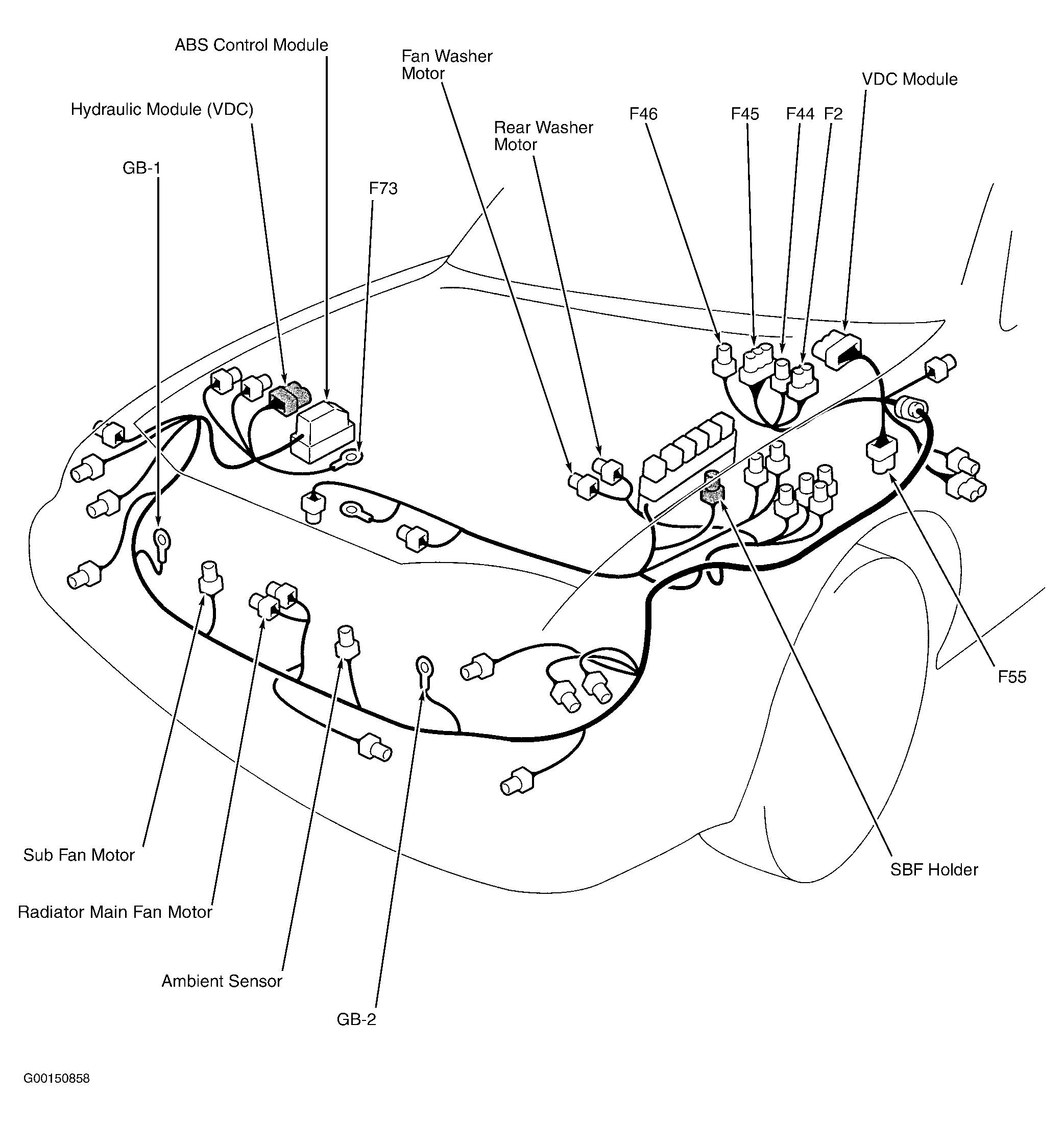

| ABS Control Module | At right side of engine compartment. See Figure. |
| A/C Auto Control Module | Behind center of dash. |

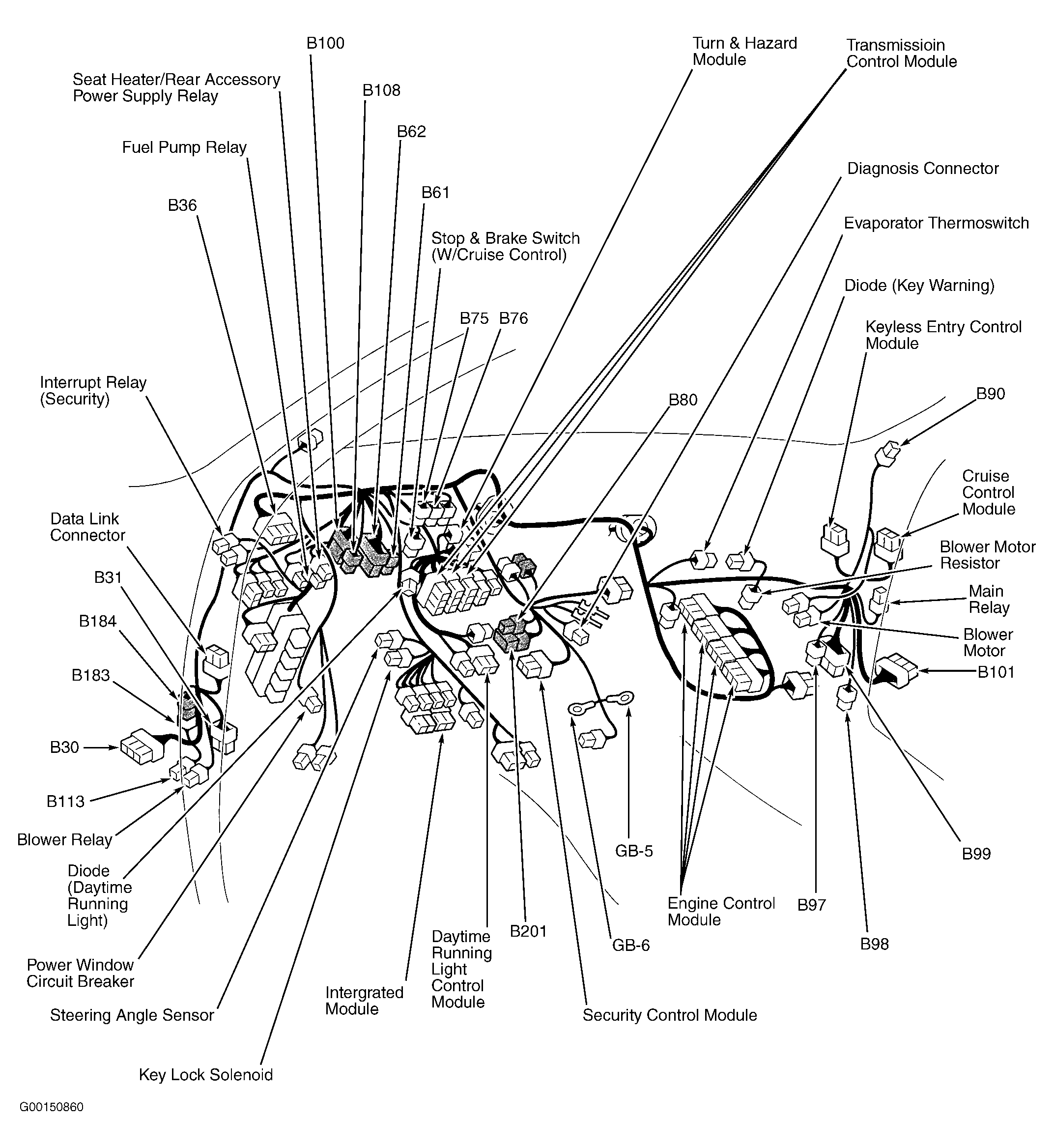

| Cruise Control Module | Behind right side of dash. See Figure. |
| Daytime Running Light Control Module | Behind center of dash. See Figure. |
| Engine Control Module | In passenger side front footwell below carpet and protective panel. See Figure. |
| Fuel Gauge Sub Module | On top of fuel tank. |
| Fuel Pump Assembly & Fuel Gauge Module | On top of fuel tank. |
| Fuel Pump Control Module | Near fuel tank. |
| Hydraulic Module (VDC) | Right side of engine compartment. See Figure. |
| Integrated Module | Behind left side of dash. See Figure. |
| Keyless Entry Control Module | Behind right side of dash. See Figure. |
| Rear Wiper Intermittent Module | At right rear or cargo compartment. |
| Security Control Module | Behind center of dash. See Figure. |
| Stop & Turn Module | Behind left side of dash. |

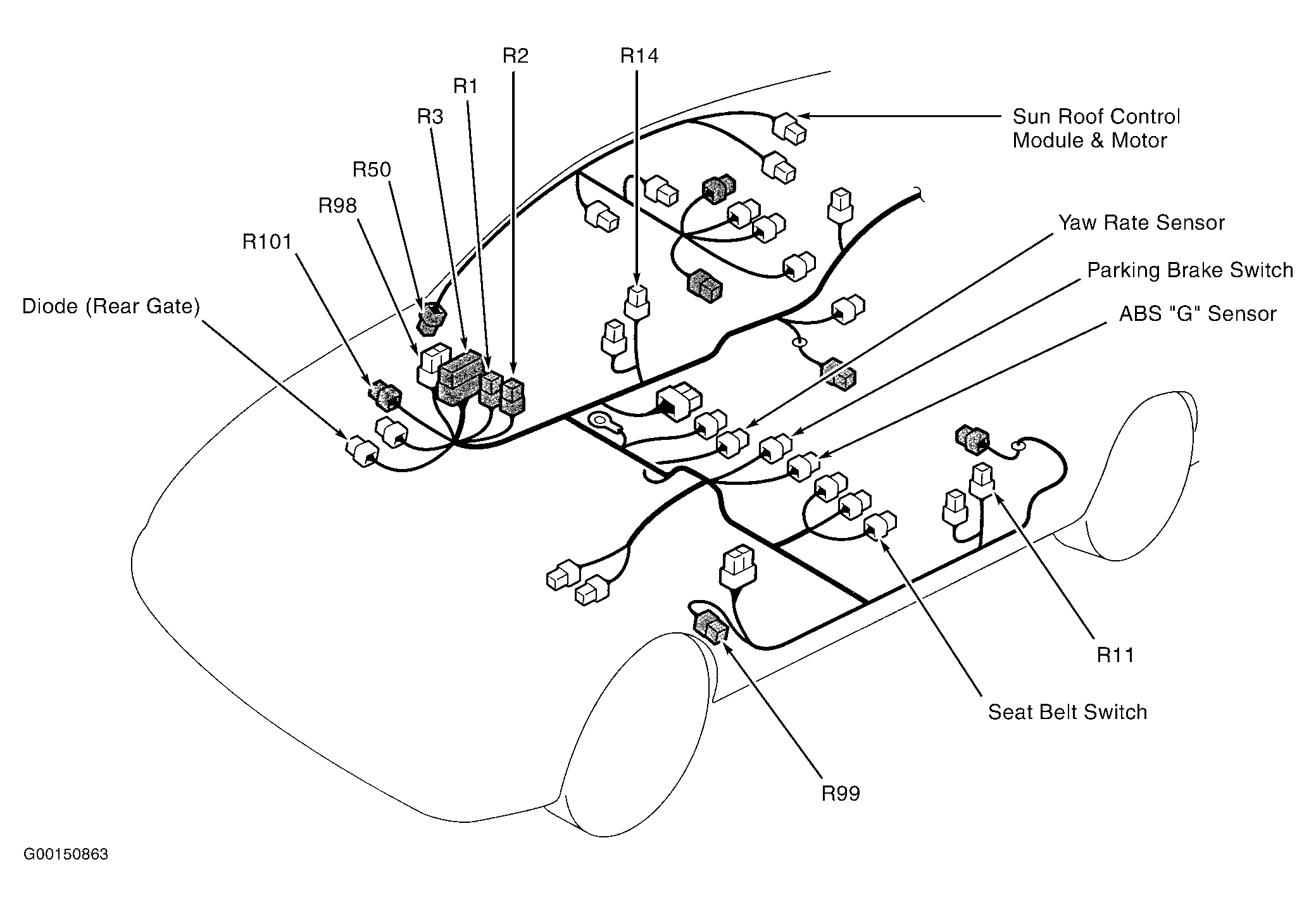

| Sun Roof Control Module & Motor | At rear of sun roof opening. See Figure. |
| Transmission Control Module | Behind left side of dash. See Figure. |
| Turn & Hazard Module | Behind left side of dash. See Figure. |
| VCC Module | Behind left side of dash. |
| VDC Module | At left rear corner of engine compartment. See Figure. |
| Vehicle Interface Module | Behind lower right side of dash. |
