No-Load Test

Under no-load state, measure starter's rotating speed and current, using the specified battery. Measured values must meet the standards. See Fig 1.

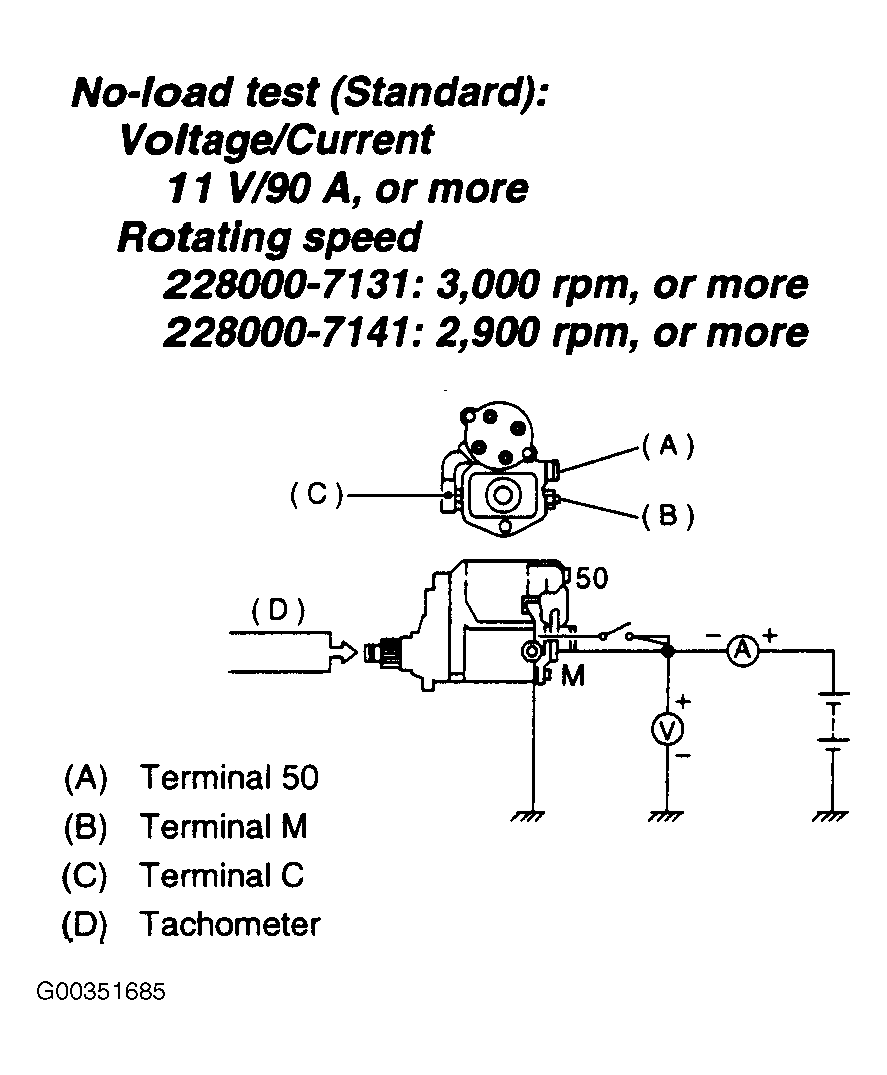

Fig 1: Measuring Value Of No-Load Test

Courtesy of SUBARU OF AMERICA, INC.
