Stall Test

Using the same test equipment used for load test, apply brake to lock starter armature. Then measure voltage, current, and torque values. Measured values must meet standards. See Fig 1.

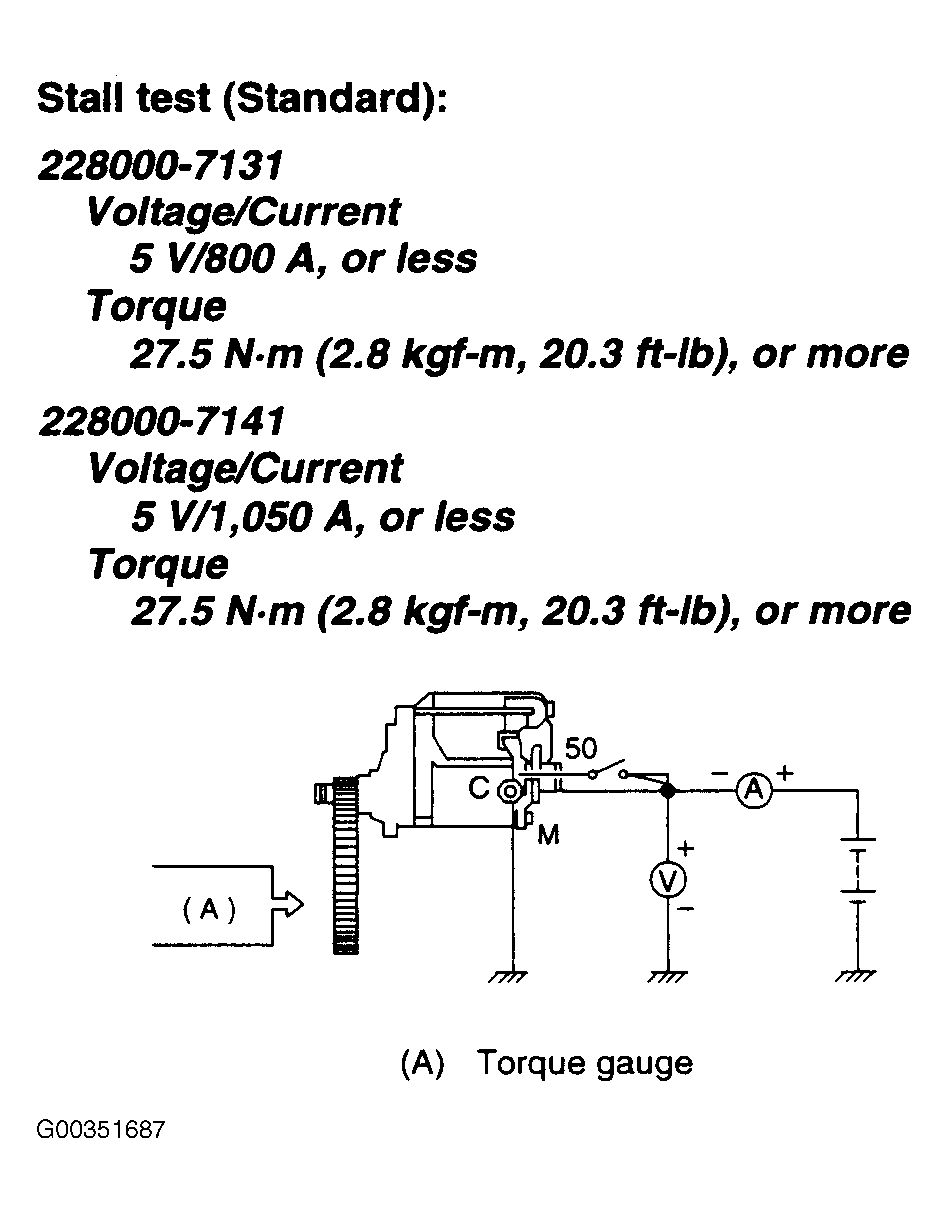

Fig 1: Measuring Voltage, Current & Torque Values

Courtesy of SUBARU OF AMERICA, INC.
