Engine Control Module: Removal

Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove lower inner trim of passenger side.
< Ref. to REMOVAL , Lower Inner Trim.>
Detach floor mat of passenger seat.

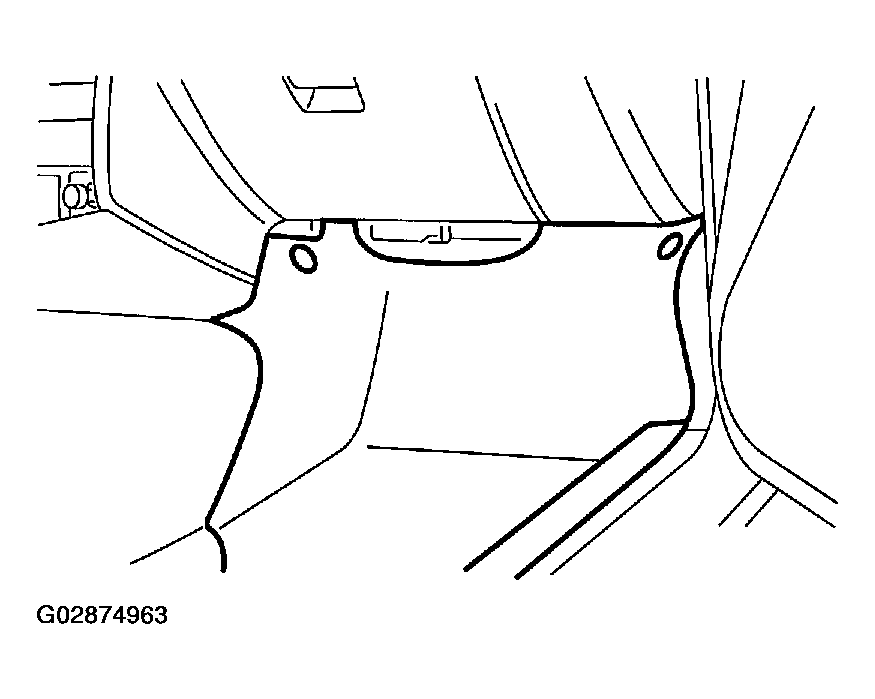

Fig 2: Detaching Floor Mat Of Passenger Seat
Courtesy of SUBARU OF AMERICA, INC.

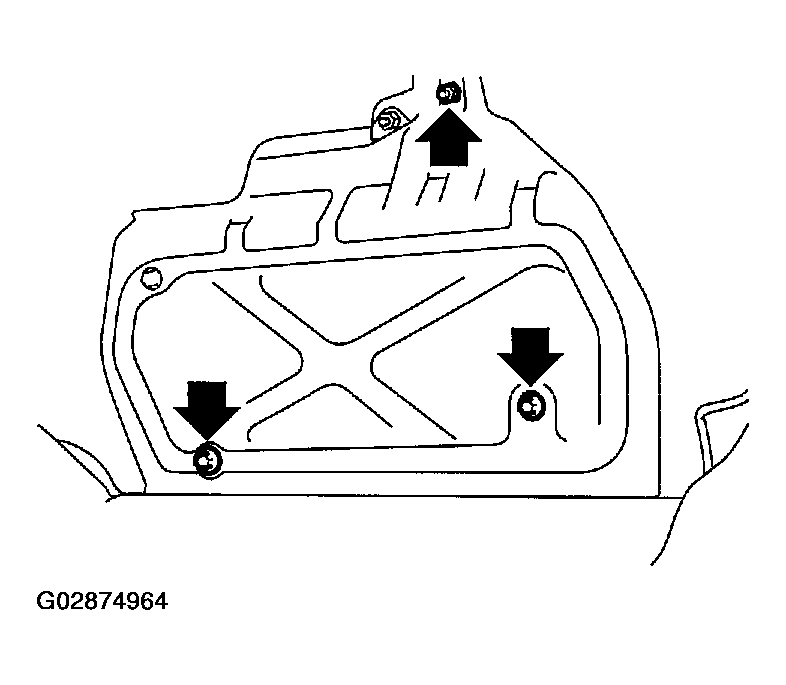

Remove protect cover.

Fig 3: Removing Protect Cover
Courtesy of SUBARU OF AMERICA, INC.

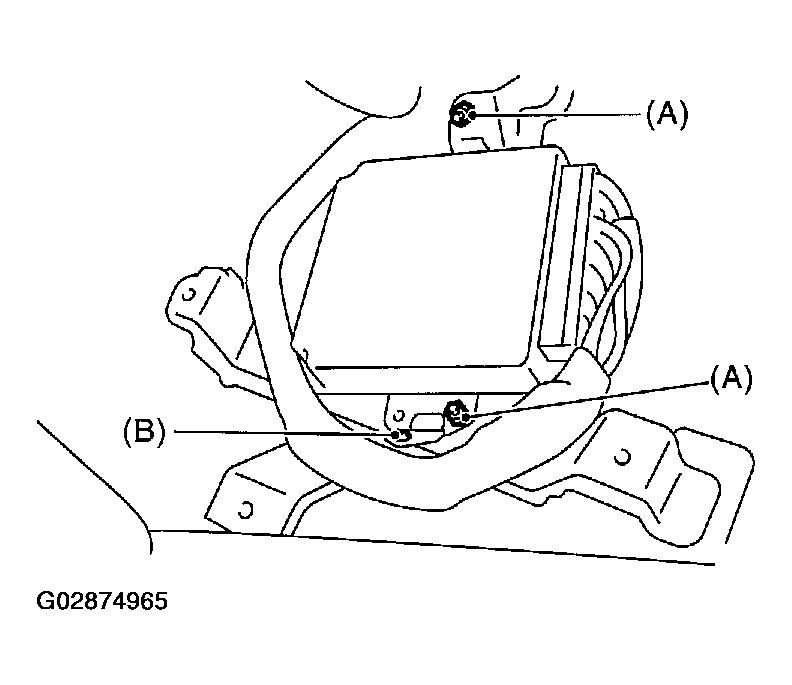

Remove nuts (A) which hold ECM to bracket.
Remove clip (B) from bracket.

Fig 4: Removing Clip From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect ECM connectors and take out ECM.
