Engine Coolant Temperature Sensor: Removal

Disconnect battery ground cable.

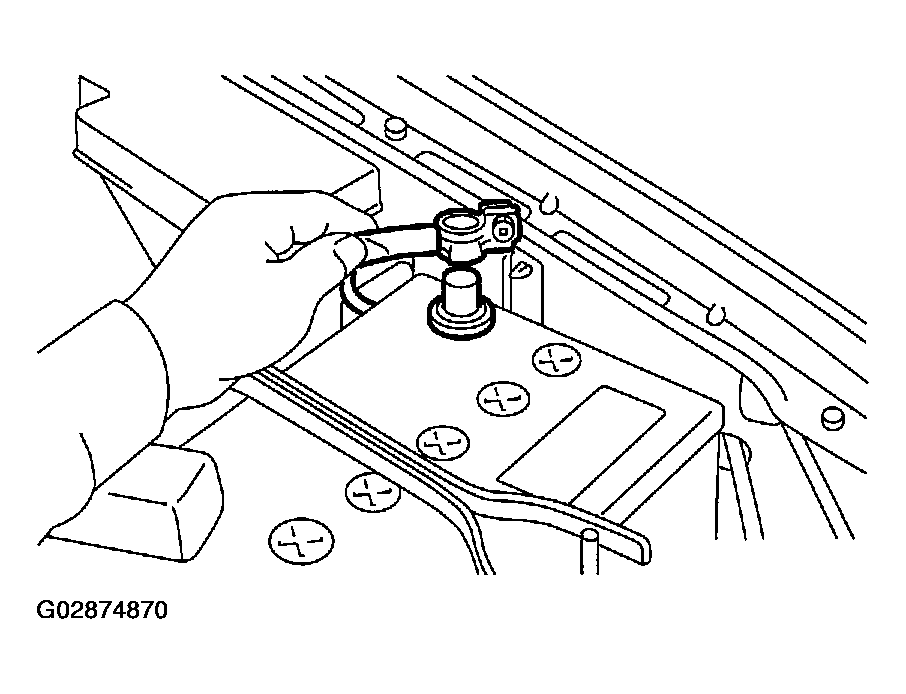

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air intake duct and air cleaner case.
< Ref. to REMOVAL , Air Intake Duct > and < Ref. to REMOVAL , Air Cleaner Case.>
Disconnect connector from engine coolant temperature sensor.

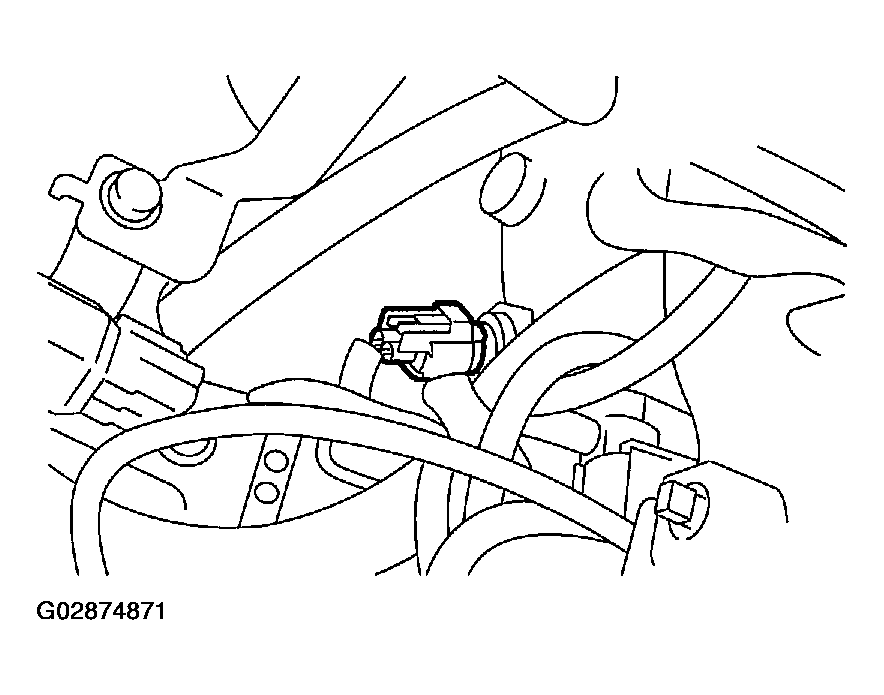

Fig 2: Disconnecting Connector From Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove engine coolant temperature sensor.
