Fuel Filler Pipe: Installation

Hold fuel filler flap open.

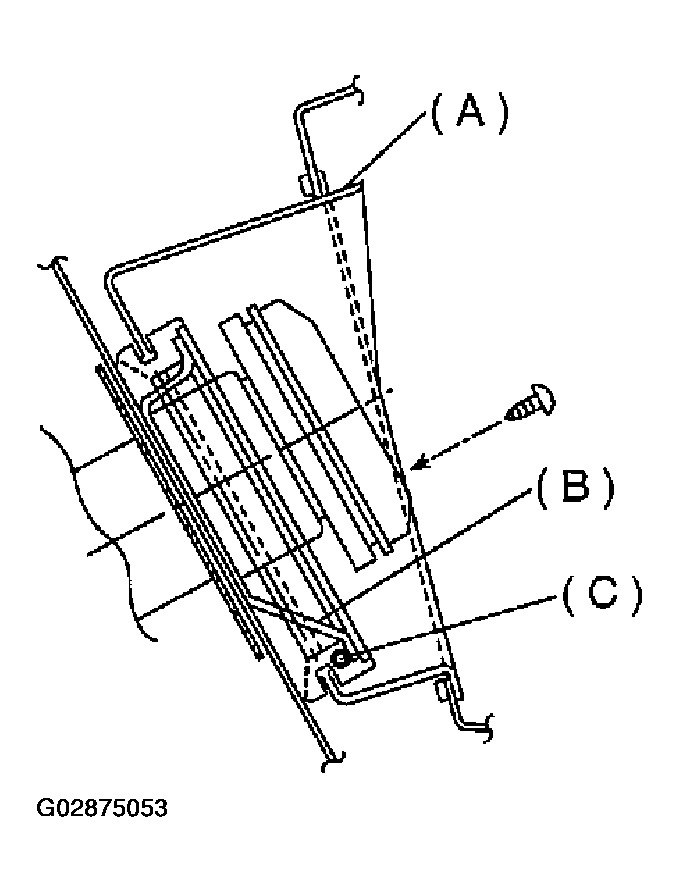

Set fuel saucer (A) with rubber packing (C) and insert fuel filler pipe into hole from the inner side of apron.

Fig 1: Setting Fuel Saucer With Rubber Packing
Courtesy of SUBARU OF AMERICA, INC.
Align holes in fuel filler pipe neck and set cup (B), and tighten screws.
NOTE: If edges of rubber packing are folded toward the inside, straighten it with a screwdriver.

Fig 2: Aligning Holes In Fuel Filler Pipe Neck
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolt which holds fuel filler pipe on body.
1. Tightening torque: 7.5 N.m (0.75 kgf-m, 5.4 ft-lb)
Fig 3: Tightening Bolt Holding Fuel Filler Pipe On Body
Courtesy of SUBARU OF AMERICA, INC.

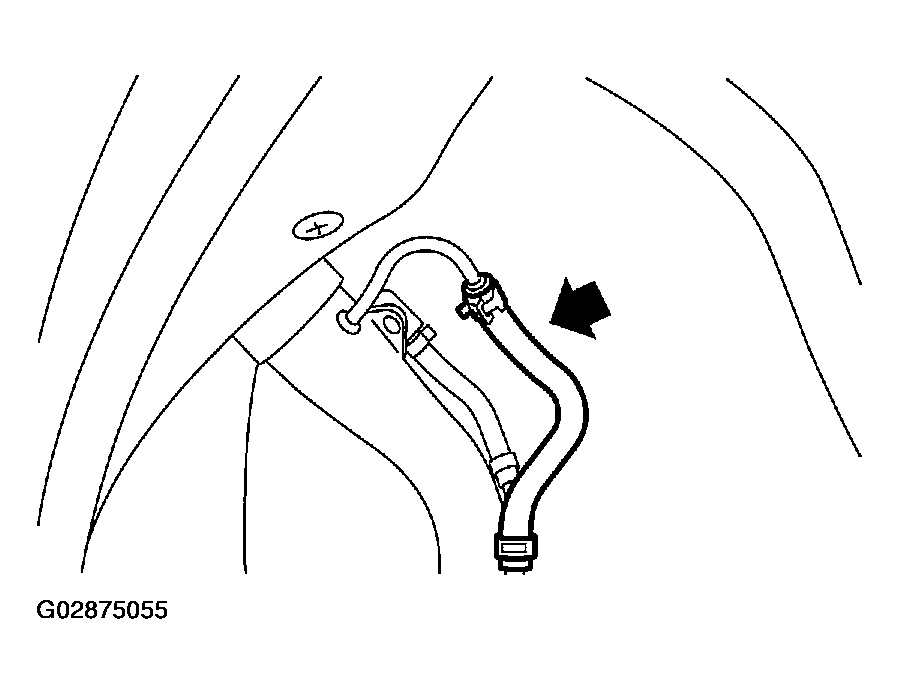

Insert evaporation hose approximately 25 to 30 mm (0.98 to 1.18 in) into the lower end of evaporation pipe and hold clip.

Fig 4: Inserting Evaporation Hose Into Lower End Of Evaporation Pipe
Courtesy of SUBARU OF AMERICA, INC.

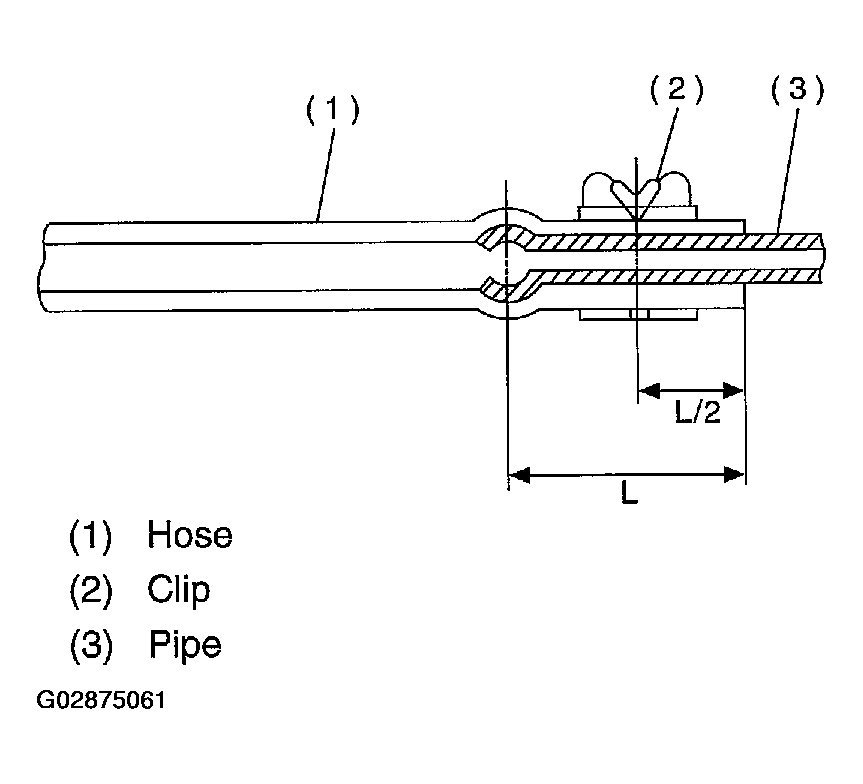

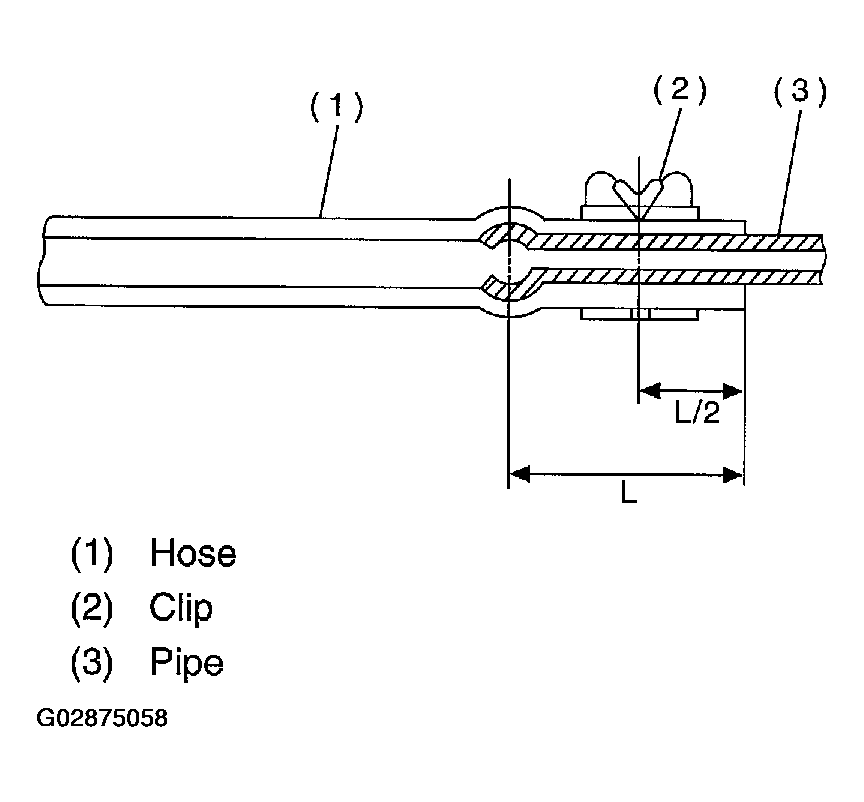

1. L = 27.5+/-2.5 mm (1.083+/-0.098 in)
Fig 5: Identifying Dimension Of Pipe
Courtesy of SUBARU OF AMERICA, INC.

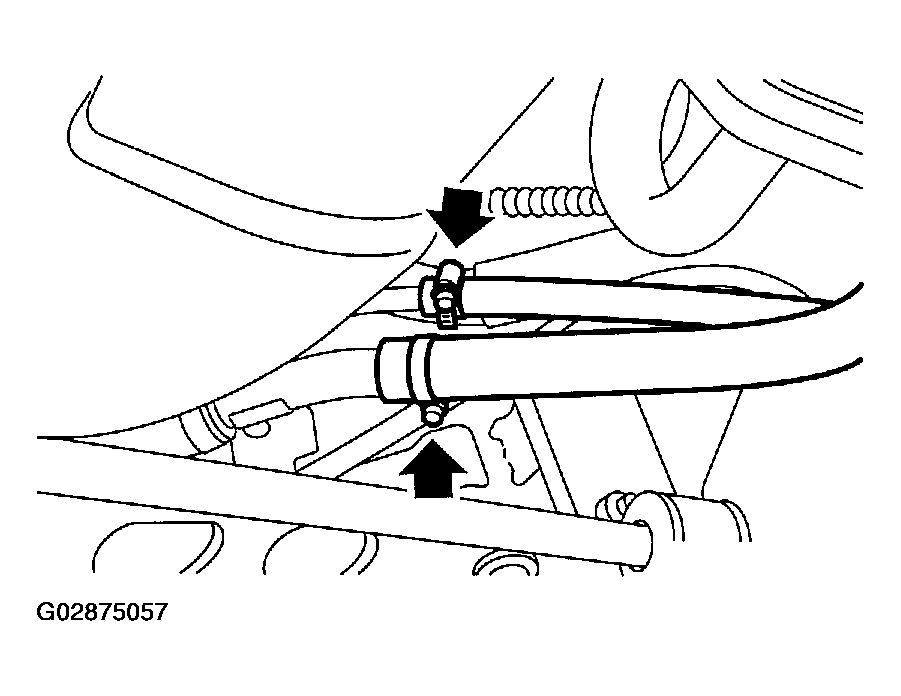

Insert canister hoses approximately 25 to 30 mm (0.98 to 1.18 in) into the lower end of evaporation pipe assembly and tighten clamp.

Fig 6: Inserting Canister Hoses Into Lower End Of Evaporation Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.

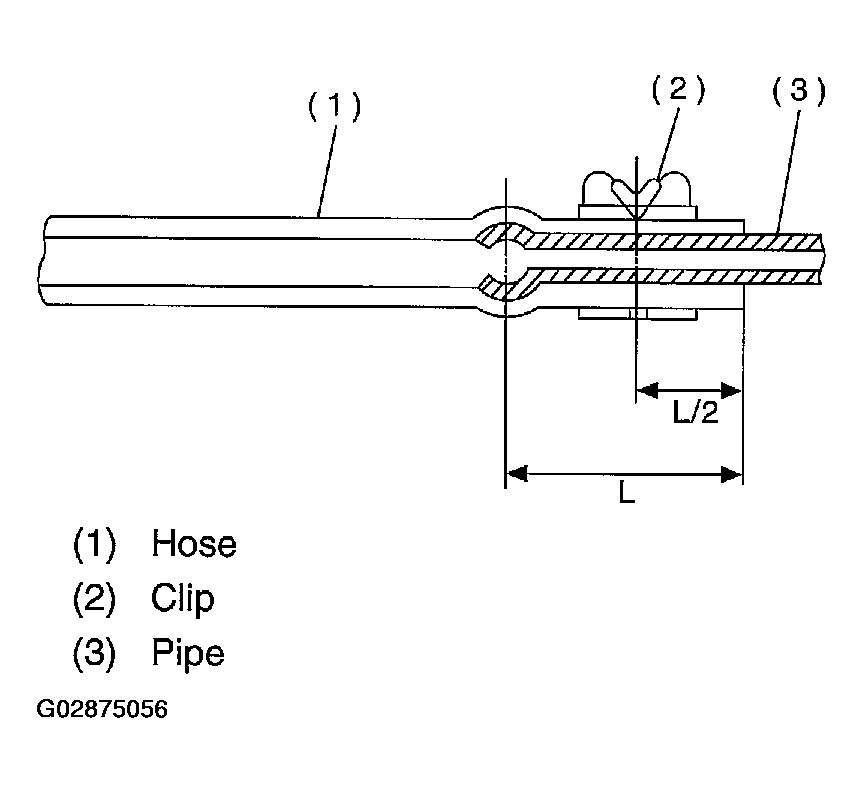

1. L = 27.5+/-2.5 mm (1.083+/-0.098 in)
Fig 7: Identifying Dimension Of Pipe
Courtesy of SUBARU OF AMERICA, INC.

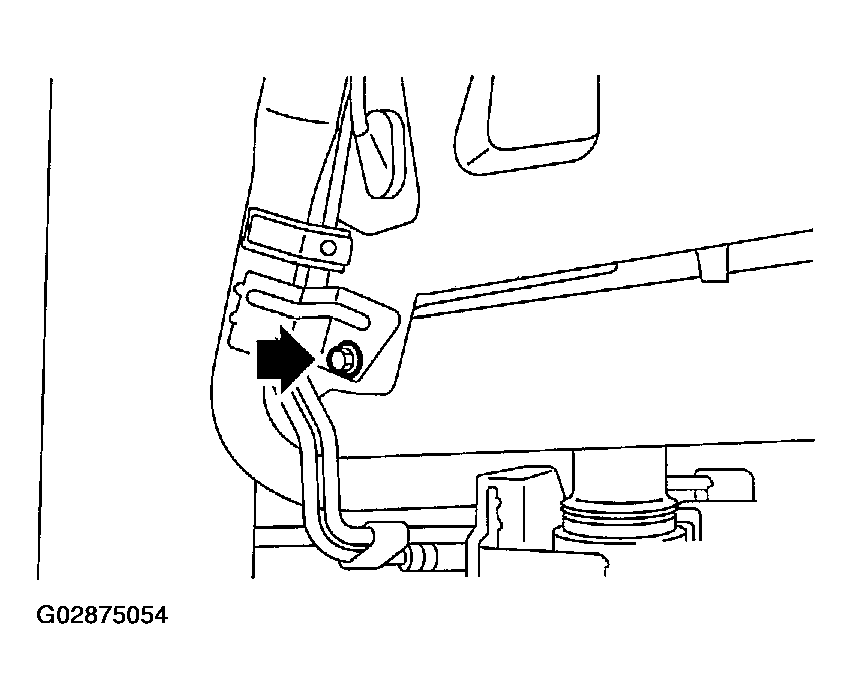

Tighten bolt which holds evaporation pipe assembly on body.
1. Tightening torque: 7.5 N.m (0.75 kgf-m, 5.4 ft-lb)
Fig 8: Tightening Bolt To Holding Evaporation Pipe Assembly On Body
Courtesy of SUBARU OF AMERICA, INC.

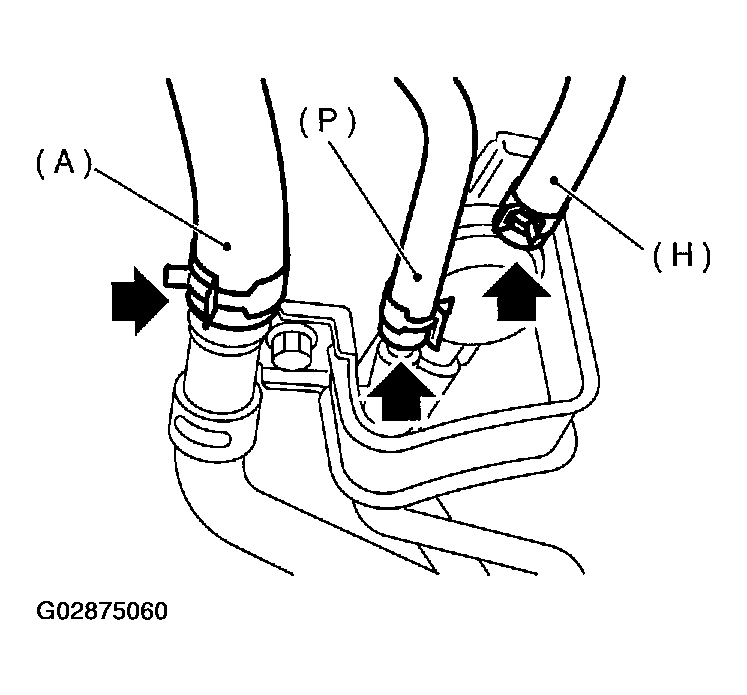

Insert air vent hose (A), evaporation hose (P) approximately 25 to 30 mm (0.98 to 1.18 in) into the lower end of evaporation pipe assembly and hold clip.
Insert evaporation hose (H) to pressure control solenoid valve and hold clip.

Fig 9: Inserting Evaporation Hose To Pressure Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
1. L = 27.5+/-2.5 mm (1.083+/-0.098 in)
Fig 10: Identifying Dimension Of Pipe
Courtesy of SUBARU OF AMERICA, INC.

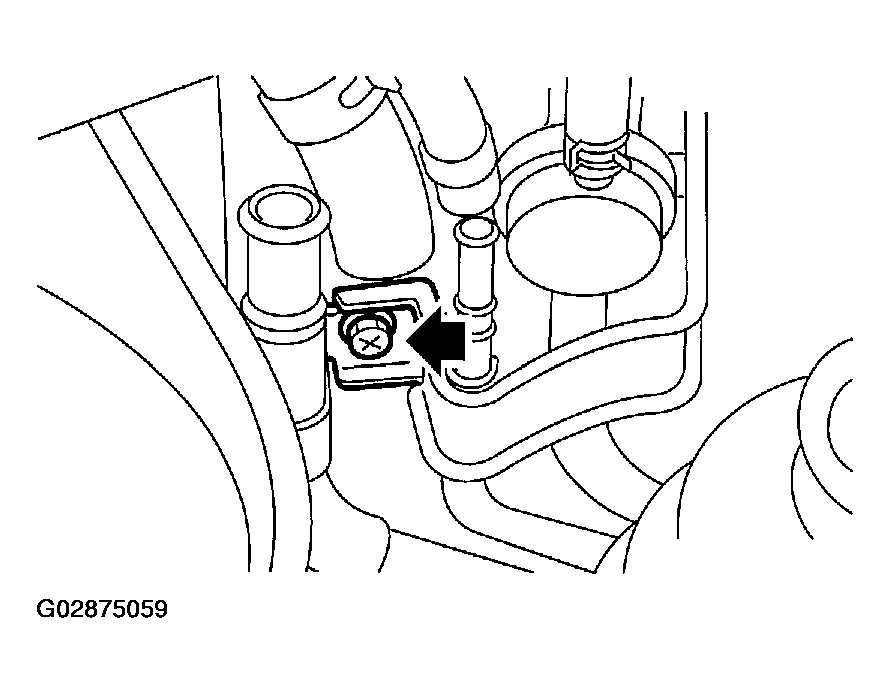

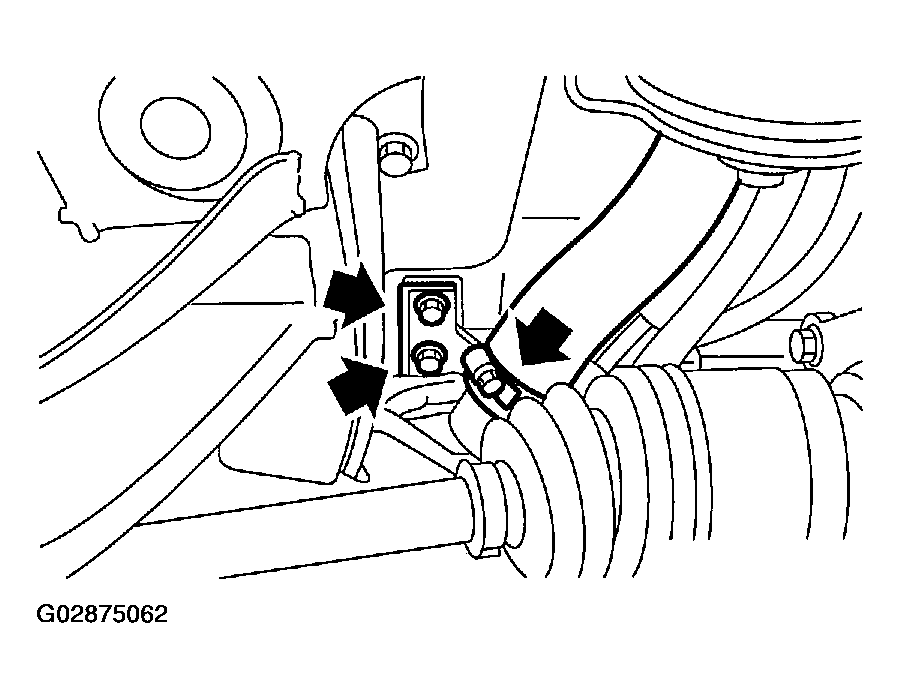

Tighten bolt which holds fuel filler pipe on body and tighten bolt which holds fuel pressure sensor on fuel filler pipe.
1. Tightening torque: 7.5 N.m (0.75 kgf-m, 5.4 ft-lb)
Insert fuel filler hose approximately 35 to 40 mm (1.38 to 1.57 in) over the lower end of fuel filler pipe and tighten clamp.

Fig 11: Inserting Fuel Filler Hose Over Lower End Of Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Jack-up the rear sub frame and tighten bolts which hold rear sub frame on body.
Tightening torque:
1. T1: 66 N.m (6.7 kgf-m, 48.5 ft-lb)
2. T2: 172 N.m (17.5 kgf-m, 127 ft-lb)

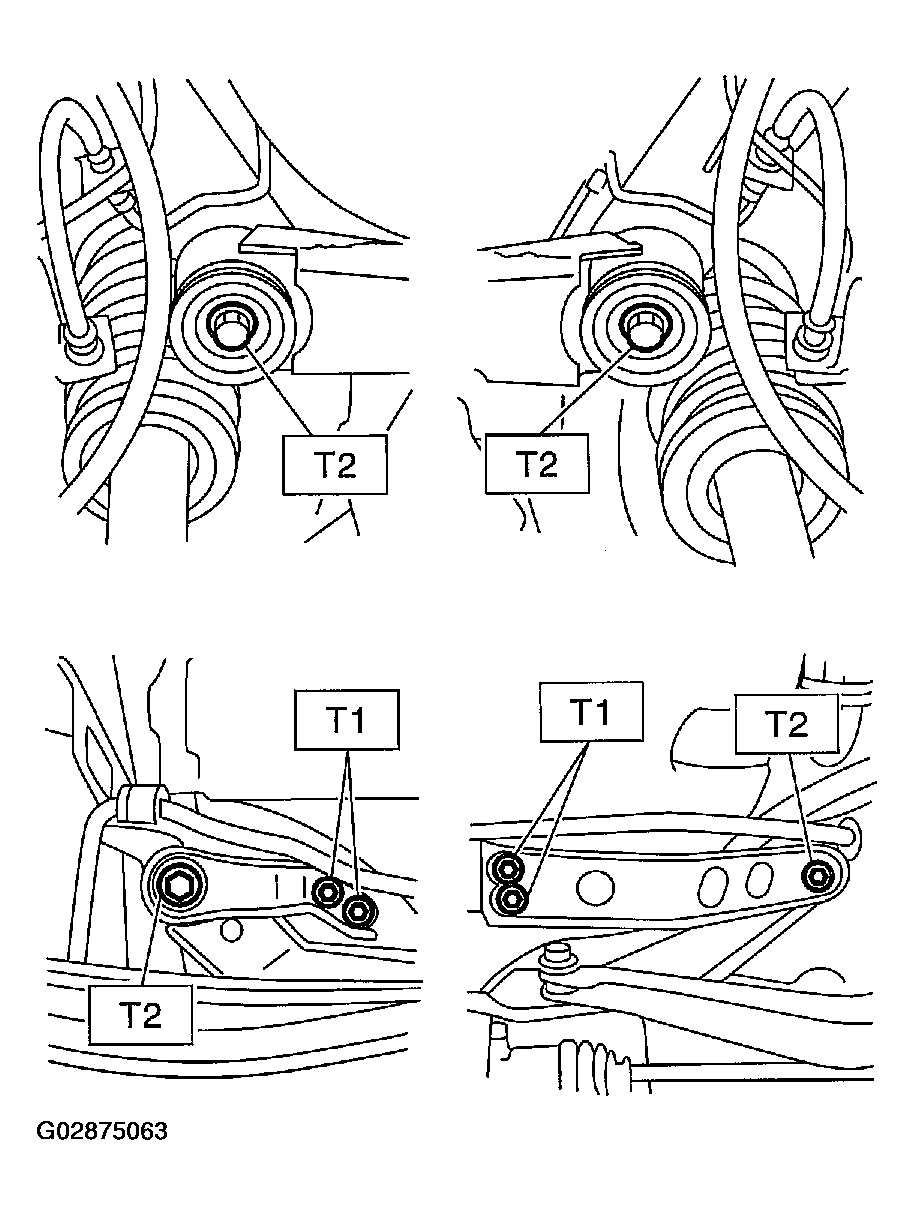

Fig 12: Tightening Bolts Holding Rear Sub Frame On Body
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolt which holds rear shock absorber to rear suspension arm. < Ref. to INSTALLATION , Rear Shock Absorber.>
1. Tightening torque: 157 N.m (16 kgf-m, 116 ft-lb)

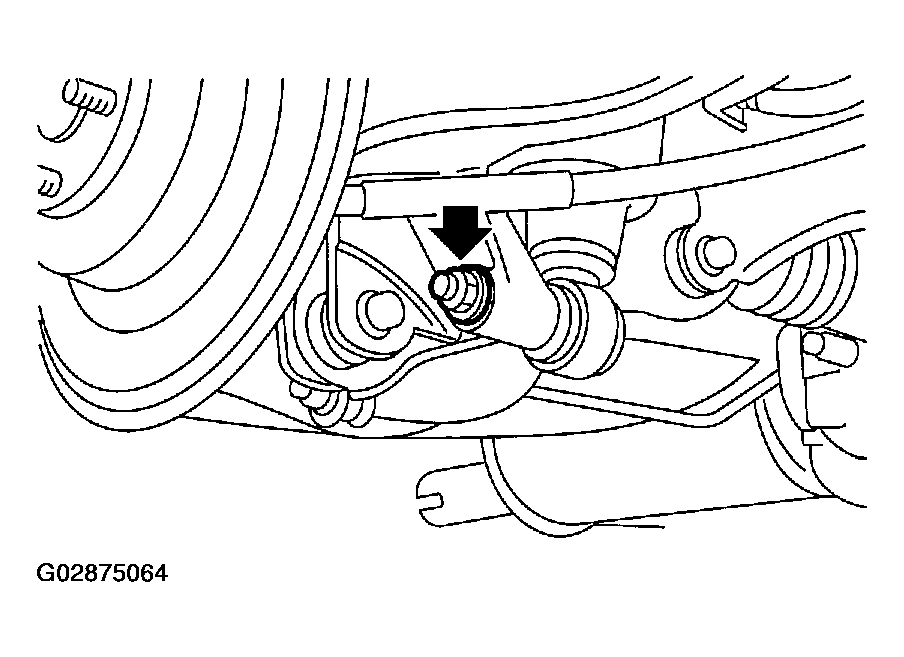

Fig 13: Tightening Bolt Holding Rear Shock Absorber To Rear Suspension Arm
Courtesy of SUBARU OF AMERICA, INC.
Install heat shield cover.

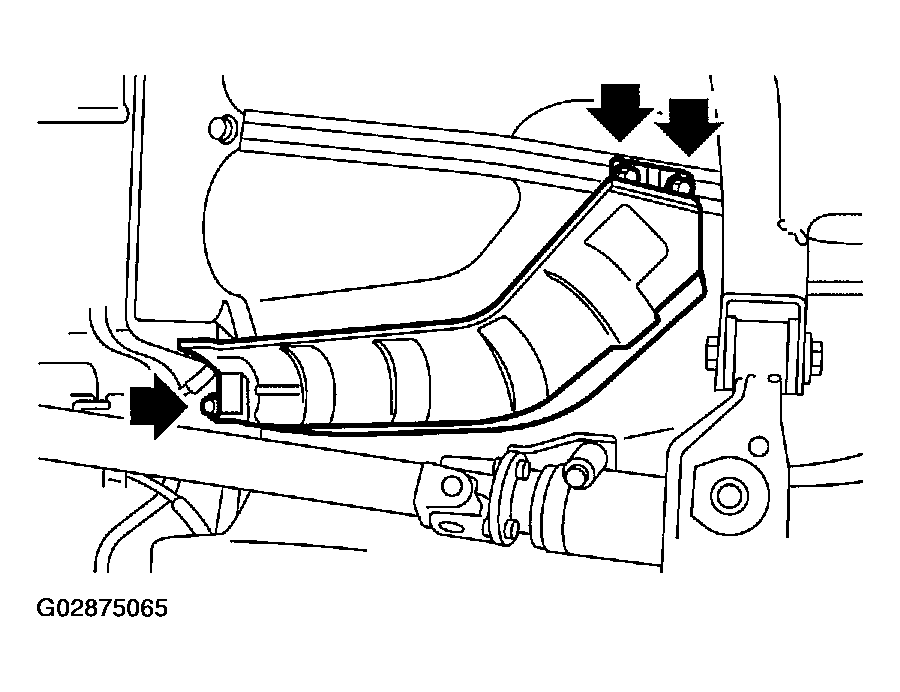

Fig 14: Installing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Install rear exhaust pipe and muffler.
NOTE: To facilitate the procedure, apply a coat of SUBARU CRC to matching area of rubber cushions in advance.
1. SUBARU CRC (Part No. 004301003)
1. Install left and right rubber cushions.

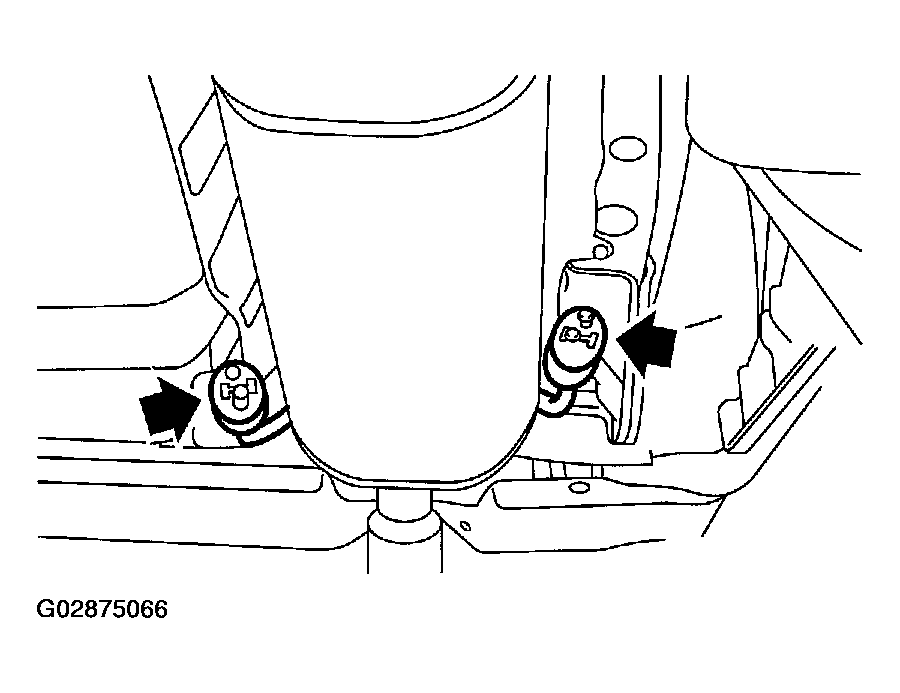

  Fig 15: Installing Left & Right Rubber Cushions
  Courtesy of SUBARU OF AMERICA, INC.
2. Install front rubber cushion and attach muffler assembly.

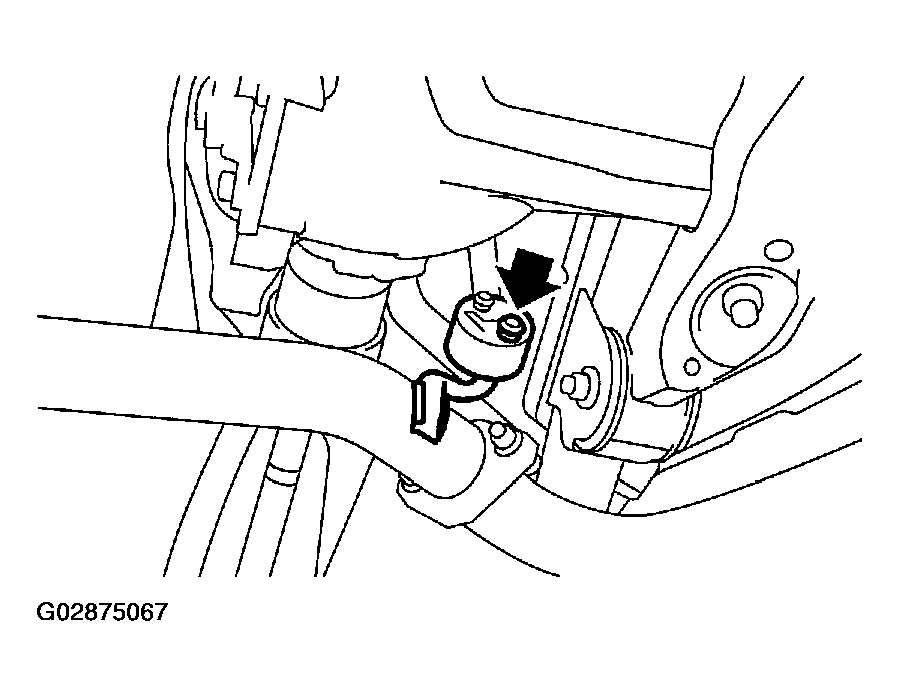

  Fig 16: Installing Front Rubber Cushion & Attaching Muffler Assembly
  Courtesy of SUBARU OF AMERICA, INC.

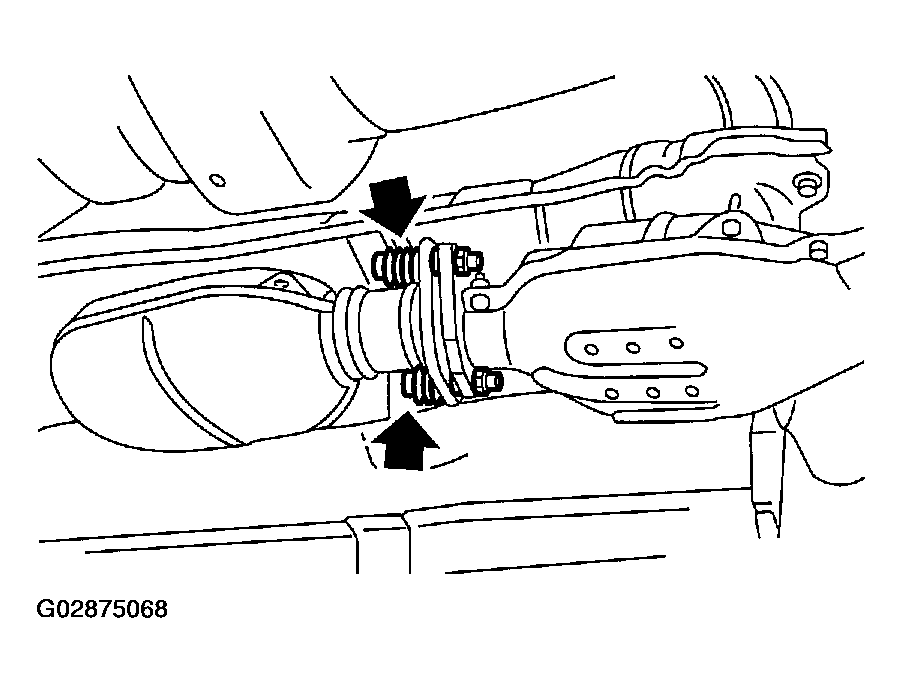

3. Install rear exhaust pipe to center exhaust pipe.
  1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
  Fig 17: Installing Rear Exhaust Pipe To Center Exhaust Pipe
  Courtesy of SUBARU OF AMERICA, INC.
Install fuel filler pipe protector.

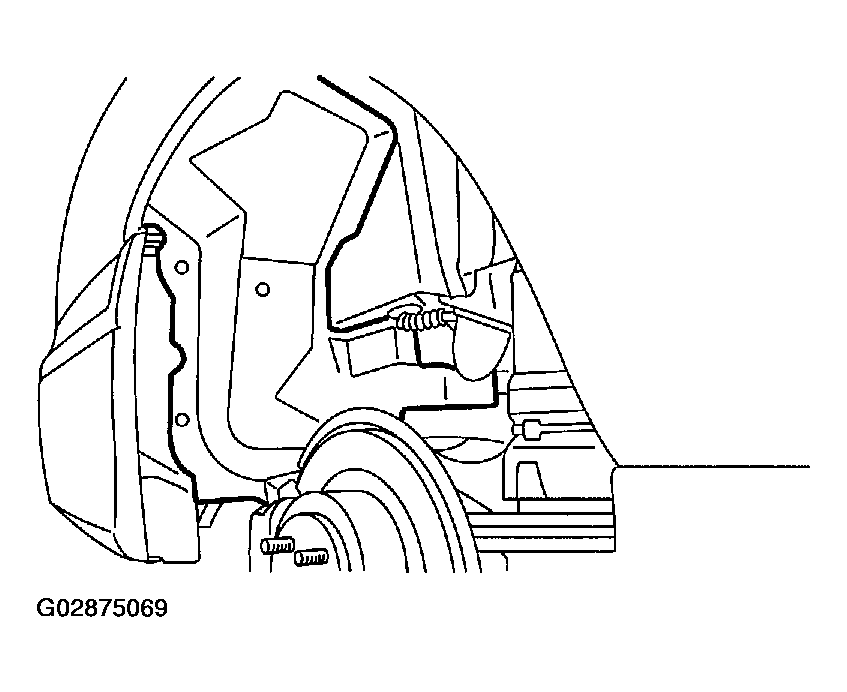

Fig 18: Installing Fuel Filler Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Install rear right wheel.

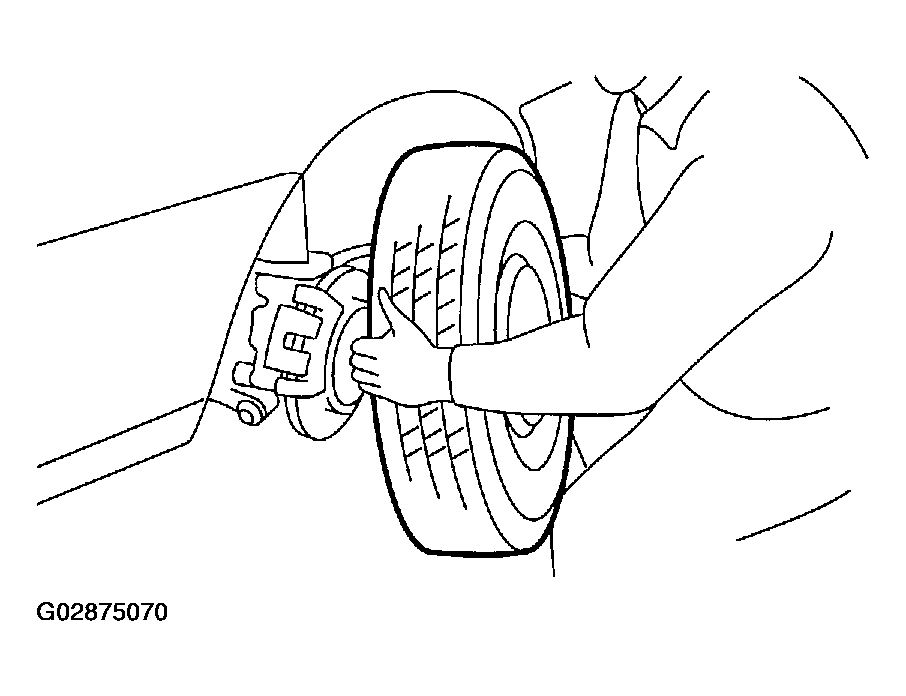

Fig 19: Installing Rear Right Wheel
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Tighten wheel nuts.
Connect battery ground terminal.

Fig 20: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel filler pipe to under side of the vehicle.
