LH Side

Install in the reverse order of removal.

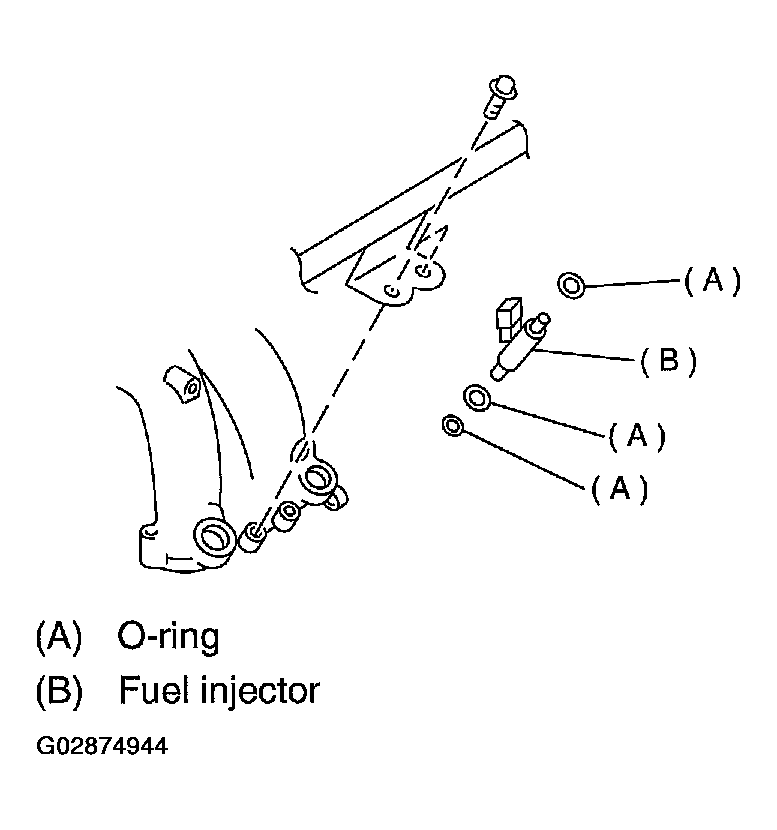

Fig 1: Replacing O-Rings With New Ones

Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque:  5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

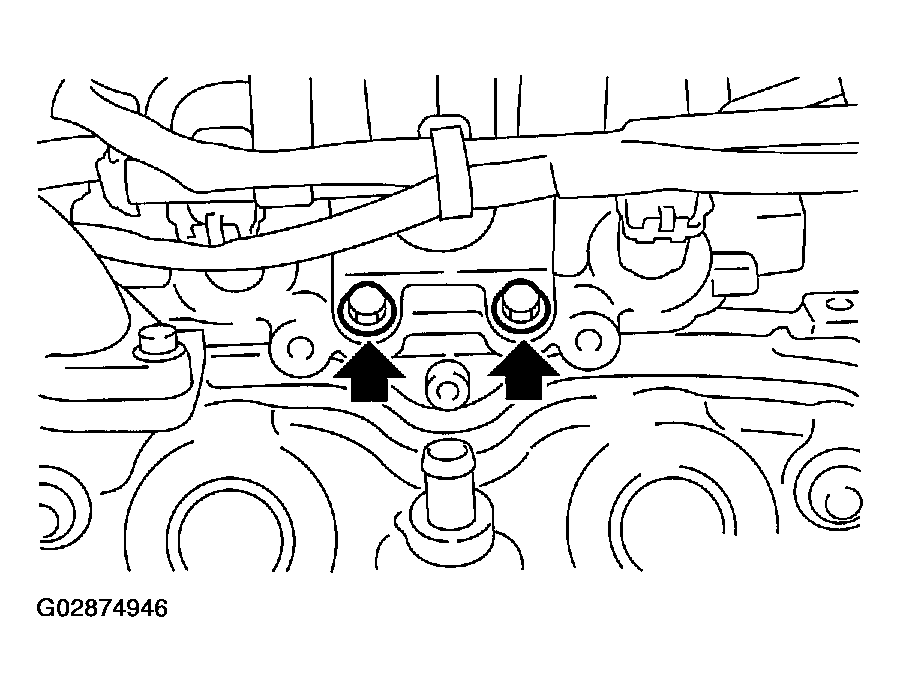

   Fig 2: Tightening Fuel Pipe Bolts

   Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque:  19 N.m (1.9 kgf-m, 13.7 ft-lb)

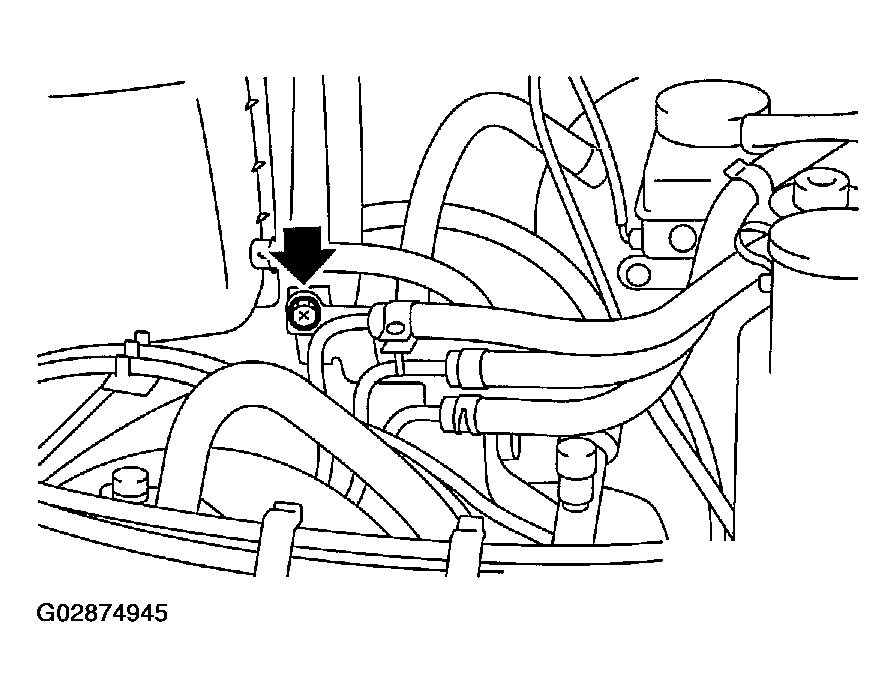

   Fig 3: Tightening Injector Pipe Bolt To Intake Manifold

   Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque:  19 N.m (1.9 kgf-m, 13.7 ft-lb)

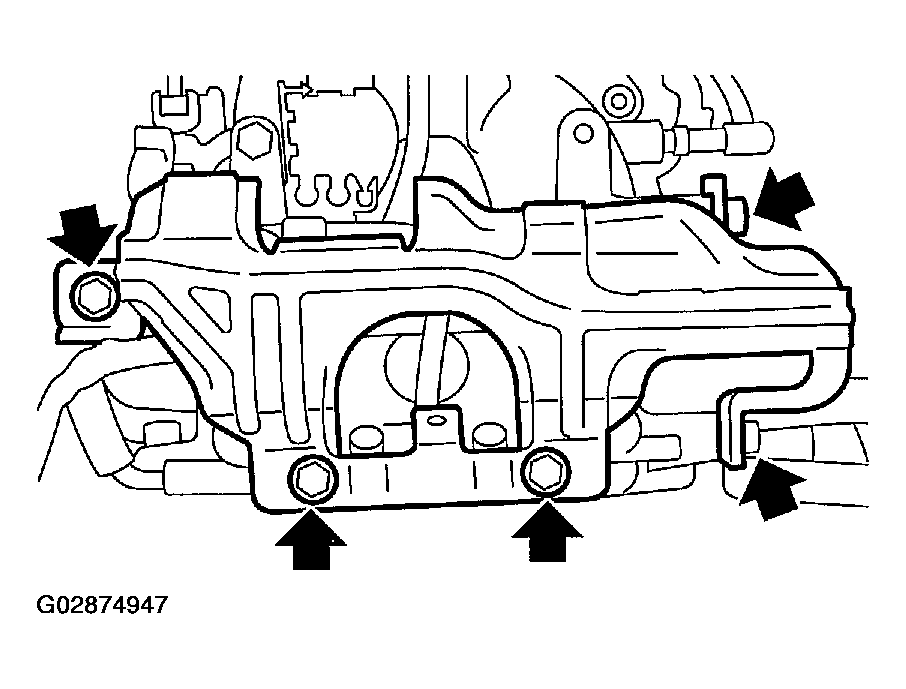

   Fig 4: Tightening Fuel Pipe Protector LH

   Courtesy of SUBARU OF AMERICA, INC.
