LH Side

Release fuel pressure.
< Ref. to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.>
Open fuel flap lid, and remove fuel filler cap.
Disconnect battery ground cable.

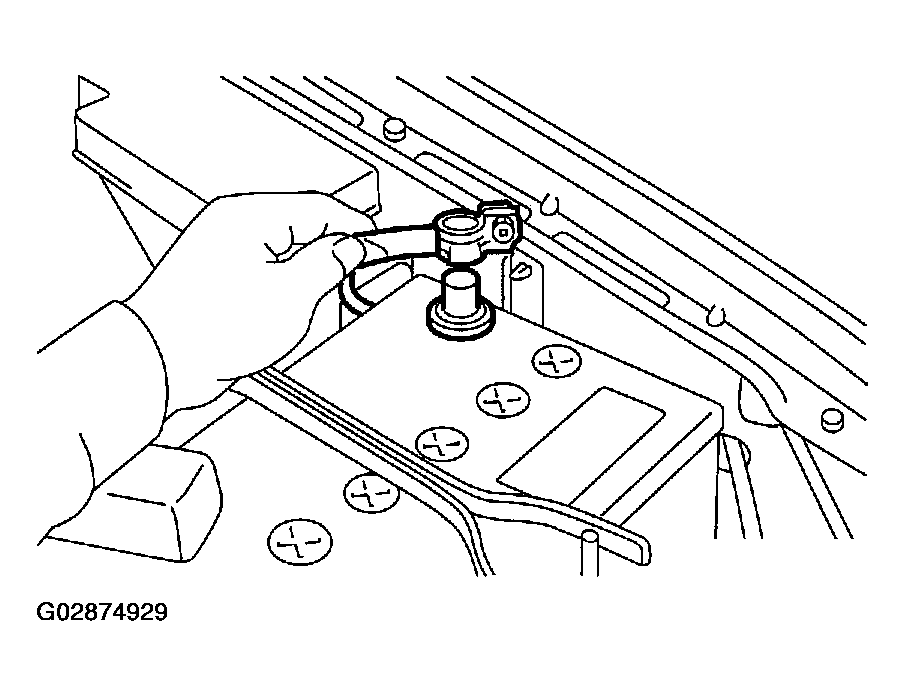

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove two bolts which install washer tank on body.

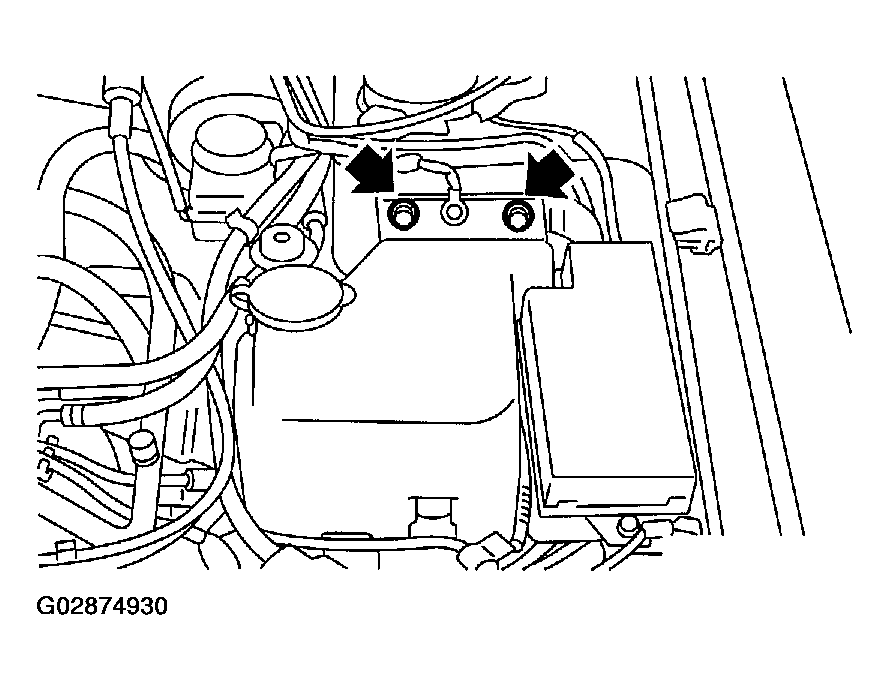

Fig 2: Removing Two Washer Tank Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from front window washer motor.
Disconnect connector from rear gate glass washer motor.

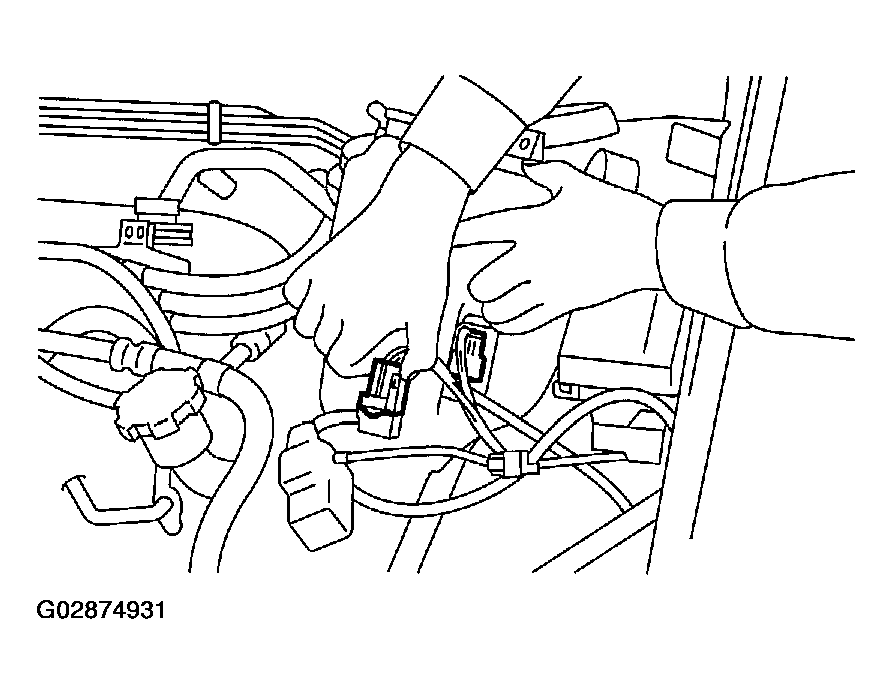

Fig 3: Disconnecting Connector From Rear Gate Glass Washer Motor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.
Move washer tank, and secure it away from working area.

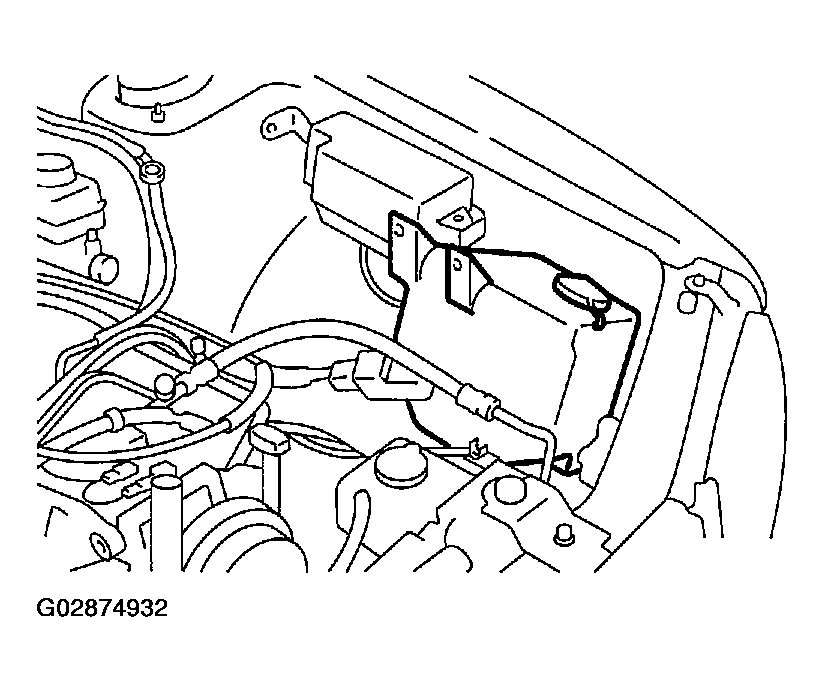

Fig 4: Moving Washer Tank
Courtesy of SUBARU OF AMERICA, INC.
Remove spark plug cords from spark plugs (#2 and #4 cylinders).

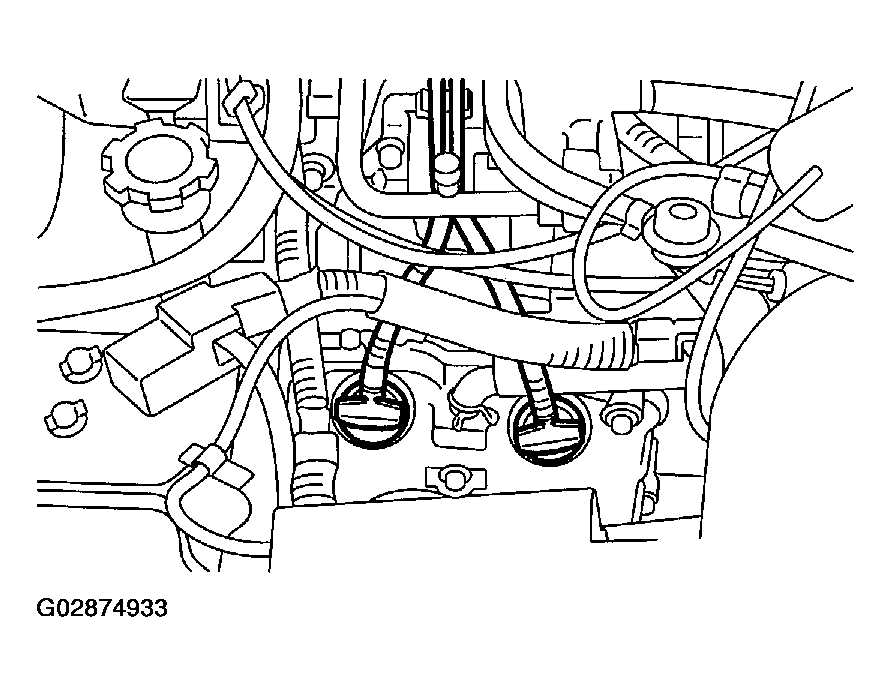

Fig 5: Removing Spark Plug Cords From Spark Plugs
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel pipe protector LH.

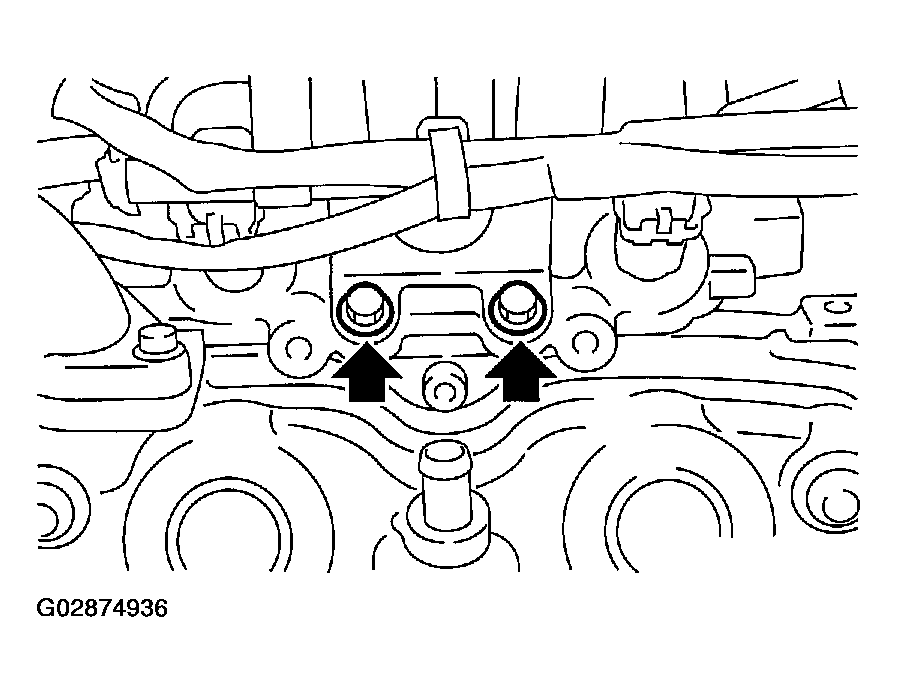

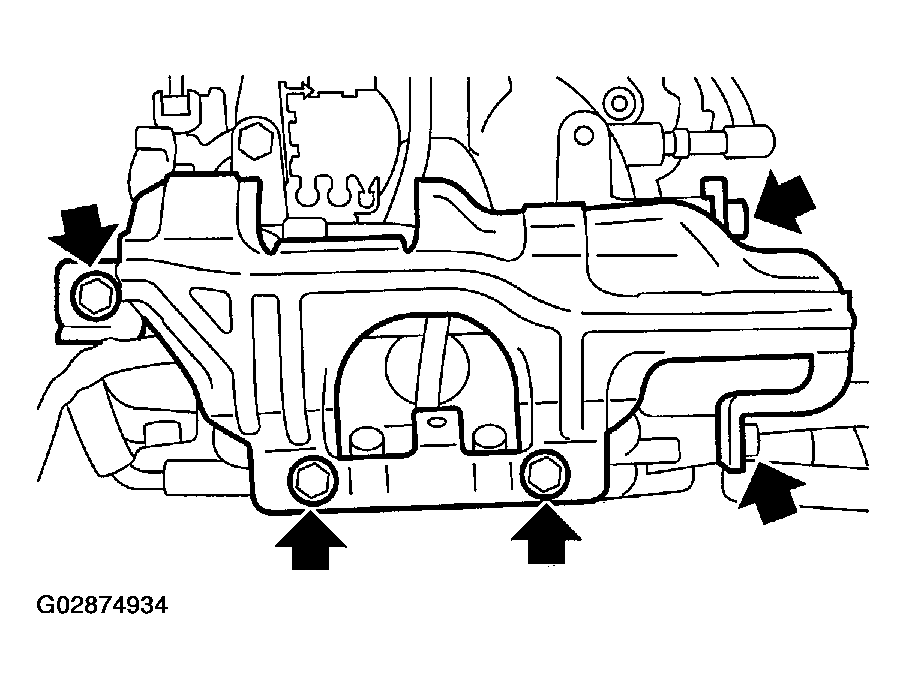

Fig 6: Removing Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from fuel injector.

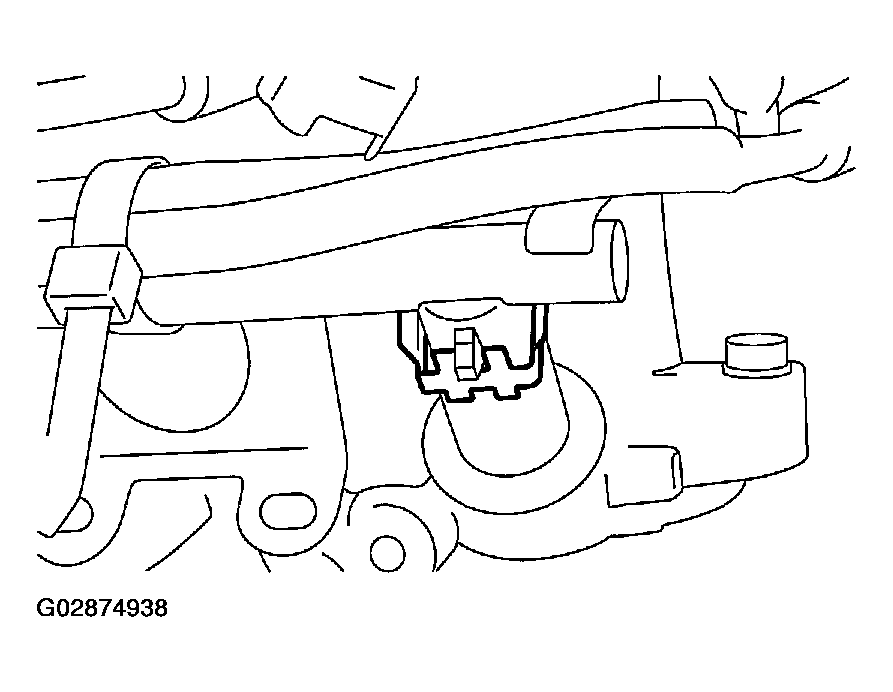

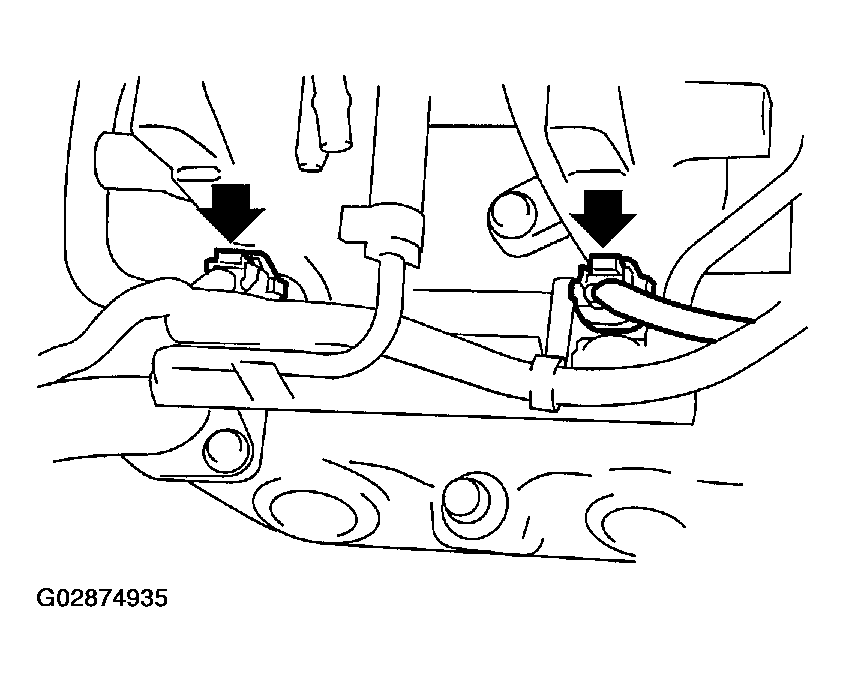

Fig 7: Disconnecting Connector From Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which holds injector pipe to intake manifold.

Fig 8: Removing Bolt Holding Injector Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which holds fuel pipe on the left side intake manifold.

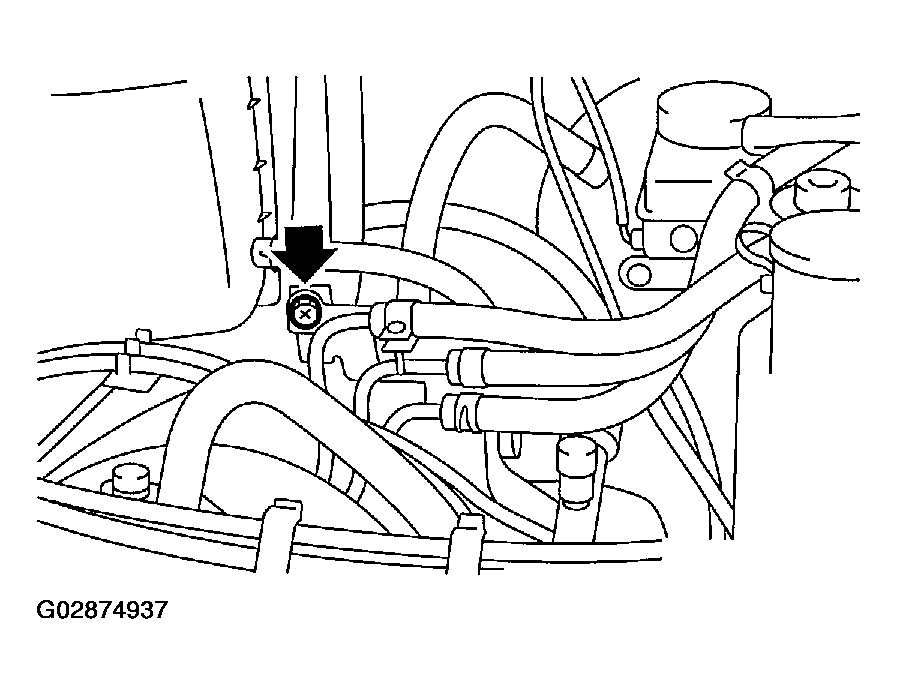

Fig 9: Removing Bolt Holding Fuel Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel injector from intake manifold.
1. Remove fuel injector securing clip.

  Fig 10: Removing Fuel Injector Securing Clip
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove fuel injector while lifting up fuel injector pipe.

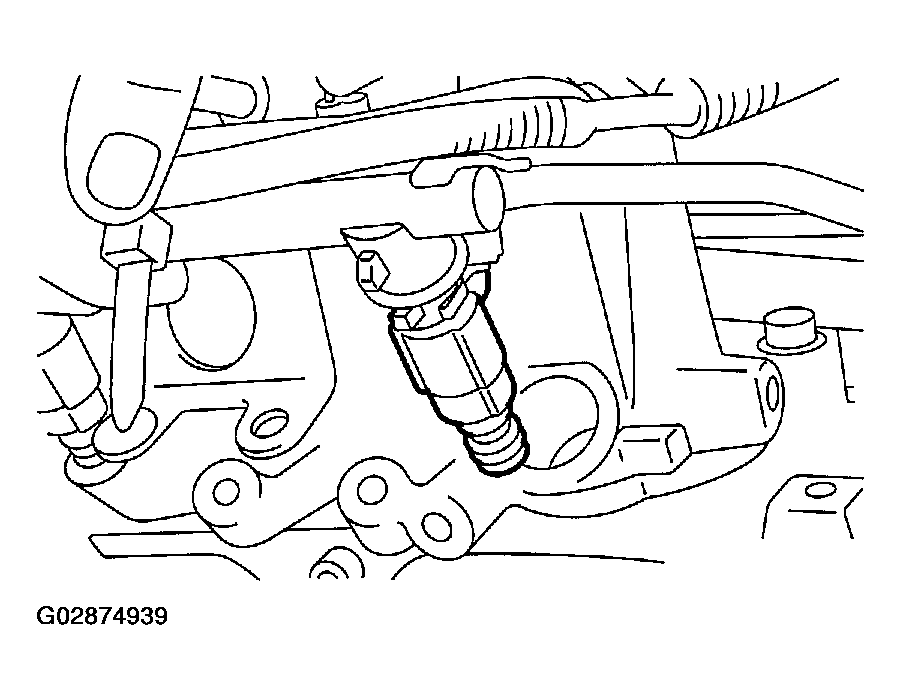

Fig 11: Removing Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
