Fuel Level Sensor: Installation

Install in the reverse order of removal.

WARNING:
  • Ground cable must be connected.
  • Spark may occur and ignite if fuel is nearby.

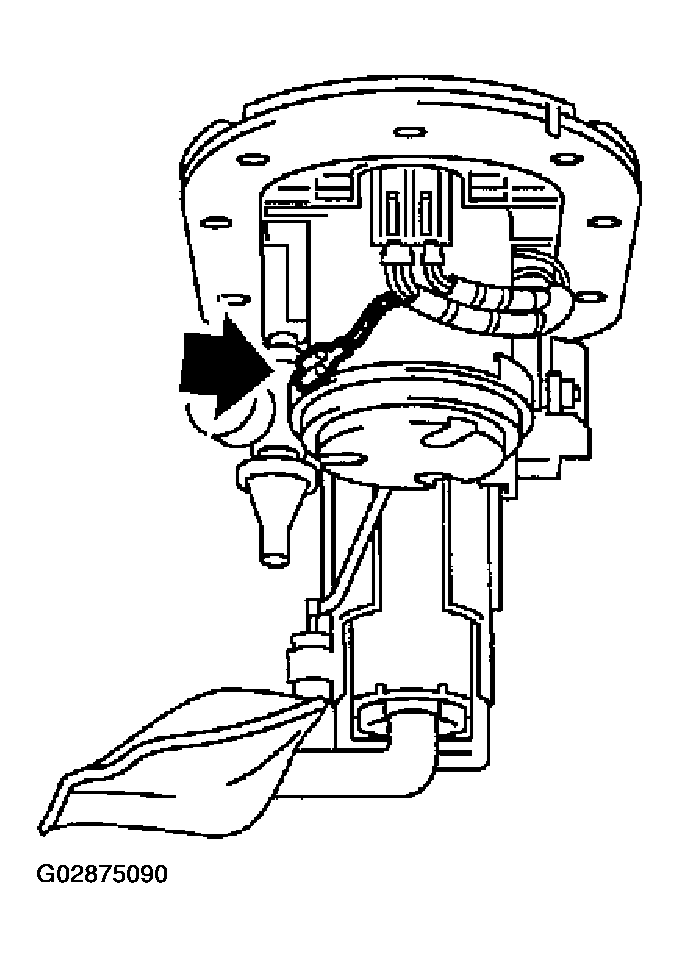

Fig 1: Installing Connector From Fuel Pump Bracket
G02875090Courtesy of SUBARU OF AMERICA, INC.
